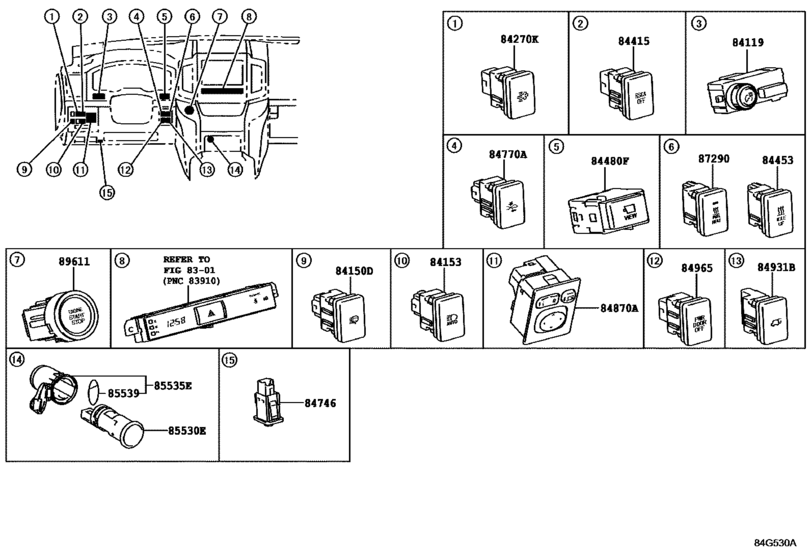

Switch & Relay & Computer ([08.2015 - ] INSTRUMENT PANEL 1/2 (1508- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2012 - 2018
- Sales region
- Europe
- Frame
- URJ202
- grade
- VX
- ENGINE
- 1URFE
- Model
- LAND CRUISER 200
- From
- 01.2012
- Seating Capacity
- 05S
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-60140 Rheostat, Light Control[01.2012 - 08.2015] URJ202,VDJ200 |
84119-60140 |
from US $75.71 |
||
|
84150D
|
84150D
84150-33050 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [01.2012 - 11.2014] URJ202,VDJ200 |
84150-33050 |
from US $39.75 |
||
| replacement | |||||
|
84150D
|
84150D
84150-33051 Switch Assy, Headlamp Cleaner[01.2012 - 11.2014] URJ202,VDJ200 |
84150-33051 |
from US $38.44 |
||
|
84150D
|
84150D
84150-33051 Switch Assy, Headlamp Cleaner[12.2014 - 08.2015] URJ202,VDJ200 |
84150-33051 |
from US $38.44 |
||
|
84150D
|
84150D
84150-33071 Switch Assy, Headlamp Cleaner[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD; URJ202,VDJ200..05S..VX HEADLAMP CLEANER-WITHOUT |
84150-33071 |
from US $35.96 |
||
|
84153
|
84153
84153-60040 Switch, Auto High Beam[08.2015 -] URJ202;VDJ200..RHD..VX HEADLAMP LEVELING DEVICE-WITH(AUTO) & WITH(*AHB) |
84153-60040 |
US $47.76 |
||
|
84415
|
84415
84415-60040 Switch, Curtain Airbag Cutoff[01.2012 - 11.2014] URJ202,VDJ200 |
84415-60040 |
US $39.75 |
||
| replacement | |||||
|
84415
|
84415
84415-60041 Switch, Curtain Airbag Cutoff[01.2012 - 11.2014] URJ202,VDJ200 |
84415-60041 |
US $39.60 |
||
|
84415
|
84415
84415-60041 Switch, Curtain Airbag Cutoff[12.2014 - 08.2015] URJ202,VDJ200 |
84415-60041 |
US $39.60 |
||
|
84415
|
84415
84415-60110
Switch, Curtain Airbag Cutoff
[08.2015 - 08.2017] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
84415-60110 |
— | ||
|
84480F
|
84480F
84480-60130 Switch Assy, Main[01.2012 - 08.2015] URJ202..08S;VDJ200..LHD CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE); URJ202..05S;VDJ200..RHD BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE) |
84480-60130 |
from US $36.84 |
||
|
84480F
|
84480F
84480-60160 Switch Assy, Main[08.2015 -] URJ202..08S;VDJ200..LHD CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR); URJ202..05S;VDJ200..RHD..VX BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
84480-60160 |
from US $34.94 |
||
|
84746
|
84746
84746-50010 Switch, Tire Pressure Warning[08.2015 - 08.2016] URJ202 BELGIUM SPEC; URJ202 CANARY ISLANDS SPEC; URJ202 ITALY OR NETHERLAND SPEC; URJ202 GERMANY SPEC; URJ202 SWITZERLAND SPEC; URJ202 NORWAY,DENMARK,SWEDEN,FINLAND SPEC; URJ202 FRANCE OR SPAIN SPEC; URJ202..08S RUMANIA SPEC; URJ202 AU |
84746-50010 |
US $32.85 |
||
|
84770A
|
84770A
84770-60020 Switch Assy, Pre-Collision System Cancel[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE |
84770-60020 |
US $35.96 |
||
|
84870A
|
84870A
84870-60180-A0 Switch Assy, Outer Mirror[01.2012 - 08.2015] URJ202,VDJ200 SHELL,TRIM0# |
84870-60180-A0 |
from US $64.65 |
||
|
84870A
|
84870A
84870-60180-C0 Switch Assy, Outer Mirror[01.2012 - 08.2015] VDJ200 BLACK,TRIM1#,2#; URJ202 BLACK,TRIM2# |
84870-60180-C0 |
US $76.35 |
||
|
84870A
|
84870A
84870-60200 Switch Assy, Outer Mirror[08.2015 - 08.2017] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
84870-60200 |
US $76.35 |
||
|
84931B
|
84931B
84930-48101 Switch Assy, Door Control[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD TAILGATE DOOR EASY CLOSER-WITH |
84930-48101 |
US $53.66 |
||
|
84931B
|
84931B
84930-60060
Switch, Door Control
[01.2012 - 11.2014] URJ202,VDJ200 TAILGATE DOOR EASY CLOSER-WITH |
84930-60060 |
— | ||
| replacement | |||||
|
84931B
|
84931B
84930-60061 Switch, Door Control[01.2012 - 11.2014] URJ202,VDJ200 TAILGATE DOOR EASY CLOSER-WITH |
84930-60061 |
US $36.84 |
||
|
84931B
|
84931B
84930-60061 Switch, Door Control[12.2014 - 08.2015] URJ202,VDJ200 TAILGATE DOOR EASY CLOSER-WITH |
84930-60061 |
US $36.84 |
||
|
84965
|
84965
84962-28010 Switch, Power Slide Door Main[01.2012 - 11.2014] URJ202,VDJ200 TAILGATE DOOR EASY CLOSER-WITH |
84962-28010 |
US $34.36 |
||
| replacement | |||||
|
84965
|
84965
84962-28011 Switch, Power Slide Door Main[01.2012 - 11.2014] URJ202,VDJ200 TAILGATE DOOR EASY CLOSER-WITH |
84962-28011 |
US $46.66 |
||
|
84965
|
84965
84962-28011 Switch, Power Slide Door Main[12.2014 - 08.2015] URJ202,VDJ200 TAILGATE DOOR EASY CLOSER-WITH |
84962-28011 |
US $46.66 |
||
|
84965
|
84965
84962-42021 Switch, Power Back Door Main[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD TAILGATE DOOR EASY CLOSER-WITH |
84962-42021 |
US $61.71 |
||
|
85530E
|
85530E
85530-42010 Socket Assy, Power Outlet, No.1[01.2012 - 08.2015] URJ202,VDJ200 |
85530-42010 |
from US $26.60 |
||
|
85535E
|
85535E
85535-48120-C0 Cover, Power Outlet Socket, No.2POWER OUTLET SOCKET [01.2012 - 08.2015] URJ202,VDJ200..LHD BLACK |
85535-48120-C0 |
from US $4.69 |
||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[01.2012 - 08.2015] URJ202,VDJ200 |
85539-60020 |
US $1.41 |
||
|
89611
|
89611
89611-42011 Switch, Push Start[08.2015 - 04.2016] URJ202,VDJ200 |
89611-42011 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-42012 Switch, Push Start[08.2015 - 04.2016] URJ202,VDJ200 |
89611-42012 |
from US $145.44 |
||
|
89611
|
89611
89611-42012 Switch, Push Start[05.2016 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
89611-42012 |
from US $145.44 |
||
|
89611
|
89611
89611-52013 Switch, Push Start[01.2012 - 02.2012] URJ202,VDJ200 |
89611-52013 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[01.2012 - 02.2012] URJ202,VDJ200 |
89611-52015 |
from US $167.90 |
||
|
89611
|
89611
89611-52014
Switch, Push Start
[02.2012 - 08.2015] URJ202,VDJ200 |
89611-52014 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[02.2012 - 08.2015] URJ202,VDJ200 |
89611-52015 |
from US $167.90 |
||
