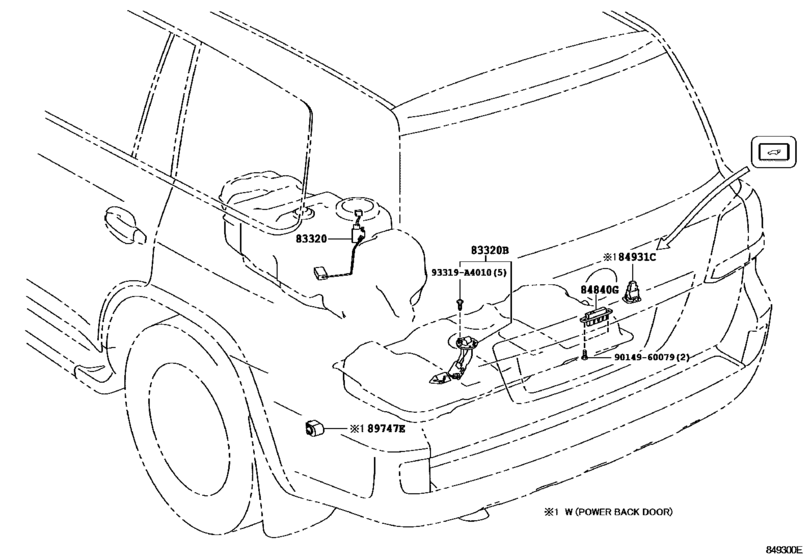

Switch & Relay & Computer ([09.2007 - 08.2015] FLOOR & BACK DOOR (0709-1508)) Diagram Toyota LAND CRUISER
- Year
- 2012 - 2018
- Sales region
- Europe
- Frame
- URJ202
- grade
- VX
- ENGINE
- 1URFE
- Model
- LAND CRUISER 200
- From
- 01.2012
- Seating Capacity
- 05S
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-60580 Gage Assy, Fuel SenderFUEL SENDER [01.2012 - 08.2015] URJ202,VDJ200 |
83320-60580 |
from US $99.59 |
||
|
83320
|
83320
83320-60690 Gage Assy, Fuel Sender[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
83320-60690 |
US $45.75 |
||
|
83320B
|
83320B
83320-69545 Gage Assy, Fuel Sender, No.2[08.2015 -] VDJ200..RHD..VX;VDJ200..05S..VX FUEL TANK-WITH(SUB TANK); URJ202 FUEL TANK-WITH(SUB TANK) |
83320-69545 |
from US $109.36 |
||
|
84840G
|
84840G
84840-28040 Switch Assy, Back Door Opener[01.2012 - 08.2015] URJ202,VDJ200 |
84840-28040 |
from US $64.60 |
||
|
84931C
|
84931C
84930-28150 Switch Assy, Door Control[01.2012 - 08.2015] URJ202,VDJ200 TAILGATE DOOR EASY CLOSER-WITH |
84930-28150 |
from US $42.51 |
||
|
84931C
|
84931C
84930-60090 Switch, Back Door ControlBACK DOOR CONTROL [08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD TAILGATE DOOR EASY CLOSER-WITH |
84930-60090 |
from US $44.69 |
||
|
89747E
|
89747E
89747-52010 Buzzer, Wireless Door Lock[01.2012 - 08.2015] URJ202,VDJ200 TAILGATE DOOR EASY CLOSER-WITH |
89747-52010 |
from US $29.60 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.72 |
||
|
9014960079
|
9014960079
90149-60079 SCREW |
90149-60079 |
US $1.44 |
