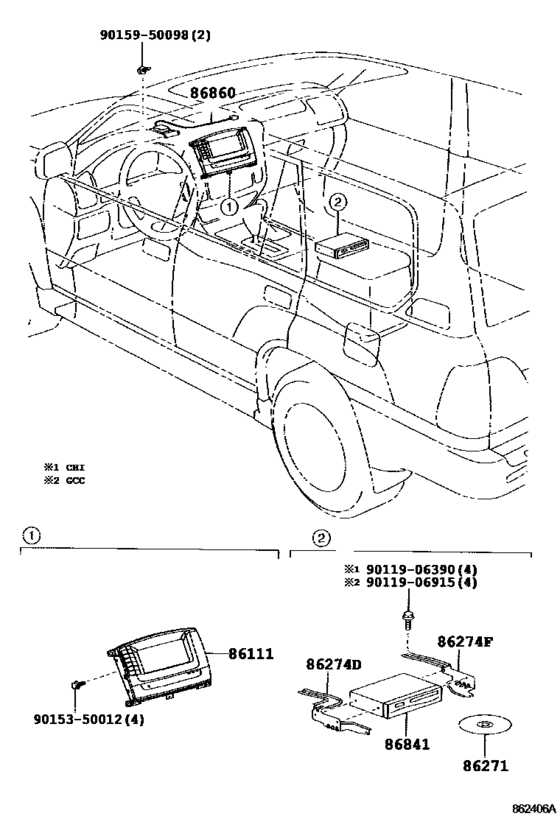

Navigation & Front Monitor Display ([05.2005 - ] EMV & NAVIGATION SYSTEM (0501- )VX..CHI ; (0505- )UZJ100..GCC) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- General
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86111
|
86111
86111-60240
Multi-Display
[05.2005 - 08.2007] UZJ100..GCC DENSO |
86111-60240 |
— | ||
|
86271
|
86271
86271-33060
Disc, Disc Player
[08.2005 - 07.2006] UZJ100..GCC |
86271-33060 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-24033
DISC SET DVD-ROM
[08.2005 - 07.2006] UZJ100..GCC |
86807-24033 |
— | ||
|
86271
|
86271
86271-33061
Disc, Disc Player
[07.2006 -] UZJ100..GCC |
86271-33061 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-24033
DISC SET DVD-ROM
[07.2006 -] UZJ100..GCC |
86807-24033 |
— | ||
|
86271
|
86271
86271-50871
Disc, Disc Player
[05.2005 - 08.2005] UZJ100..GCC |
86271-50871 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-24033
DISC SET DVD-ROM
[05.2005 - 08.2005] UZJ100..GCC |
86807-24033 |
— | ||
|
86274D
|
86274D
86274-60240 Bracket, Disc Player[05.2005 - 07.2005] UZJ100..GCC |
86274-60240 |
US $14.56 |
||
|
86274F
|
86274F
86274-60250 Bracket, Disc Player, No.2[05.2005 - 07.2005] UZJ100..GCC |
86274-60250 |
US $13.69 |
||
|
86841
|
86841
86841-50110 Computer, NavigationNAVIGATION [05.2005 -] UZJ100..GCC |
86841-50110 |
US $3,380.83 |
||
|
86860
|
86860
86860-60080
Antenna Assy, Navigation
[05.2005 -] UZJ100..GCC |
86860-60080 |
— | ||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9015350012
|
9015350012
90153-50012 SCREW CROSSRECESS |
90153-50012 |
US $0.51 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
