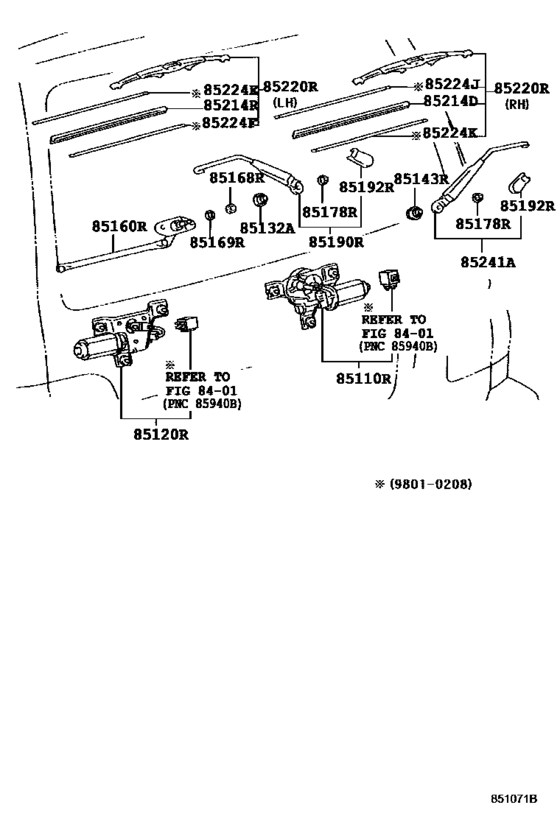

Rear Wiper ([01.1998 - ] DOUBLE-LEAF DOOR (9801- )SOB) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- General
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110R
|
85110R
85130-60210 Motor Assy, Rear WiperREAR WIPER [08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
85130-60210 |
US $308.67 |
||
|
85120R
|
85120R
85080-60190
Motor And Bracket Assy, Rear Wiper
[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
85080-60190 |
— | ||
|
85132A
|
85132A
85132-28040 Cover, Rear Wiper Shaft[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
85132-28040 |
from US $2.30 |
||
|
85143R
|
85143R
85143-60110 Grommet, Rear Wiper Motor[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
85143-60110 |
from US $2.46 |
||
|
85160R
|
85160R
85170-60100 Link Assy, Rear WiperREAR WIPER [08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
85170-60100 |
from US $109.20 |
||
|
85168R
|
85168R
85168-95700 Nut, Windshield Wiper Link Pivot[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
85168-95700 |
from US $3.80 |
||
|
85169R
|
85169R
85134-60120 Washer, Rear Wiper Link Pivot, No.1REAR WIPER LINK PIVOT, NO.1 [08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
85134-60120 |
US $3.35 |
||
|
85178R
|
85178R
90179-06158 Nut, Rear Wiper Link Pivot, No.2[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
90179-06158 |
from US $0.98 |
||
|
85190R
|
85190R
85241-60080 Arm Assy, Rear WiperREAR WIPER [08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
85241-60080 |
from US $37.71 |
||
|
85192R
|
85192R
85192-13060 Cover, Rear Wiper Arm[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
85192-13060 |
from US $5.25 |
||
|
85214D
|
85214D
85214-10100 Rubber, Rear Wiper[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
85214-10100 |
from US $8.46 |
||
|
85214R
|
85214R
85214-30280 Rubber, Rear Wiper[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
85214-30280 |
from US $7.22 |
||
|
85220R
|
85220R
85242-30040 Blade Assy, Rear Wiper[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..SOB LH |
85242-30040 |
from US $16.13 |
||
|
85220R
|
85220R
85242-60050 Blade Assy, Rear Wiper[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..SOB RH; FZJ10#,HDJ100,HZJ105,UZJ100..LUB..(ARL,GCC,GEN) |
85242-60050 |
from US $23.07 |
||
|
85241A
|
85241A
85241-60090 Arm, Rear WiperREAR WIPER [08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
85241-60090 |
from US $38.75 |
