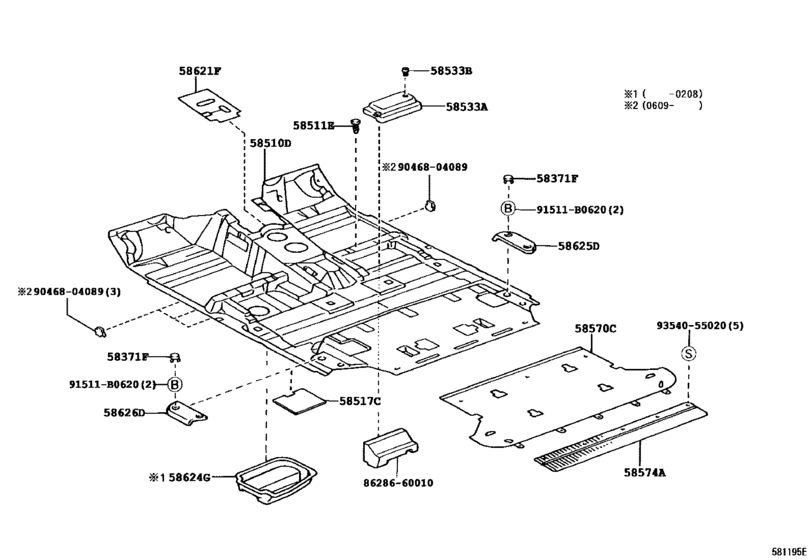

Floor Mat & Silencer Pad ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58371F
|
58371F
58371-60100-A1 Cover, Rear Floor Step, No.1[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
58371-60100-A1 |
US $5.38 |
||
| replacement | |||||
|
58371F
|
58371F
58371-60100-B1 Cover, Rear Floor Step, No.1 (Gray)[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
58371-60100-B1 |
US $5.38 |
||
|
58371F
|
58371F
58371-60100-B1 Cover, Rear Floor Step, No.1 (Gray)[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
58371-60100-B1 |
US $5.38 |
||
|
58510D
|
58510D
58510-6C151-A1 Carpet Assy, Floor, FrontFLOOR, FRONT [08.2002 - 08.2003] UZJ100 IVORY,TRIM0# |
58510-6C151-A1 |
US $1,233.23 |
||
| replacement | |||||
|
58510D
|
58510D
58510-60Y10-A0
Carpet Assy, Floor, Front
[08.2002 - 08.2003] UZJ100 IVORY,TRIM0# |
58510-60Y10-A0 |
— | ||
|
58510D
|
58510D
58510-6C151-B1 Carpet Assy, Floor, FrontFLOOR, FRONT [08.2002 - 08.2003] UZJ100 STONE,TRIM1# |
58510-6C151-B1 |
US $1,233.23 |
||
| replacement | |||||
|
58510D
|
58510D
58510-60Y10-B0
Carpet Assy, Floor, Front
[08.2002 - 08.2003] UZJ100 STONE,TRIM1# |
58510-60Y10-B0 |
— | ||
|
58510D
|
58510D
58510-6C152-A1
Carpet Assy, Floor, Front
[08.2003 - 01.2004] UZJ100 IVORY,TRIM0# |
58510-6C152-A1 |
— | ||
| replacement | |||||
|
58510D
|
58510D
58510-60Y10-A0
Carpet Assy, Floor, Front
[08.2003 - 01.2004] UZJ100 IVORY,TRIM0# |
58510-60Y10-A0 |
— | ||
|
58510D
|
58510D
58510-6C152-B1 Carpet Assy, Floor, FrontFLOOR, FRONT [08.2003 - 01.2004] UZJ100 STONE,TRIM1# |
58510-6C152-B1 |
US $1,233.23 |
||
| replacement | |||||
|
58510D
|
58510D
58510-60Y10-B0
Carpet Assy, Floor, Front
[08.2003 - 01.2004] UZJ100 STONE,TRIM1# |
58510-60Y10-B0 |
— | ||
|
58510D
|
58510D
58510-6C153-A1
Carpet Assy, Floor, Front
[02.2004 - 05.2005] UZJ100 IVORY,TRIM0# |
58510-6C153-A1 |
— | ||
| replacement | |||||
|
58510D
|
58510D
58510-60Y10-A0
Carpet Assy, Floor, Front
[02.2004 - 05.2005] UZJ100 IVORY,TRIM0# |
58510-60Y10-A0 |
— | ||
|
58510D
|
58510D
58510-6C153-B1 Carpet Assy, Floor, FrontFLOOR, FRONT [02.2004 - 05.2005] UZJ100 STONE,TRIM1# |
58510-6C153-B1 |
US $1,236.14 |
||
| replacement | |||||
|
58510D
|
58510D
58510-60Y10-B0
Carpet Assy, Floor, Front
[02.2004 - 05.2005] UZJ100 STONE,TRIM1# |
58510-60Y10-B0 |
— | ||
|
58511E
|
58511E
90467-07158-A1 Clip(For Front Floor Mat)[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
90467-07158-A1 |
US $2.04 |
||
|
58511E
|
58511E
90467-07158-B2 Clip(For Front Floor Mat)[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
90467-07158-B2 |
US $2.04 |
||
|
58517C
|
58517C
58517-60030 Pad, Front Floor Mat[08.2002 - 05.2005] UZJ100 |
58517-60030 |
US $24.32 |
||
|
58533A
|
58533A
58533-60030-A1 Cover, Floor Carpet, Center Rh[08.2002 - 03.2003] UZJ100 IVORY,TRIM0# |
58533-60030-A1 |
US $62.17 |
||
| replacement | |||||
|
58533A
|
58533A
58533-60031-A1 Cover, Floor Carpet, Center Rh[08.2002 - 03.2003] UZJ100 IVORY,TRIM0# |
58533-60031-A1 |
US $62.32 |
||
|
58533A
|
58533A
58533-60030-B1 Cover, Floor Carpet, Center Rh[08.2002 - 03.2003] UZJ100 STONE,TRIM1# |
58533-60030-B1 |
US $62.17 |
||
| replacement | |||||
|
58533A
|
58533A
58533-60031-B1
Cover, Floor Carpet, Center Rh
[08.2002 - 03.2003] UZJ100 STONE,TRIM1# |
58533-60031-B1 |
— | ||
|
58533A
|
58533A
58533-60031-A1 Cover, Floor Carpet, Center Rh[03.2003 - 05.2005] UZJ100 IVORY,TRIM0# |
58533-60031-A1 |
US $62.32 |
||
|
58533A
|
58533A
58533-60031-B1
Cover, Floor Carpet, Center Rh
[03.2003 - 05.2005] UZJ100 STONE,TRIM1# |
58533-60031-B1 |
— | ||
|
58533B
|
58533B
90467-04017-A0 Clip(For Floor Carpet Cover)[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
90467-04017-A0 |
US $1.09 |
||
|
58533B
|
58533B
90467-04017-B2 Clip(For Floor Carpet Cover)[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
90467-04017-B2 |
US $2.04 |
||
|
58570C
|
58570C
58570-60770-A1 Carpet Assy, Rear Floor[08.2002 - 01.2004] UZJ100 IVORY,TRIM0# |
58570-60770-A1 |
US $780.42 |
||
| replacement | |||||
|
58570C
|
58570C
58570-60771-A1
Carpet Assy, Rear Floor
[08.2002 - 01.2004] UZJ100 IVORY,TRIM0# |
58570-60771-A1 |
— | ||
|
58570C
|
58570C
58570-60770-B1
Carpet Assy, Rear Floor
[08.2002 - 01.2004] UZJ100 STONE,TRIM1# |
58570-60770-B1 |
— | ||
| replacement | |||||
|
58570C
|
58570C
58570-60771-B1
Carpet Assy, Rear Floor
[08.2002 - 01.2004] UZJ100 STONE,TRIM1# |
58570-60771-B1 |
— | ||
|
58570C
|
58570C
58570-60771-A1
Carpet Assy, Rear Floor
[02.2004 - 05.2005] UZJ100 IVORY,TRIM0# |
58570-60771-A1 |
— | ||
|
58570C
|
58570C
58570-60771-B1
Carpet Assy, Rear Floor
[02.2004 - 05.2005] UZJ100 STONE,TRIM1# |
58570-60771-B1 |
— | ||
|
58574A
|
58574A
58574-60040-A1
Plate, Rear Floor Mat Support, Rear
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
58574-60040-A1 |
— | ||
| replacement | |||||
|
58574A
|
58574A
58574-60100-B1 Plate, Rear Floor Mat Support, Rear (Gray)[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
58574-60100-B1 |
from US $201.28 |
||
|
58574A
|
58574A
58574-60040-B1
Plate, Rear Floor Mat Support, Rear
[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
58574-60040-B1 |
— | ||
| replacement | |||||
|
58574A
|
58574A
58574-60100-B1 Plate, Rear Floor Mat Support, Rear (Gray)[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
58574-60100-B1 |
from US $201.28 |
||
|
58621F
|
58621F
58621-60110 Silencer, Center Console, No.1[08.2002 - 05.2005] UZJ100 |
58621-60110 |
US $6.41 |
||
|
58625D
|
58625D
58625-60020-A1 Plate, Rear Floor Mat, No.1[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
58625-60020-A1 |
US $41.64 |
||
| replacement | |||||
|
58625D
|
58625D
58625-60020-B1 Plate, Rear Floor Mat, No.1[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
58625-60020-B1 |
US $40.54 |
||
|
58625D
|
58625D
58625-60020-B1 Plate, Rear Floor Mat, No.1[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
58625-60020-B1 |
US $40.54 |
||
|
58626D
|
58626D
58626-60020-A1
Plate, Rear Floor Mat, No.2
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
58626-60020-A1 |
— | ||
| replacement | |||||
|
58626D
|
58626D
58626-60020-B1 Plate, Rear Floor Mat, No.2[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
58626-60020-B1 |
US $40.54 |
||
|
58626D
|
58626D
58626-60020-B1 Plate, Rear Floor Mat, No.2[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
58626-60020-B1 |
US $40.54 |
||
|
91511B0620
|
91511B0620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.72 |
||
|
8628660010
|
8628660010
86286-60010
Bracket, Amplifier, No.2
|
86286-60010 |
— | ||
|
9046804089
|
9046804089
90468-04089 Clip, Roof Headlining |
90468-04089 |
US $2.87 |
||
|
9354055020
|
9354055020
93540-55020 SCREW |
93540-55020 |
from US $1.09 |
||
