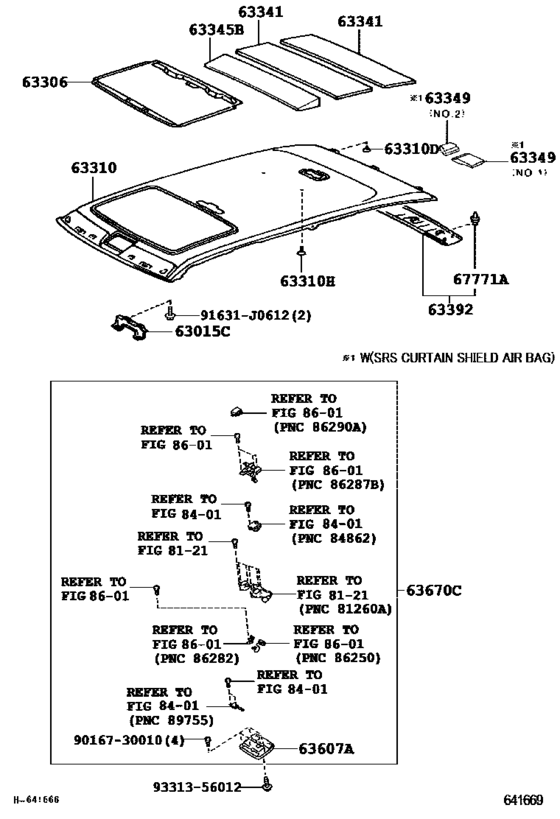

Roof Headlining & Silencer Pad ([08.2002 - ] (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63015C
|
63015C
63183-60030
Bracket Sub-Assy, Roof Console
[08.2002 - 05.2005] UZJ100 |
63183-60030 |
— | ||
|
63306
|
63306
63306-60101-A1
Trim Sub-Assy, Sunshade
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
63306-60101-A1 |
— | ||
| replacements | |||||
|
63306
|
63306
63306-60190-A0
Trim Sub-Assy, Sunshade
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
63306-60190-A0 |
— | ||
|
63306
|
63306
63306-60102-A1
Trim Sub-Assy, Sunshade
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
63306-60102-A1 |
— | ||
|
63306
|
63306
63306-60101-B2 Trim Sub-Assy, Sunshade[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
63306-60101-B2 |
US $495.04 |
||
| replacement | |||||
|
63306
|
63306
63306-60102-B2 Trim Sub-Assy, Sunshade[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
63306-60102-B2 |
US $495.04 |
||
|
63306
|
63306
63306-60102-B2 Trim Sub-Assy, Sunshade[06.2007 - 08.2007] UZJ100 STONE,TRIM1# |
63306-60102-B2 |
US $495.04 |
||
|
63306
|
63306
63306-60190-A0
Trim Sub-Assy, Sunshade
[06.2007 - 08.2007] UZJ100 IVORY,TRIM0# |
63306-60190-A0 |
— | ||
|
63310
|
63310
63310-60651-A1
Headlining Assy, Roof
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
63310-60651-A1 |
— | ||
| replacement | |||||
|
63310
|
63310
63310-60B90-A0
Headlining Assy, Roof
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
63310-60B90-A0 |
— | ||
|
63310
|
63310
63310-60651-B1 Headlining Assy, RoofROOF [08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
63310-60651-B1 |
US $1,068.70 |
||
| replacement | |||||
|
63310
|
63310
63310-60B90-B0 Headlining Assy, Roof[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
63310-60B90-B0 |
US $1,068.70 |
||
|
63310
|
63310
63310-6A080-A0 Headlining Assy, RoofROOF [08.2002 - 05.2005] UZJ100 W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0# |
63310-6A080-A0 |
US $1,068.70 |
||
|
63310
|
63310
63310-6A080-B0
Headlining Assy, Roof
[08.2002 - 05.2005] UZJ100 W(SRS CURTAIN SHIELD AIR BAG),STONE,TRIM1# |
63310-6A080-B0 |
— | ||
|
63310D
|
63310D
90467-05021-C0 Clip (For Center Pillar Garnish Panel, Upper)[08.2002 - 05.2005] UZJ100 BLACK,TRIM0#,1# |
90467-05021-C0 |
from US $1.09 |
||
|
63310H
|
63310H
90467-06048-A2 Clip(For Deck Boad)[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
90467-06048-A2 |
from US $0.86 |
||
|
63310H
|
63310H
90467-06048-P2 Clip(For Roof Headlining)[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
90467-06048-P2 |
US $2.04 |
||
|
63341
|
63341
63342-60061 Pad, Roof Silencer, No.1[08.2002 - 05.2005] UZJ100 |
63342-60061 |
US $14.15 |
||
|
63345B
|
63345B
63345-60030 Pad, Roof Silencer, Center[08.2002 - 05.2005] UZJ100 |
63345-60030 |
US $43.51 |
||
|
63349
|
63349
63349-60021 Pad, Roof Silencer, No.9[08.2002 - 05.2005] UZJ100 NO.1 |
63349-60021 |
US $6.12 |
||
|
63349
|
63349
63349-60040 Pad, Roof Silencer, No.9[08.2002 - 05.2005] UZJ100 NO.2 |
63349-60040 |
US $12.67 |
||
|
63392
|
63392
63392-60050-A2
Trim, Roof Headlining, Rear
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
63392-60050-A2 |
— | ||
| replacement | |||||
|
63392
|
63392
63392-60051-B2 Trim, Roof Headlining, Rear[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
63392-60051-B2 |
US $86.31 |
||
|
63392
|
63392
63392-60050-B2 Trim, Roof Headlining, Rear[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
63392-60050-B2 |
US $81.54 |
||
| replacement | |||||
|
63392
|
63392
63392-60051-B2 Trim, Roof Headlining, Rear[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
63392-60051-B2 |
US $86.31 |
||
|
63392
|
63392
63392-60051-A2 Trim, Roof Headlining, Rear[01.2007 - 08.2007] UZJ100 IVORY,TRIM0# |
63392-60051-A2 |
US $81.54 |
||
| replacement | |||||
|
63392
|
63392
63392-60051-B2 Trim, Roof Headlining, Rear[01.2007 - 08.2007] UZJ100 IVORY,TRIM0# |
63392-60051-B2 |
US $86.31 |
||
|
63392
|
63392
63392-60051-B2 Trim, Roof Headlining, Rear[01.2007 - 08.2007] UZJ100 STONE,TRIM1# |
63392-60051-B2 |
US $86.31 |
||
|
63607A
|
63607A
63607-60200-A0 Plate Sub-Assy, Map LampMAP LAMP [08.2002 - 07.2004] UZJ100 IVORY,TRIM0# |
63607-60200-A0 |
US $122.30 |
||
| replacement | |||||
|
63607A
|
63607A
63607-60201-A0 Plate Sub-Assy, Map LampMAP LAMP [08.2002 - 07.2004] UZJ100 IVORY,TRIM0# |
63607-60201-A0 |
US $122.30 |
||
|
63607A
|
63607A
63607-60200-B0 Plate Sub-Assy, Map LampMAP LAMP [08.2002 - 07.2004] UZJ100 STONE,TRIM1# |
63607-60200-B0 |
US $122.30 |
||
| replacement | |||||
|
63607A
|
63607A
63607-60201-B0 Plate Sub-Assy, Map LampMAP LAMP [08.2002 - 07.2004] UZJ100 STONE,TRIM1# |
63607-60201-B0 |
US $122.30 |
||
|
63607A
|
63607A
63607-60201-A0 Plate Sub-Assy, Map LampMAP LAMP [08.2004 - 05.2005] UZJ100 IVORY,TRIM0# |
63607-60201-A0 |
US $122.30 |
||
|
63607A
|
63607A
63607-60201-B0 Plate Sub-Assy, Map LampMAP LAMP [08.2004 - 05.2005] UZJ100 STONE,TRIM1# |
63607-60201-B0 |
US $122.30 |
||
|
63670C
|
63670C
63670-60231-A0
Plate Assy, Map Lamp
[08.2002 - 07.2004] UZJ100 IVORY,TRIM0# |
63670-60231-A0 |
— | ||
| replacement | |||||
|
63670C
|
63670C
63670-60232-A0 Plate Assy, Map LampMAP LAMP [08.2002 - 07.2004] UZJ100 IVORY,TRIM0# |
63670-60232-A0 |
US $650.83 |
||
|
63670C
|
63670C
63670-60231-B0
Plate Assy, Map Lamp
[08.2002 - 07.2004] UZJ100 STONE,TRIM1# |
63670-60231-B0 |
— | ||
| replacement | |||||
|
63670C
|
63670C
63670-60232-B0 Plate Assy, Map LampMAP LAMP [08.2002 - 07.2004] UZJ100 STONE,TRIM1# |
63670-60232-B0 |
US $650.83 |
||
|
63670C
|
63670C
63670-60232-A0 Plate Assy, Map LampMAP LAMP [08.2004 - 05.2005] UZJ100 IVORY,TRIM0# |
63670-60232-A0 |
US $650.83 |
||
|
63670C
|
63670C
63670-60232-B0 Plate Assy, Map LampMAP LAMP [08.2004 - 05.2005] UZJ100 STONE,TRIM1# |
63670-60232-B0 |
US $650.83 |
||
|
67771A
|
67771A
67771-89104 Clip (For Center Pillar Garnish Panel, Upper)[08.2002 - 05.2005] UZJ100 |
67771-89104 |
US $2.87 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $1.08 |
||
|
9331356012
|
9331356012
93313-56012 SCREW WWASHER |
93313-56012 |
US $0.96 |
||
