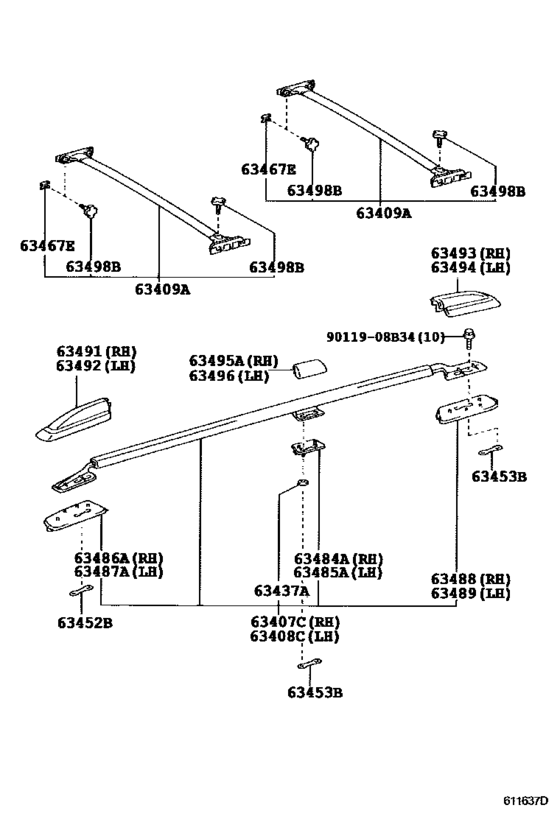

Roof Panel & Back Panel ([08.2002 - ] W(ROOF RAIL) (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63407C
|
63407C
63407-60080 Carrier Sub-Assy, Roof, RhROOF, RH [08.2002 - 05.2005] UZJ100 |
63407-60080 |
US $492.13 |
||
| replacement | |||||
|
63407C
|
63407C
63407-60081 Carrier Sub-Assy, Roof, RhROOF, RH [08.2002 - 05.2005] UZJ100 |
63407-60081 |
from US $492.13 |
||
|
63407C
|
63407C
63407-60081 Carrier Sub-Assy, Roof, RhROOF, RH [07.2005 - 08.2007] UZJ100 |
63407-60081 |
from US $492.13 |
||
|
63408C
|
63408C
63408-60070 Carrier Sub-Assy, Roof, LhROOF, LH [08.2002 - 05.2005] UZJ100 |
63408-60070 |
US $492.13 |
||
| replacement | |||||
|
63408C
|
63408C
63408-60071 Carrier Sub-Assy, Roof, LhROOF, LH [08.2002 - 05.2005] UZJ100 |
63408-60071 |
US $492.13 |
||
|
63408C
|
63408C
63408-60071 Carrier Sub-Assy, Roof, LhROOF, LH [07.2005 - 08.2007] UZJ100 |
63408-60071 |
US $492.13 |
||
|
63409A
|
63409A
63409-60050 Support Sub-Assy, Roof Rack, CenterROOF RACK, CENTER [08.2002 - 05.2005] UZJ100 |
63409-60050 |
US $244.61 |
||
| replacement | |||||
|
63409A
|
63409A
63409-60051 Support Sub-Assy, Roof Rack, CenterROOF RACK, CENTER [08.2002 - 05.2005] UZJ100 |
63409-60051 |
US $244.61 |
||
|
63409A
|
63409A
63409-60051 Support Sub-Assy, Roof Rack, CenterROOF RACK, CENTER [07.2005 - 08.2007] UZJ100 |
63409-60051 |
US $244.61 |
||
|
63437A
|
63437A
63437-60010 Seal, Roof Carrier, No.2[08.2002 - 05.2005] UZJ100 |
63437-60010 |
US $3.05 |
||
|
63452B
|
63452B
63452-60021 Reinforcement, Roof Rack, No.2[08.2002 - 05.2005] UZJ100 |
63452-60021 |
from US $4.54 |
||
|
63453B
|
63453B
63451-60031 Reinforcement, Roof Rack, No.3[08.2002 - 05.2005] UZJ100 W(ROOF RAIL) |
63451-60031 |
from US $4.54 |
||
|
63467E
|
63467E
63467-42010 Plate, Roof Rack, RearROOF RACK, REAR [08.2002 - 10.2002] UZJ100 |
63467-42010 |
US $6.41 |
||
| replacement | |||||
|
63467E
|
63467E
63467-42011 Plate, Roof Rack, RearROOF RACK, REAR [08.2002 - 10.2002] UZJ100 |
63467-42011 |
US $3.79 |
||
|
63467E
|
63467E
63467-42011 Plate, Roof Rack, RearROOF RACK, REAR [10.2002 - 05.2005] UZJ100 |
63467-42011 |
US $3.79 |
||
|
63484A
|
63484A
63484-60060 Cushion, Roof Rack Leg, Center RhROOF RACK LEG, CENTER RH [08.2002 - 05.2005] UZJ100 |
63484-60060 |
US $24.17 |
||
|
63485A
|
63485A
63485-60070 Cushion, Roof Rack Leg, Center LhROOF RACK LEG, CENTER LH [08.2002 - 05.2005] UZJ100 |
63485-60070 |
US $24.17 |
||
|
63486A
|
63486A
63486-60090
Cushion, Roof Rack Leg, Front Rh
[08.2002 - 05.2005] UZJ100 |
63486-60090 |
— | ||
|
63487A
|
63487A
63487-60070
Cushion, Roof Rack Leg, Front Lh
[08.2002 - 05.2005] UZJ100 |
63487-60070 |
— | ||
|
63488
|
63488
63488-60070
Cushion, Roof Rack Leg, Rear Rh
[08.2002 - 05.2005] UZJ100 |
63488-60070 |
— | ||
|
63489
|
63489
63489-60060
Cushion, Roof Rack Leg, Rear Lh
[08.2002 - 05.2005] UZJ100 |
63489-60060 |
— | ||
|
63491
|
63491
63491-60080 Cover, Roof Rack Leg, Front RhROOF RACK LEG, FRONT RH [08.2002 - 05.2005] UZJ100 |
63491-60080 |
US $98.40 |
||
|
63492
|
63492
63492-60060 Cover, Roof Rack Leg, Front LhROOF RACK LEG, FRONT LH [08.2002 - 05.2005] UZJ100 |
63492-60060 |
US $98.40 |
||
|
63493
|
63493
63493-60070 Cover, Roof Rack Leg, Rear RhROOF RACK LEG, REAR RH [08.2002 - 05.2005] UZJ100 |
63493-60070 |
US $95.12 |
||
|
63494
|
63494
63494-60060 Cover, Roof Rack Leg, Rear LhROOF RACK LEG, REAR LH [08.2002 - 05.2005] UZJ100 |
63494-60060 |
US $95.12 |
||
|
63495A
|
63495A
63495-60040 Cover, Roof Rack Leg, CenterROOF RACK LEG, CENTER [08.2002 - 05.2005] UZJ100 |
63495-60040 |
US $25.87 |
||
|
63496
|
63496
63496-60040 Cover, Roof Rack Leg, Center LhROOF RACK LEG, CENTER LH [08.2002 - 05.2005] UZJ100 |
63496-60040 |
US $25.87 |
||
|
63498B
|
63498B
63498-42010 Cap, Roof CarrierROOF CARRIER [08.2002 - 10.2002] UZJ100 |
63498-42010 |
US $9.90 |
||
| replacement | |||||
|
63498B
|
63498B
63498-42011 Cap, Roof CarrierROOF CARRIER [08.2002 - 10.2002] UZJ100 |
63498-42011 |
from US $6.33 |
||
|
63498B
|
63498B
63498-42011 Cap, Roof CarrierROOF CARRIER [10.2002 - 05.2005] UZJ100 |
63498-42011 |
from US $6.33 |
||
|
9011908B34
|
9011908B34
90119-08B34 Bolt w/washer |
90119-08B34 |
US $3.05 |
||
