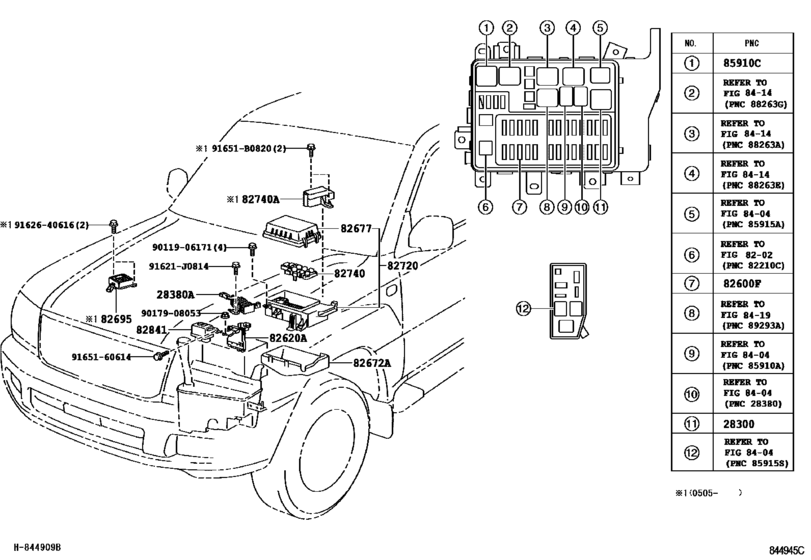

Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
90987-02025 Relay[08.2002 - 05.2005] 2UZFE..UZJ100 |
90987-02025 |
from US $49.22 |
||
|
28380A
|
28380A
23080-50061 Resister, Fuel Pump[08.2002 - 05.2005] 2UZFE..UZJ100 |
23080-50061 |
US $87.36 |
||
|
28380A
|
28380A
23080-50170
Resister, Fuel Pump
[05.2005 -] 2UZFE..UZJ100 |
23080-50170 |
— | ||
|
82600F
|
82600F
90982-09008 Fusible Link[08.2002 - 05.2005] UZJ100 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[08.2002 - 05.2005] UZJ100 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[08.2002 - 05.2005] UZJ100 15A,MINI FUSE |
90982-09010 |
from US $0.49 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.2002 - 05.2005] UZJ100 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[08.2002 - 05.2005] UZJ100 25A,MINI FUSE |
90982-09012 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[08.2002 - 05.2005] UZJ100 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82620A
|
82620A
82620-60030 Block Assy, Fusible Link[08.2002 - 05.2005] UZJ100 |
82620-60030 |
from US $36.68 |
||
|
82672A
|
82672A
82674-60010 Cover, Junction Block[08.2002 - 05.2005] UZJ100 |
82674-60010 |
from US $39.12 |
||
|
82677
|
82677
82677-60050
Cover, Junction Block, Upper No.2
[08.2002 - 05.2005] UZJ100 |
82677-60050 |
— | ||
|
82677
|
82677
82677-60051
Cover, Junction Block, Upper No.2
[05.2005 -] UZJ100 |
82677-60051 |
— | ||
|
82695
|
82695
82695-60030
Resistor, Daytime Running Light
[05.2005 -] UZJ100 |
82695-60030 |
— | ||
|
82720
|
82720
82720-60080
Block Assy, Engine Room Junction
[08.2002 - 05.2005] UZJ100 |
82720-60080 |
— | ||
| replacement | |||||
|
82720
|
82720
82720-60081
Engine Room Junction Block Assy
[08.2002 - 05.2005] UZJ100 |
82720-60081 |
— | ||
|
82720
|
82720
82720-60081
Engine Room Junction Block Assy
[05.2005 -] UZJ100 |
82720-60081 |
— | ||
|
82740
|
82740
82740-60020 Block Assy, Engine Room Relay[08.2002 - 05.2005] UZJ100 |
82740-60020 |
from US $47.27 |
||
|
82740A
|
82740A
82740-60040
Block Assy, Engine Room Relay, No.2
[05.2005 -] UZJ100 |
82740-60040 |
— | ||
|
82841
|
82841
82840-60020 Relay, Running Light Voltage ControlRUNNING LIGHT VOLTAGE CONTROL [08.2002 - 05.2005] UZJ100 |
82840-60020 |
US $101.92 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[08.2002 - 05.2005] UZJ100 |
90987-04010 |
from US $47.21 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.33 |
||
|
9017908053
|
9017908053
90179-08053 Nut (For Differential Side Gear Shaft) |
90179-08053 |
from US $1.44 |
||
|
9162640616
|
9162640616
91626-40616 New Genuine Part |
91626-40616 |
US $1.38 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
