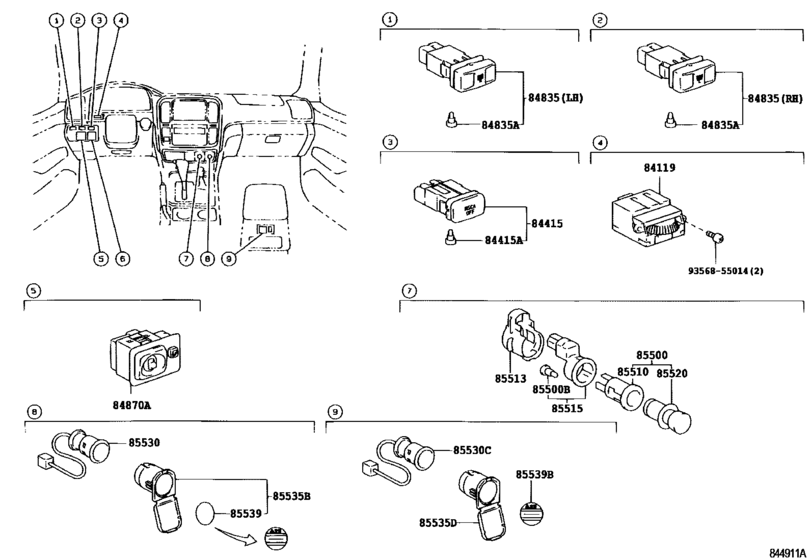

Switch & Relay & Computer ([08.2002 - ] INSTRUMENT PANEL SWITCH (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-60110 Rheostat, Light ControlLIGHT CONTROL [08.2002 - 05.2005] UZJ100 |
84119-60110 |
from US $122.30 |
||
|
84415
|
84415
84415-60020 Switch, Curtain Airbag Cutoff[08.2002 - 05.2005] UZJ100 |
84415-60020 |
US $57.51 |
||
|
84415A
|
84415A
90010-01061 Bulb (For Headlamp Leveling Switch)[08.2002 - 05.2005] UZJ100 |
90010-01061 |
from US $3.57 |
||
|
84835
|
84835
84835-60010 Switch, Power Quarter Window[08.2002 - 05.2005] UZJ100 RH |
84835-60010 |
US $81.54 |
||
| replacement | |||||
|
84835
|
84835
84835-60040
Switch, Power Quarter Window
[08.2002 - 05.2005] UZJ100 RH |
84835-60040 |
— | ||
|
84835
|
84835
84835-60020 Switch, Power Quarter Window[08.2002 - 05.2005] UZJ100 LH |
84835-60020 |
US $81.54 |
||
| replacement | |||||
|
84835
|
84835
84835-60030 Switch, Power Quarter Window[08.2002 - 05.2005] UZJ100 LH |
84835-60030 |
US $81.54 |
||
|
84835A
|
84835A
84999-10310 Bulb, Air Conditioner Control[08.2002 - 05.2005] UZJ100 |
84999-10310 |
from US $2.93 |
||
|
84870A
|
84870A
84870-60030 Switch Assy, Outer MirrorOUTER MIRROR [08.2002 - 05.2005] UZJ100 |
84870-60030 |
from US $88.82 |
||
|
85500
|
85500
85500-89106
Lighter Assy, Cigarette
[08.2002 - 05.2005] UZJ100 |
85500-89106 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[08.2002 - 05.2005] UZJ100 |
85500-12240 |
from US $27.42 |
||
|
85500B
|
85500B
90010-01022 Bulb, Key Cylinder Lamp[08.2002 - 05.2005] UZJ100 14V 1.4W,W(GREEN CAP) |
90010-01022 |
from US $2.57 |
||
|
85510
|
85510
85510-16040 Socket & Retainer Assy, Cigarlighter[08.2002 - 05.2005] UZJ100 |
85510-16040 |
US $27.05 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[08.2002 - 05.2005] UZJ100 |
85513-12020 |
from US $4.97 |
||
|
85515
|
85515
85515-60010 Stay, Cigarette Lighter Bezel[08.2002 - 05.2005] UZJ100 |
85515-60010 |
from US $6.94 |
||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[08.2002 - 05.2005] UZJ100 |
85520-89101 |
from US $17.18 |
||
|
85530
|
85530
85530-33020 Socket Assy, Power Outlet, No.1[08.2002 - 05.2005] UZJ100 |
85530-33020 |
from US $15.29 |
||
| replacement | |||||
|
85530
|
85530
85530-06010 Socket Assy, Power Outlet, No.1[08.2002 - 05.2005] UZJ100 |
85530-06010 |
from US $26.06 |
||
|
85530C
|
85530C
85530-60030 Socket Assy, Power Outlet, CenterPOWER OUTLET, CENTER [08.2002 - 05.2005] UZJ100 |
85530-60030 |
US $37.56 |
||
| replacement | |||||
|
85530C
|
85530C
85530-60010 Socket Assy, Power Outlet, Rear No.1[08.2002 - 05.2005] UZJ100 |
85530-60010 |
from US $34.03 |
||
|
85535B
|
85535B
85535-60040-C0 Cover, Power Outlet Socket (BLACK)[08.2002 - 05.2005] UZJ100 BLACK,TRIM00,10 |
85535-60040-C0 |
from US $10.32 |
||
|
85535D
|
85535D
85535-33020 Cover, Power Outlet Socket, No.1[08.2002 - 05.2005] UZJ100 |
85535-33020 |
US $11.36 |
||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[08.2002 - 05.2005] UZJ100 |
85539-60020 |
US $1.41 |
||
|
85539
|
85539
85539-60030 Label, Power Outlet NoticePOWER OUTLET NOTICE [05.2005 -] UZJ100 |
85539-60030 |
US $1.60 |
||
|
85539B
|
85539B
85539-60030 Label, Power Outlet NoticePOWER OUTLET NOTICE [08.2002 - 05.2005] UZJ100 |
85539-60030 |
US $1.60 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
