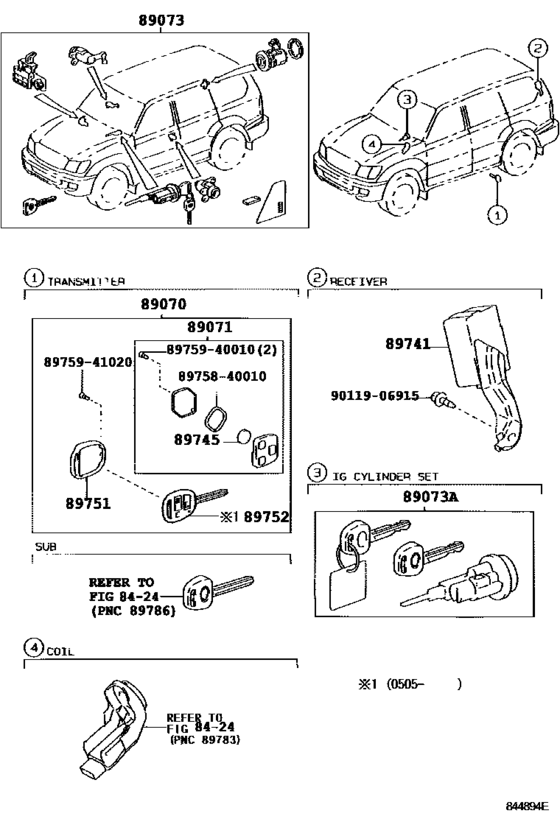

Wireless Door Lock ([08.2002 - ] (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89070
|
89070
89070-60750 Transmitter Assy, Door ControlDOOR CONTROL [08.2002 - 05.2005] UZJ100 |
89070-60750 |
US $300.52 |
||
|
89070
|
89070
89070-60B60
Transmitter Assy, Door Control
[05.2005 - 03.2006] UZJ100 |
89070-60B60 |
— | ||
| replacement | |||||
|
89070
|
89070
89070-60B61 Transmitter Assy, Door ControlDOOR CONTROL [05.2005 - 03.2006] UZJ100 |
89070-60B61 |
US $300.52 |
||
|
89070
|
89070
89070-60B61 Transmitter Assy, Door ControlDOOR CONTROL [04.2006 -] UZJ100 |
89070-60B61 |
US $300.52 |
||
|
89071
|
89071
89071-60150
Module Set, Transmitter Sub-Assy, Door Control
[08.2002 - 05.2003] UZJ100 |
89071-60150 |
— | ||
|
89071
|
89071
89071-60200
Module Set, Transmitter Sub-Assy, Door Control
[05.2003 - 05.2005] UZJ100 |
89071-60200 |
— | ||
|
89071
|
89071
89071-60230 Module Set, Transmitter Sub-Assy, Door ControlTRANSMITTER SUB-ASSY, DOOR CONTROL [05.2005 -] UZJ100 |
89071-60230 |
US $291.20 |
||
|
89073
|
89073
69005-6C520
Cylinder Set, Lock W/transmitter Housing(Less Module)
[08.2002 - 05.2005] UZJ100 |
69005-6C520 |
— | ||
| replacement | |||||
|
89073
|
89073
69005-6C571
Cylinder Set, Lock W/transmitter Housing(Less Module)
[08.2002 - 05.2005] UZJ100 |
69005-6C571 |
— | ||
|
89073
|
89073
69005-6C521
Cylinder Set, Lock W/transmitter Housing(Less Module)
[05.2006 -] UZJ100 |
69005-6C521 |
— | ||
| replacement | |||||
|
89073
|
89073
69005-6C571
Cylinder Set, Lock W/transmitter Housing(Less Module)
[05.2006 -] UZJ100 |
69005-6C571 |
— | ||
|
89073A
|
89073A
69057-60550 Ign Cylinder Set Lock W/transmitter Housing (Cut Key)[08.2002 - 05.2005] UZJ100 |
69057-60550 |
US $180.54 |
||
| replacement | |||||
|
89073A
|
89073A
69057-60551
Ign Cylinder Set Lock W/transmitter Housing (Cut Key)
[08.2002 - 05.2005] UZJ100 |
69057-60551 |
— | ||
|
89073A
|
89073A
69057-60551
Ign Cylinder Set Lock W/transmitter Housing (Cut Key)
[05.2006 -] UZJ100 |
69057-60551 |
— | ||
|
89741
|
89741
89741-60370 Receiver, Door ControlDOOR CONTROL [08.2002 - 05.2005] UZJ100 |
89741-60370 |
US $468.83 |
||
|
89745
|
89745
89745-40010 Transmitter Battery[08.2002 - 05.2005] UZJ100 |
89745-40010 |
from US $7.88 |
||
|
89745
|
89745
89745-48030 Battery, Transmitter[05.2005 -] UZJ100 |
89745-48030 |
US $5.82 |
||
|
89751
|
89751
89751-50010
Cover, Transmitter Housing
[05.2005 - 12.2005] UZJ100 |
89751-50010 |
— | ||
| replacement | |||||
|
89751
|
89751
89751-50011 Cover, Transmitter Housing[05.2005 - 12.2005] UZJ100 |
89751-50011 |
from US $9.56 |
||
|
89751
|
89751
89751-50011 Cover, Transmitter Housing[12.2005 -] UZJ100 |
89751-50011 |
from US $9.56 |
||
|
89751
|
89751
89751-60010 Cover, Transmitter HousingTRANSMITTER HOUSING [08.2002 - 05.2005] UZJ100 |
89751-60010 |
US $12.93 |
||
|
89752
|
89752
89752-60060 Case, Transmitter Housing (Blank)[05.2005 - 08.2007] UZJ100 BLANK KEY |
89752-60060 |
US $49.06 |
||
|
8975840010
|
8975840010
89758-40010 Packing, Door Control Transmitter |
89758-40010 |
US $2.27 |
||
|
8975940010
|
8975940010
89759-40010 Screw, Door Control Transmitter |
89759-40010 |
US $2.15 |
||
|
8975941020
|
8975941020
89759-41020 Screw, Door Control Transmitter |
89759-41020 |
from US $1.11 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
