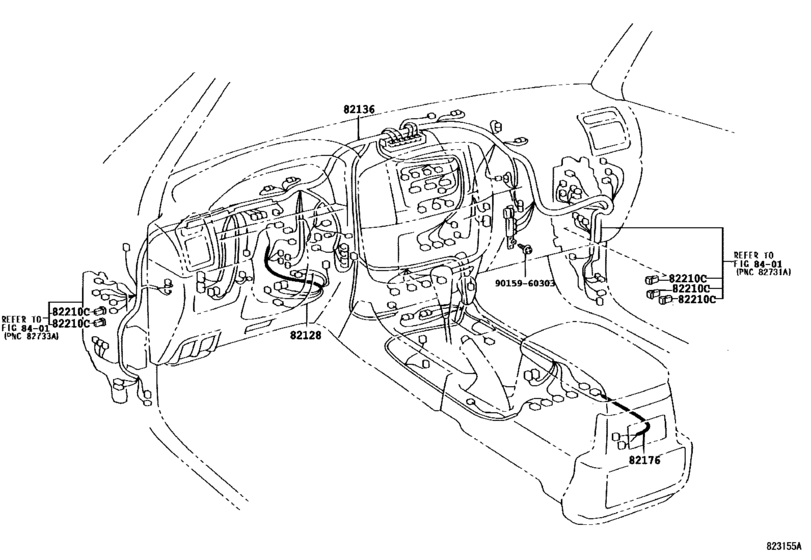

Wiring & Clamp ([08.2002 - ] COWL (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82128
|
82128
82128-60054 Wire, ColumnCOLUMN [05.2005 -] UZJ100 W(AHC) |
82128-60054 |
US $218.40 |
||
|
82128
|
82128
82128-60163 Wire, ColumnCOLUMN [08.2002 - 05.2005] UZJ100 |
82128-60163 |
US $139.78 |
||
|
82136
|
82136
82136-60056 Wire, DashDASH [08.2002 - 05.2005] UZJ100 |
82136-60056 |
US $2,256.80 |
||
|
82136
|
82136
82136-60057 Wire, DashDASH [05.2005 - 01.2006] UZJ100 |
82136-60057 |
US $2,504.32 |
||
|
82136
|
82136
82136-60058
Wire, Dash
[01.2006 -] UZJ100 |
82136-60058 |
— | ||
|
82136
|
82136
82136-60562 Wire, DashDASH [08.2002 - 08.2003] UZJ100 W(ELECTRO MULTI VISION & NAVIGATION SYSTEM) |
82136-60562 |
US $2,518.88 |
||
|
82136
|
82136
82136-60563 Wire, DashDASH [08.2003 - 05.2005] UZJ100 W(ELECTRO MULTI VISION & NAVIGATION SYSTEM) |
82136-60563 |
US $2,256.80 |
||
|
82136
|
82136
82136-60564 Wire, DashDASH [05.2005 - 01.2006] UZJ100 W(NAVIGATION SYSTEM) |
82136-60564 |
US $2,737.28 |
||
|
82136
|
82136
82136-60565
Wire, Dash
[01.2006 -] UZJ100 W(NAVIGATION SYSTEM) |
82136-60565 |
— | ||
|
82136
|
82136
82136-60A90 Wire, DashDASH [05.2005 - 01.2006] UZJ100 MEXICO SPEC |
82136-60A90 |
US $2,256.80 |
||
|
82136
|
82136
82136-60A91
Wire, Dash
[01.2006 -] UZJ100 MEXICO SPEC |
82136-60A91 |
— | ||
|
82176
|
82176
82176-60043 Wire, Rr Console BoxRR CONSOLE BOX [08.2002 - 05.2005] UZJ100 |
82176-60043 |
US $45.86 |
||
|
82176
|
82176
82176-60044 Wire, Rr Console BoxRR CONSOLE BOX [05.2005 -] UZJ100 |
82176-60044 |
US $30.87 |
||
|
82210C
|
82210C
90982-08283 Fusible Link[08.2002 - 05.2005] UZJ100 30A,TERMINAL:FEMALE |
90982-08283 |
from US $1.38 |
||
|
82210C
|
82210C
90982-08284 Fusible Link[08.2002 - 05.2005] UZJ100 40A,TERMINAL:FEMALE |
90982-08284 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08285 Fusible Link[08.2002 - 05.2005] UZJ100 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.88 |
||
|
82210C
|
82210C
90982-08291 Fusible Link[05.2005 -] UZJ100 80A |
90982-08291 |
US $7.88 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
