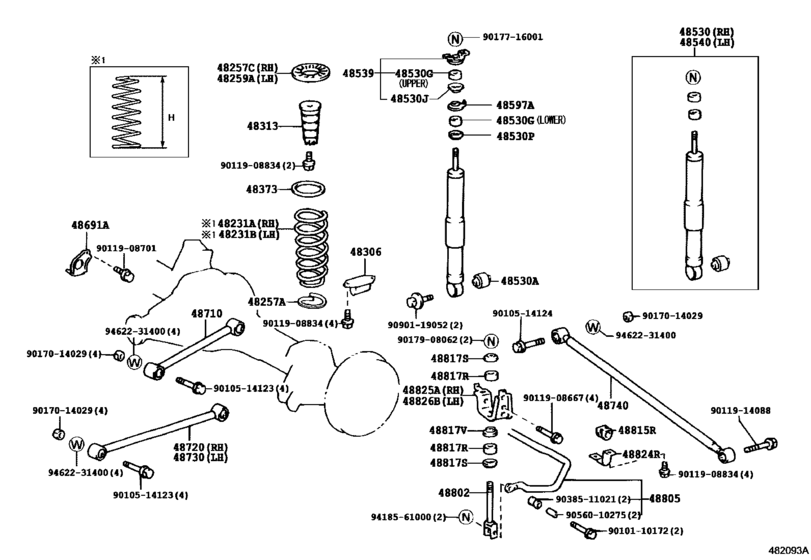

Rear Spring & Shock Absorber ([05.2005 - ] W(ACTIVE HEIGHT CONTROL) (0505- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48231A
|
48231A
48231-6A680 Spring, Coil, Rear RhCOIL, REAR RH [08.2002 - 05.2005] UZJ100 H=498,GREEN&GREEN PAINTED |
48231-6A680 |
US $299.94 |
||
|
48231A
|
48231A
48231-6A770 Spring, Coil, Rear[05.2005 -] UZJ100 W(ACTIVE HEIGHT CONTROL);H=485,PURPLE PAINTED |
48231-6A770 |
from US $123.57 |
||
|
48231B
|
48231B
48231-6A690
Spring, Coil, Rear
[08.2002 - 05.2005] UZJ100 H=504,GREEN & PINK PAINTED |
48231-6A690 |
— | ||
|
48231B
|
48231B
48231-6A780 Spring, Coil, Rear Rh[05.2005 -] UZJ100 W(ACTIVE HEIGHT CONTROL);H=500,BROWN PAINTED |
48231-6A780 |
US $163.07 |
||
|
48257A
|
48257A
48258-60030 Insulator, Rear Coil Spring, Lower[05.2005 -] UZJ100 |
48258-60030 |
from US $13.98 |
||
|
48257C
|
48257C
48257-60020 Insulator, Rear Coil Spring[08.2002 - 05.2005] UZJ100 |
48257-60020 |
from US $15.89 |
||
|
48259A
|
48259A
48257-60020 Insulator, Rear Coil Spring[08.2002 - 05.2005] UZJ100 |
48257-60020 |
from US $15.89 |
||
|
48306
|
48306
48306-60140 Bumper Sub-Assy, Rear Spring[08.2002 - 05.2005] UZJ100 |
48306-60140 |
from US $29.29 |
||
|
48313
|
48313
48313-60010 Spring, Hollow(For Rear Suspension)[08.2002 - 05.2005] UZJ100 |
48313-60010 |
from US $82.68 |
||
|
48313
|
48313
48313-60050 Spring, Hollow(For Rear Suspension)[05.2005 -] UZJ100 W(ACTIVE HEIGHT CONTROL) |
48313-60050 |
US $81.84 |
||
|
48373
|
48373
48373-60010 Spacer, Rear Spring[08.2002 - 05.2005] UZJ100 |
48373-60010 |
from US $49.98 |
||
|
48530
|
48530
48530-69145 Absorber Assy, Shock, Rear(for Active Height Control) [05.2005 -] UZJ100 MARK 48530-60042,W(ACTIVE HEIGHT CONTROL) |
48530-69145 |
from US $351 |
||
|
48530
|
48530
48531-69685
Absorber Assy, Shock, Rear
[08.2002 - 11.2004] UZJ100 MARK 48531-60680 |
48531-69685 |
— | ||
| replacement | |||||
|
48530
|
48530
48531-69835 Absorber Assy, Shock, Rear[08.2002 - 11.2004] UZJ100 MARK 48531-60680 |
48531-69835 |
from US $106.70 |
||
|
48530
|
48530
48531-69775
Absorber Assy, Shock, Rear
[11.2004 - 05.2005] UZJ100 MARK 48531-60681 |
48531-69775 |
— | ||
| replacement | |||||
|
48530
|
48530
48531-69835 Absorber Assy, Shock, Rear[11.2004 - 05.2005] UZJ100 MARK 48531-60681 |
48531-69835 |
from US $106.70 |
||
|
48530
|
48530
48531-69835 Absorber Assy, Shock, Rear[09.2006 -] UZJ100 MARK 48531-60682 |
48531-69835 |
from US $106.70 |
||
|
48530A
|
48530A
90385-19010 Bush(For Rear Shock Absorber)[08.2002 - 10.2004] UZJ100 |
90385-19010 |
from US $1.93 |
||
|
48530G
|
48530G
90948-01064 Cushion, Rear Shock Absorber, No.1[08.2002 - 05.2005] UZJ100 |
90948-01064 |
from US $5.93 |
||
|
48530G
|
48530G
90948-01077 Cushion, Rear Shock Absorber, No.1[05.2005 -] UZJ100 W(ACTIVE HEIGHT CONTROL),UPPER |
90948-01077 |
from US $7.35 |
||
|
48530G
|
48530G
90948-01078 Cushion, Rear Shock Absorber, No.1[05.2005 -] UZJ100 W(ACTIVE HEIGHT CONTROL),LOWER |
90948-01078 |
from US $14.74 |
||
|
48530J
|
48530J
90948-02173 Retainer, Shock Absorber Cushion(For Rear)[08.2002 - 05.2005] UZJ100 NO.1 |
90948-02173 |
from US $6.92 |
||
|
48530J
|
48530J
90948-02184 Retainer, Cushion, No.1(For Rear Shock Absorber)[08.2002 - 05.2005] UZJ100 NO.2 |
90948-02184 |
from US $6.86 |
||
|
48530P
|
48530P
90948-02170 Retainer, Cushion, No.2(For Rear Shock Absorber)[08.2002 - 05.2005] UZJ100 |
90948-02170 |
from US $6.81 |
||
|
48530P
|
48530P
90948-02183 Retainer, Cushion, No.1(For Front Shock Absorber)[05.2005 -] UZJ100 W(ACTIVE HEIGHT CONTROL) |
90948-02183 |
from US $11.54 |
||
|
48539
|
48539
48539-60011 Bracket, Actuator Support, Rr[05.2005 -] UZJ100 |
48539-60011 |
from US $18.31 |
||
|
48540
|
48540
48530-69145 Absorber Assy, Shock, Rear(for Active Height Control) [05.2005 -] UZJ100 MARK 48530-60042,W(ACTIVE HEIGHT CONTROL) |
48530-69145 |
from US $351 |
||
|
48540
|
48540
48531-69685
Absorber Assy, Shock, Rear
[08.2002 - 11.2004] UZJ100 MARK 48531-60680 |
48531-69685 |
— | ||
| replacement | |||||
|
48540
|
48540
48531-69835 Absorber Assy, Shock, Rear[08.2002 - 11.2004] UZJ100 MARK 48531-60680 |
48531-69835 |
from US $106.70 |
||
|
48540
|
48540
48531-69775
Absorber Assy, Shock, Rear
[11.2004 - 05.2005] UZJ100 MARK 48531-60681 |
48531-69775 |
— | ||
| replacement | |||||
|
48540
|
48540
48531-69835 Absorber Assy, Shock, Rear[11.2004 - 05.2005] UZJ100 MARK 48531-60681 |
48531-69835 |
from US $106.70 |
||
|
48540
|
48540
48531-69835 Absorber Assy, Shock, Rear[09.2006 -] UZJ100 MARK 48531-60682 |
48531-69835 |
from US $106.70 |
||
|
48597A
|
48597A
48597-60041 Retainer, Rear Shock Absober Cushion[05.2005 -] UZJ100 |
48597-60041 |
from US $8.09 |
||
|
48691A
|
48691A
48691-60010
Insulator, Upper Arm Bush, Heat
[08.2002 - 05.2005] UZJ100 |
48691-60010 |
— | ||
|
48710
|
48710
48710-60070 Arm Assy, Upper Control[08.2002 - 05.2005] UZJ100 RH |
48710-60070 |
from US $144.32 |
||
|
48710
|
48710
48710-60080 Arm Assy, Upper Control[08.2002 - 05.2005] UZJ100 LH |
48710-60080 |
from US $144.32 |
||
|
48720
|
48720
48720-60040 Arm Assy, Lower Control[08.2002 - 05.2005] UZJ100 |
48720-60040 |
from US $182.40 |
||
|
48730
|
48730
48720-60040 Arm Assy, Lower Control[08.2002 - 05.2005] UZJ100 |
48720-60040 |
from US $182.40 |
||
|
48740
|
48740
48740-60080 Rod Assy, Rear Lateral Control[08.2002 - 05.2005] UZJ100 |
48740-60080 |
from US $206.40 |
||
|
48802
|
48802
48802-60090 Link Sub-Assy, Stabilizer[08.2002 - 05.2005] UZJ100 |
48802-60090 |
from US $19.38 |
||
|
48805
|
48805
48805-60060 Bar Sub-Assy, Rear Stabilizer[08.2002 - 05.2005] UZJ100 |
48805-60060 |
from US $250.43 |
||
|
48805
|
48805
48805-60090 Bar Sub-Assy, Rear Stabilizer[05.2005 -] UZJ100 W(ACTIVE HEIGHT CONTROL) |
48805-60090 |
US $243.15 |
||
|
48815R
|
48815R
48815-26250 Bush, Stabilizer(For Rear)[05.2005 -] UZJ100 W(ACTIVE HEIGHT CONTROL) |
48815-26250 |
from US $11.56 |
||
|
48815R
|
48815R
48815-60140 Bush, Stabilizer(For Rear)[08.2002 - 05.2005] UZJ100 |
48815-60140 |
from US $10.98 |
||
|
48817R
|
48817R
48817-30010 Cushion, Front Stabilizer[08.2002 - 05.2005] UZJ100 |
48817-30010 |
from US $2.26 |
||
|
48817S
|
48817S
90948-02126 Retainer, Cushion, No.1(For Rear Shock Absorber)[08.2002 - 05.2005] UZJ100 |
90948-02126 |
from US $3.51 |
||
|
48817V
|
48817V
90948-02127 Retainer, Cushion, No.2(For Rear Shock Absorber)[08.2002 - 05.2005] UZJ100 |
90948-02127 |
from US $2.91 |
||
|
48824R
|
48824R
48824-26210 Bracket, Front Stabilizer, No.1[08.2002 - 05.2005] UZJ100 |
48824-26210 |
from US $10.76 |
||
|
48825A
|
48825A
48825-60050 Bracket, Rear Stabilizer End[08.2002 - 05.2005] UZJ100 |
48825-60050 |
from US $16.17 |
||
|
48826B
|
48826B
48826-60010 Protector, Rear Stabilizer Bar[08.2002 - 05.2005] UZJ100 |
48826-60010 |
from US $16.22 |
||
|
9010110172
|
9010110172
90101-10172 Bolt(For Front Stabilizer) |
90101-10172 |
US $0.98 |
||
| replacement | |||||
|
9010110172
|
9010110172
91112-61045 Bolt(For Rear Stabilizer) |
91112-61045 |
from US $1.21 |
||
|
9010514123
|
9010514123
90105-14123 BOLT WASHER BASED |
90105-14123 |
from US $4.35 |
||
|
9010514124
|
9010514124
90105-14124 BOLT WASHER BASED |
90105-14124 |
US $9.14 |
||
|
9011908667
|
9011908667
90119-08667 BOLT |
90119-08667 |
from US $1.23 |
||
|
9011908701
|
9011908701
90119-08701 BOLT |
90119-08701 |
from US $0.99 |
||
|
9011908834
|
9011908834
90119-08834 BOLT |
90119-08834 |
from US $0.92 |
||
|
9011914088
|
9011914088
90119-14088 BOLT WWASHER |
90119-14088 |
from US $3.10 |
||
|
9017014029
|
9017014029
90170-14029 NUT, HEXAGON |
90170-14029 |
from US $1.23 |
||
|
9017716001
|
9017716001
90177-16001 NUT LOCK |
90177-16001 |
US $2.87 |
||
|
9017908062
|
9017908062
90179-08062 NUT |
90179-08062 |
from US $0.74 |
||
|
9038511021
|
9038511021
90385-11021 Bush, Stabilizer Link |
90385-11021 |
from US $1.44 |
||
|
9056010275
|
9056010275
90560-10275 Spacer(For Rear Stabilizer Bar) |
90560-10275 |
from US $2.05 |
||
|
9090119052
|
9090119052
90901-19052 BOLT WWASHER |
90901-19052 |
from US $5.56 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $0.96 |
||
|
9462231400
|
9462231400
94622-31400 WASHER PLAIN |
94622-31400 |
from US $1.66 |
||
