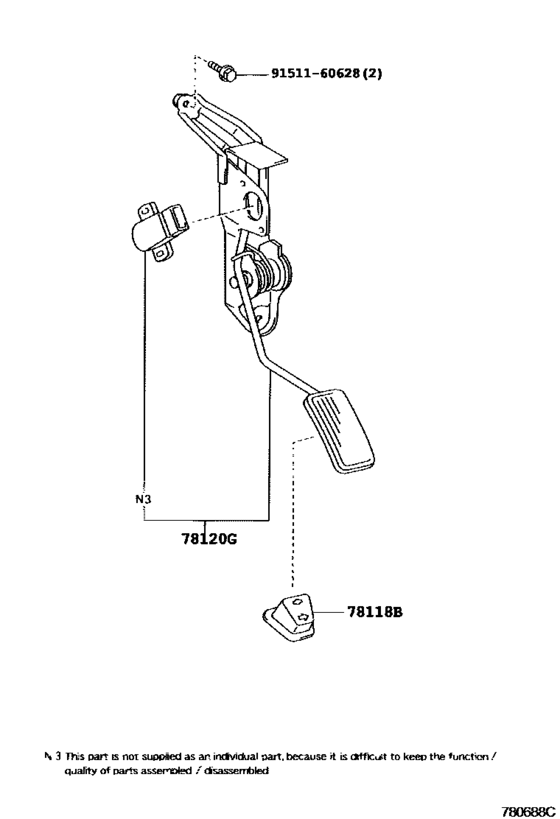

Accelerator Link ([08.2002 - ] (0208- )UZJ100..LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- LAND CRUISER 100
- From
- 09.2003
- To
- 09.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78118B
|
78118B
78118-60020
Stopper, Accelerator Pedal
[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
78118-60020 |
— | ||
|
78120G
|
78120G
78010-60090
Rod Assy, Accelerator Pedal
[09.2003 - 06.2005] UZJ100..5FC..CHI |
78010-60090 |
— | ||
|
9151160628
|
9151160628
91511-60628 BOLT FLANGE |
91511-60628 |
US $0.87 |
