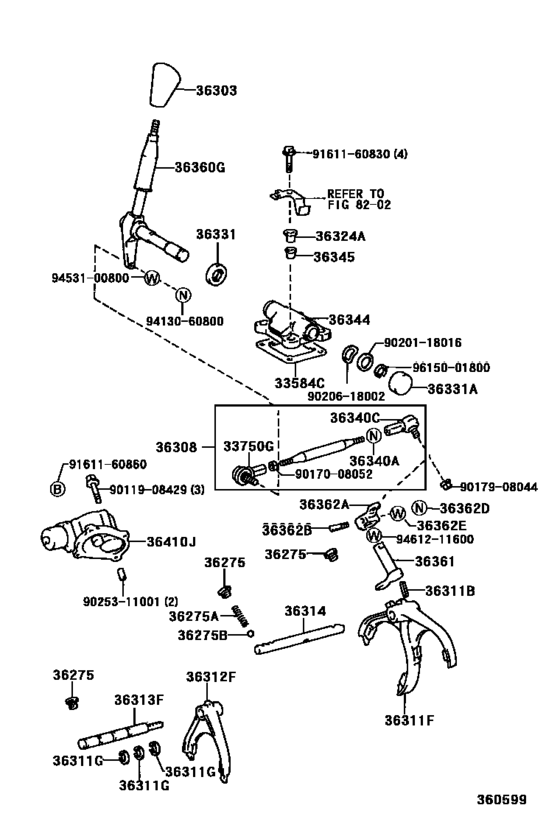

Transfer Lever & Shift Rod ([12.1999 - ] (9912- )UZJ100..LHD..ATM) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- LAND CRUISER 100
- From
- 09.2003
- To
- 09.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33584C
|
33584C
36345-60010 Gasket,transfer Control Shift Lever Retainer[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
36345-60010 |
from US $19.13 |
||
|
33750G
|
33750G
33750-26010 End, Connecting Rod, No.2 (For Column Shift)[09.2003 - 06.2005] UZJ100..5FC..CHI |
33750-26010 |
from US $11.28 |
||
|
36275
|
36275
90341-12008 Plug, W/head Straight Screw(For Transfer Adapter)[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
90341-12008 |
from US $3.33 |
||
|
36275A
|
36275A
90501-18093 Spring, Compression (For Shift Detent Ball)[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI L=23.8 |
90501-18093 |
US $1.97 |
||
|
36275B
|
36275B
90360-10003 Ball(For Transmission Oil Pump Cover)[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI OD=9.52,STEEL |
90360-10003 |
from US $1.19 |
||
|
36303
|
36303
36303-60240-C0 Knob Sub-Assy, Shift Lever[09.2003 - 06.2005] UZJ100..5FC..CHI BLACK,TRIM0# |
36303-60240-C0 |
from US $46.22 |
||
|
36308
|
36308
36308-60270 Rod Sub-Assy, High & Low ShiftHIGH & LOW SHIFT [09.2003 - 06.2005] UZJ100..5FC..CHI |
36308-60270 |
US $34.80 |
||
|
36311B
|
36311B
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI L=25.5 |
90254-05016 |
from US $1.95 |
||
|
36311F
|
36311F
36311-60120 Fork, Transfer Gear Shift, No.1[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
36311-60120 |
US $49.80 |
||
|
36311G
|
36311G
90520-13004 Ring, Shaft Snap (For Transfer Gear Shift Fork)[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
90520-13004 |
from US $0.96 |
||
|
36312F
|
36312F
36312-60050 Fork, Transfer Gear Shift, No.2[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
36312-60050 |
US $26.73 |
||
|
36313F
|
36313F
36313-60100 Shaft, Transfer Front Drive Shift Fork[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
36313-60100 |
US $17.47 |
||
|
36314
|
36314
36314-60050 Shaft, Transfer High And Low Shift Fork[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
36314-60050 |
US $16.25 |
||
|
36324A
|
36324A
36324-60070 Bush, Transfer Shift Lever[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
36324-60070 |
from US $3.14 |
||
|
36331
|
36331
36331-60040 Boot, Transfer Shift Lever[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
36331-60040 |
from US $4.48 |
||
|
36331A
|
36331A
36331-60070 Boot, Transfer Shift Lever, No.2TRANSFER SHIFT LEVER, NO.2 [09.2003 - 06.2005] FZJ100,UZJ100..ATM..CHI |
36331-60070 |
US $5.59 |
||
|
36340A
|
36340A
94130-60800 Nut(For Clutch Pedal Stopper)[09.2003 - 06.2005] FZJ100,UZJ100..ATM..CHI |
94130-60800 |
from US $0.68 |
||
| replacement | |||||
|
36340A
|
36340A
90170-A0003 New Genuine Part[09.2003 - 06.2005] FZJ100,UZJ100..ATM..CHI |
90170-A0003 |
US $2.22 |
||
|
36340C
|
36340C
33740-26010 End Assy, Connecting Rod, No.1(For Column Shift)[09.2003 - 06.2005] FZJ100,UZJ100..ATM..CHI |
33740-26010 |
from US $13.40 |
||
|
36344
|
36344
36344-60080 Retainer, Transfer Control Shift Lever[09.2003 - 06.2005] FZJ100,UZJ100..ATM..CHI |
36344-60080 |
US $59.93 |
||
|
36345
|
36345
36345-60020 Gasket, Transfer Control Shift Lever Retainer[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
36345-60020 |
from US $1.44 |
||
|
36360G
|
36360G
36360-60730 Lever Assy, Transfer High & Low ShiftTRANSFER HIGH & LOW SHIFT [09.2003 - 06.2005] UZJ100..5FC..CHI |
36360-60730 |
US $251.89 |
||
|
36361
|
36361
36361-60030 Lever, Transfer Shift, Inner[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
36361-60030 |
US $12.93 |
||
|
36362A
|
36362A
36362-60030 Lever, Transfer Shift, Outer[09.2003 - 06.2005] FZJ100,UZJ100..ATM..CHI |
36362-60030 |
US $13.98 |
||
|
36362B
|
36362B
33281-16020 Pin, Lever Lock (For Shift Outer Lever)[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
33281-16020 |
from US $1.35 |
||
|
36362D
|
36362D
94130-60800 Nut(For Clutch Pedal Stopper)[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
94130-60800 |
from US $0.68 |
||
| replacement | |||||
|
36362D
|
36362D
90170-A0003 New Genuine Part[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
90170-A0003 |
US $2.22 |
||
|
36362E
|
36362E
94531-00800 Washer (For Transfer Shift Outer Lever)[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
94531-00800 |
from US $0.86 |
||
|
36410J
|
36410J
36410-60061 Actuator Assy, Transfer Shift[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
36410-60061 |
from US $566.98 |
||
|
9011908429
|
9011908429
90119-08429 Bolt, W/washer(For Transmission Case Cover) |
90119-08429 |
US $1.97 |
||
|
9017008052
|
9017008052
90170-08052 Nut, Hexagon (For Column Shift Selecting Or Shifting Rod) |
90170-08052 |
US $0.87 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.20 |
||
|
9020118016
|
9020118016
90201-18016 New Genuine Part |
90201-18016 |
US $5.56 |
||
|
9020618002
|
9020618002
90206-18002 RING |
90206-18002 |
US $0.82 |
||
|
9025311001
|
9025311001
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11001 |
US $2.15 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.44 |
||
|
9161160860
|
9161160860
91611-60860 Bolt(For Rocker Support Set) |
91611-60860 |
US $1.79 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.68 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.86 |
||
|
9461211600
|
9461211600
94612-11600 Washer, Shift Lever Shaft Housing, No.2 |
94612-11600 |
US $1.97 |
||
|
9615001800
|
9615001800
96150-01800 Ring, Snap(For Reaction Retainer) |
96150-01800 |
US $0.70 |
||
