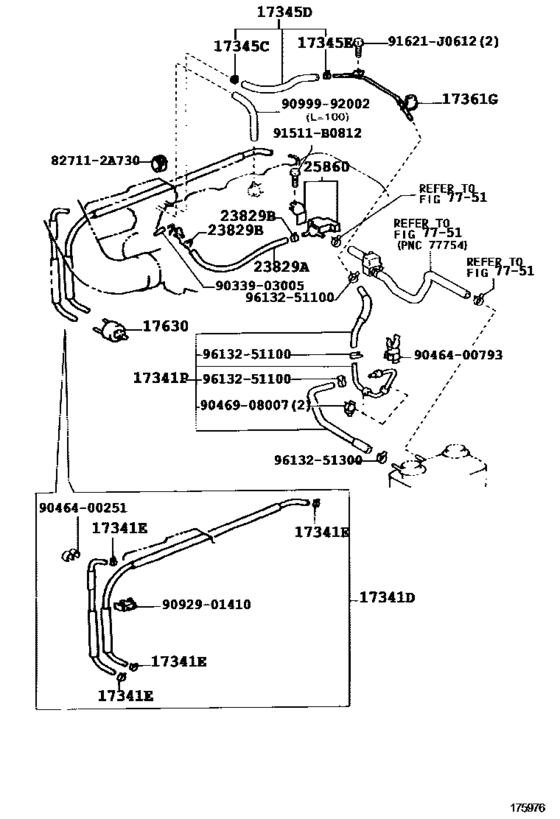

Vacuum Piping ([08.2002 - ] TYPE B (0208- )2UZFE..5FC..ARL,CHI,GCC) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- LAND CRUISER 100
- From
- 09.2003
- To
- 09.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341D
|
17341D
17030-50070 Hose, No.1(For Idle-Up)[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
17030-50070 |
from US $36.89 |
||
|
17341E
|
17341E
96132-51000 Clip Or Clamp(For Ventilation Hose)[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
96132-51000 |
from US $1.48 |
||
|
17341P
|
17341P
17341-50110 Hose, Air[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
17341-50110 |
from US $33.40 |
||
|
17345C
|
17345C
96132-51100 Clip (For Hose)[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
96132-51100 |
from US $1.42 |
||
|
17345D
|
17345D
17345-50080 Hose, Air, No.5[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
17345-50080 |
US $16.84 |
||
|
17345E
|
17345E
96132-51300 Clip(For Ventilation Hose No.2)[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
96132-51300 |
from US $1.48 |
||
|
17361G
|
17361G
17361-50010
Tube, Air(For Idle-Up)
[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
17361-50010 |
— | ||
|
17630
|
17630
17630-16040 Valve Assy, Air Control[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
17630-16040 |
from US $78.92 |
||
|
23829A
|
23829A
23829-50070 Hose, Fuel Vapor Feed[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
23829-50070 |
from US $22.91 |
||
|
23829B
|
23829B
96132-51300 Clip(For Ventilation Hose No.2)[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
96132-51300 |
from US $1.48 |
||
|
25860
|
25860
25860-50100 Valve Assy, Vacuum Switching[09.2003 - 06.2005] 2UZFE..UZJ100..VX..CHI TYPE B:REFER TO ILLUSTRATION |
25860-50100 |
from US $63.65 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
827112A730
|
827112A730
82711-2A730 Clamp, Throttle Cable, No.1 |
82711-2A730 |
US $5.91 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.77 |
||
|
9046400251
|
9046400251
90464-00251 Clamp, Vacuum Tube |
90464-00251 |
US $4.02 |
||
|
9046400793
|
9046400793
90464-00793 New Genuine Part |
90464-00793 |
US $2.87 |
||
|
9046908007
|
9046908007
90469-08007 CLAMP |
90469-08007 |
US $1.40 |
||
|
9092901410
|
9092901410
90929-01410 New Genuine Part |
90929-01410 |
US $3.79 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
