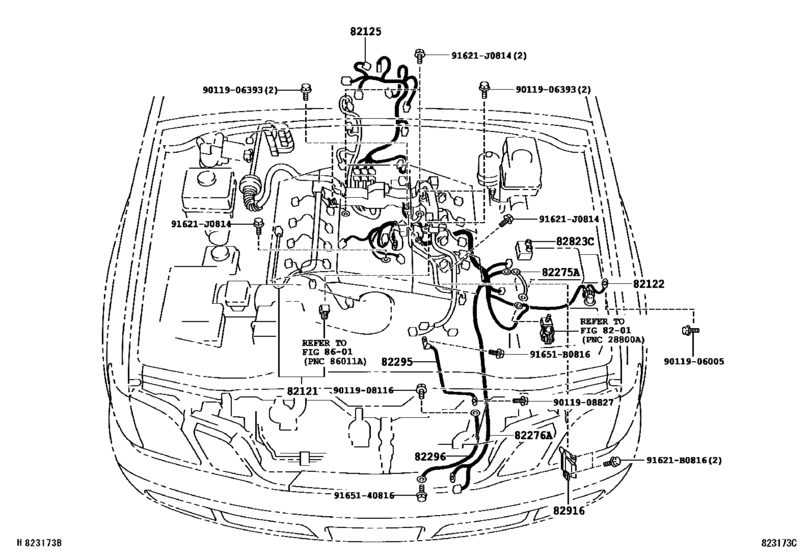

Wiring & Clamp ([08.2002 - ] ENGINE (0208- )UZJ100) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- LAND CRUISER 100
- From
- 09.2003
- To
- 09.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-60A10 Wire, EngineENGINE [09.2003 - 02.2004] UZJ100..CHI |
82121-60A10 |
US $1,189.55 |
||
|
82121
|
82121
82121-6A302 Wire, Engine[09.2003 -] UZJ100..VX..CHI |
82121-6A302 |
US $1,189.55 |
||
| replacement | |||||
|
82121
|
82121
82121-60A10 Wire, EngineENGINE [09.2003 -] UZJ100..VX..CHI |
82121-60A10 |
US $1,189.55 |
||
|
82121
|
82121
82121-6A303
Wire, Engine
[02.2004 - 06.2005] UZJ100..5FC..CHI |
82121-6A303 |
— | ||
|
82122
|
82122
82122-0G020
Wire, Engine, No.2
[09.2003 - 01.2004] UZJ100..CHI (L) |
82122-0G020 |
— | ||
|
82122
|
82122
82122-60352
Wire, Engine, No.2
[09.2003 - 01.2004] UZJ100..CHI (J) |
82122-60352 |
— | ||
|
82122
|
82122
82122-60353
Wire, Engine, No.2
[09.2006 -] UZJ100..CHI |
82122-60353 |
— | ||
|
82125
|
82125
82125-0G020 Wire, Transmission[11.2003 - 06.2005] UZJ100..5FC..CHI (L) |
82125-0G020 |
US $135.41 |
||
| replacement | |||||
|
82125
|
82125
82125-60383 Wire, Transmission[11.2003 - 06.2005] UZJ100..5FC..CHI (L) |
82125-60383 |
US $218.40 |
||
|
82125
|
82125
82125-60383 Wire, Transmission[09.2003 - 06.2005] UZJ100..5FC..CHI (J) |
82125-60383 |
US $218.40 |
||
|
82275A
|
82275A
82275-0G010
Cable, Battery To Magnet Switch
[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI (L) |
82275-0G010 |
— | ||
| replacement | |||||
|
82275A
|
82275A
82275-60100 Cable, Battery To Magnet Switch[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI (L) |
82275-60100 |
US $18.35 |
||
|
82275A
|
82275A
82275-60100 Cable, Battery To Magnet Switch[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI (J) |
82275-60100 |
US $18.35 |
||
|
82276A
|
82276A
82276-0G020
Cable, Magnet Switch To Winch
[09.2003 - 06.2005] UZJ100..5FC..CHI (L) |
82276-0G020 |
— | ||
| replacement | |||||
|
82276A
|
82276A
82276-60090 Cable, Magnet Switch To Winch[09.2003 - 06.2005] UZJ100..5FC..CHI (L) |
82276-60090 |
US $90.85 |
||
|
82276A
|
82276A
82276-60090 Cable, Magnet Switch To Winch[09.2003 - 06.2005] UZJ100..5FC..CHI (J) |
82276-60090 |
US $90.85 |
||
|
82295
|
82295
82295-0G020
Wire, Winch Earth
[09.2003 - 06.2005] UZJ100..5FC..CHI (L) |
82295-0G020 |
— | ||
| replacement | |||||
|
82295
|
82295
82295-60020 Wire, Winch Earth[09.2003 - 06.2005] UZJ100..5FC..CHI (L) |
82295-60020 |
US $67.70 |
||
|
82295
|
82295
82295-60020 Wire, Winch Earth[09.2003 - 06.2005] UZJ100..5FC..CHI (J) |
82295-60020 |
US $67.70 |
||
|
82296
|
82296
82296-0G010
Wire, Winch Earth, No.2
[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI (L) |
82296-0G010 |
— | ||
| replacement | |||||
|
82296
|
82296
82296-60010 Wire, Winch Earth, No.2[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI (L) |
82296-60010 |
US $45.78 |
||
|
82296
|
82296
82296-60010 Wire, Winch Earth, No.2[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI (J) |
82296-60010 |
US $45.78 |
||
|
82823C
|
82823C
82823-90300
Cap, Terminal, No.1
[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
82823-90300 |
— | ||
|
82916
|
82916
82916-60010 Insulator, Wiring Harness Heat, No.2[09.2003 - 06.2005] UZJ100..5FC..CHI |
82916-60010 |
US $22.71 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
91651B0816
|
91651B0816
91651-B0816 New Genuine Part |
91651-B0816 |
US $2.87 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011906393
|
9011906393
90119-06393 Bolt(For Suspension Control Oil Cooler) |
90119-06393 |
US $1.43 |
||
|
9011908116
|
9011908116
90119-08116 Bolt W Washer |
90119-08116 |
US $4.30 |
||
|
9011908827
|
9011908827
90119-08827 New Genuine Part |
90119-08827 |
US $1.61 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
