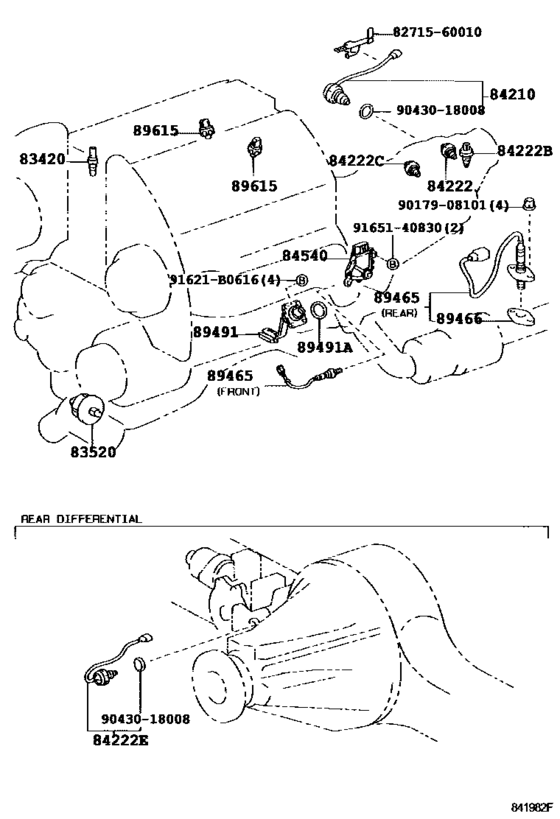

Switch & Relay & Computer ([01.1998 - ] ENGINE & TRANSMISSION (9801- )UZJ100) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20040 Gage Assy, Water Temperature Sender[08.2002 - 05.2005] UZJ100 |
83420-20040 |
from US $35.65 |
||
|
83520
|
83520
83520-35020
Gage Assy,oil Pressure Sender
[08.2002 - 09.2004] UZJ100 |
83520-35020 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-60051 Gage Assy,oil Pressure Sender[08.2002 - 09.2004] UZJ100 |
83520-60051 |
from US $41.50 |
||
|
83520
|
83520
83520-60050
Gage Assy,oil Pressure Sender
[09.2004 - 05.2005] UZJ100 |
83520-60050 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-60051 Gage Assy,oil Pressure Sender[09.2004 - 05.2005] UZJ100 |
83520-60051 |
from US $41.50 |
||
|
84210
|
84210
84210-60030 Switch Assy, Back-Up Lamp[08.2002 - 08.2003] UZJ100 |
84210-60030 |
from US $30.07 |
||
|
84222
|
84222
84222-12010 Switch, Transfer Indicator, No.1[08.2002 - 05.2005] HDJ100,UZJ100 |
84222-12010 |
from US $54.43 |
||
|
84222B
|
84222B
84222-60081 Switch, Transfer Indicator, No.1[08.2002 - 05.2005] HDJ100,UZJ100..ATM |
84222-60081 |
from US $41.61 |
||
|
84222C
|
84222C
84222-12010 Switch, Transfer Indicator, No.1[08.2002 - 05.2005] HDJ100,UZJ100 |
84222-12010 |
from US $54.43 |
||
|
84222E
|
84222E
84222-60090 Switch, Differential Lock Indicator[08.2002 - 05.2005] HDJ100,UZJ100 |
84222-60090 |
from US $52.55 |
||
|
84540
|
84540
84540-51010 Switch Assy, Neutral Start[08.2002 - 05.2005] HDJ100,UZJ100..5FC |
84540-51010 |
from US $139.48 |
||
|
89465
|
89465
89465-60150 Sensor, Oxygen[08.2002 - 05.2005] UZJ100 FRONT |
89465-60150 |
from US $187.20 |
||
|
89465
|
89465
89465-69175 Sensor, Oxygen[08.2002 - 05.2005] UZJ100 REAR |
89465-69175 |
from US $180.80 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[08.2002 - 05.2005] UZJ100 |
89466-20020 |
from US $12.77 |
||
|
89491
|
89491
89491-60070 Sensor, Engine Oil LevelENGINE OIL LEVEL [08.2002 - 05.2005] UZJ100 |
89491-60070 |
US $176.32 |
||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[08.2002 - 05.2005] HDJ100,UZJ100 |
89493-60010 |
from US $2.51 |
||
|
89615
|
89615
89615-52010 Sensor, Knock Control[08.2002 - 05.2005] UZJ100 |
89615-52010 |
from US $120.08 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.78 |
||
|
8271560010
|
8271560010
82715-60010
Bracket,wiring Harness Clamp
|
82715-60010 |
— | ||
|
9017908101
|
9017908101
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.01 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
