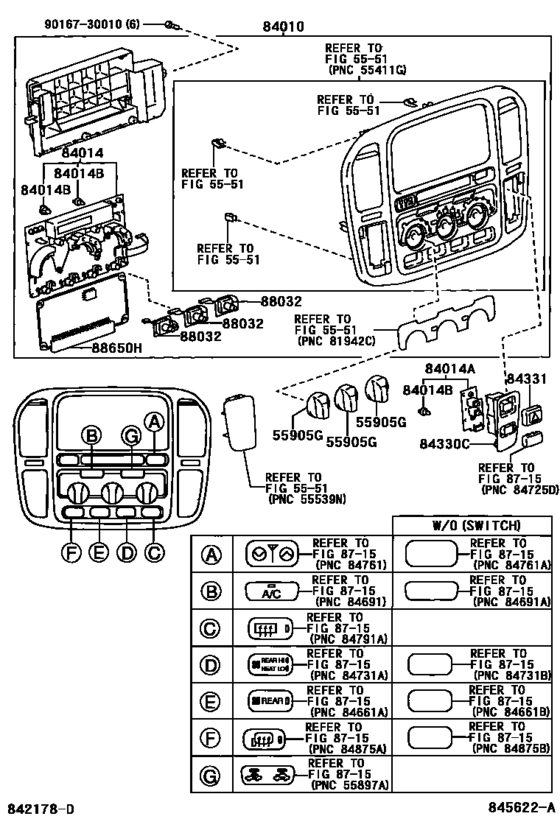

Switch & Relay & Computer ([01.1998 - 08.2002] CENTER CLUSTER INTEGRATION (9801-0208)RHD) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Europe
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55905G
|
55905G
55905-60270 Knob Sub-Assy, Control[01.1998 - 08.2002] HDJ100,UZJ100 |
55905-60270 |
from US $11.01 |
||
|
84010
|
84010
84012-60020
Switch Assy, Center Cluster Integration
[01.1998 - 08.2000] HDJ100,UZJ100..RHD |
84012-60020 |
— | ||
|
84010
|
84010
84012-60070
Switch Assy, Center Cluster Integration
[01.1998 - 11.1998] HDJ100,UZJ100..RHD W(SINGLE AUTOMATIC AIR CONDITIONER) |
84012-60070 |
— | ||
| replacement | |||||
|
84010
|
84010
84012-60071
Switch Assy, Center Cluster Integration
[01.1998 - 11.1998] HDJ100,UZJ100..RHD W(SINGLE AUTOMATIC AIR CONDITIONER) |
84012-60071 |
— | ||
|
84010
|
84010
84012-60071
Switch Assy, Center Cluster Integration
[11.1998 - 08.2000] HDJ100,UZJ100..RHD W(SINGLE AUTOMATIC AIR CONDITIONER) |
84012-60071 |
— | ||
|
84010
|
84010
84012-60072
Switch Assy, Center Cluster Integration
[08.2000 - 08.2002] HDJ100,UZJ100..RHD |
84012-60072 |
— | ||
|
84010
|
84010
84012-60171
Switch Assy, Center Cluster Integration
[08.2000 - 08.2001] HDJ100,UZJ100..RHD..4FC 50TH ANNIVERSARY |
84012-60171 |
— | ||
|
84014
|
84014
84014-60050
Board Sub-Assy, Printed Wire Integration
[01.1998 - 08.2000] HDJ100,UZJ100..RHD |
84014-60050 |
— | ||
|
84014
|
84014
84014-60070
Board Sub-Assy, Printed Wire Integration
[01.1998 - 08.2002] HDJ100,UZJ100..RHD W(SINGLE AUTOMATIC AIR CONDITIONER) |
84014-60070 |
— | ||
|
84014
|
84014
84014-60101
Board Sub-Assy, Printed Wire Integration
[08.2000 - 08.2001] HDJ100,UZJ100..RHD..4FC 50TH ANNIVERSARY |
84014-60101 |
— | ||
|
84014A
|
84014A
84014-60120
Board Sub-Assy, Printed Wire Integration, No.2
[01.1998 - 07.1998] HDJ100,UZJ100..RHD W(AUTOMATIC AIR CONDITIONER) |
84014-60120 |
— | ||
| replacement | |||||
|
84014A
|
84014A
84014-60140
Board Sub-Assy, Printed Wire Integration, No.2
[01.1998 - 07.1998] HDJ100,UZJ100..RHD W(AUTOMATIC AIR CONDITIONER) |
84014-60140 |
— | ||
|
84014A
|
84014A
84014-60140
Board Sub-Assy, Printed Wire Integration, No.2
[07.1998 - 08.2002] HDJ100,UZJ100..RHD W(MANUAL AIR CONDITIONER) |
84014-60140 |
— | ||
|
84014B
|
84014B
84999-70007 Bulb, Air Conditioner Control[08.2000 - 08.2001] HDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX 14V 1.4W,50TH ANNIVERSARY |
84999-70007 |
from US $7.35 |
||
|
84014B
|
84014B
90010-05104 Bulb, Air Conditioner Control[01.1998 - 08.2002] HDJ100,UZJ100 14V 1.12W |
90010-05104 |
US $2.09 |
||
|
84330C
|
84330C
84332-60210
Cover, Hazard Warning Signal Switch
[01.1998 - 08.2002] HDJ100,UZJ100..RHD |
84332-60210 |
— | ||
|
84330C
|
84330C
84332-60230
Cover, Hazard Warning Signal Switch
[08.2000 - 08.2001] HDJ100,UZJ100..RHD..4FC 50TH ANNIVERSARY & W(ELECTRO MULTI VISION) |
84332-60230 |
— | ||
|
84331
|
84331
84331-60040
Knob, Hazard Warning Signal Switch
[01.1998 - 08.2002] HDJ100,UZJ100 |
84331-60040 |
— | ||
|
88032
|
88032
88032-60030
Switch, Heater Control Volume
[01.1998 - 08.2002] HDJ100,UZJ100..VX W(SINGLE AIR CONDITIONER),BLOWER,MODE |
88032-60030 |
— | ||
|
88032
|
88032
88032-60050 Resistor Sub-Assy, VariableVARIABLE [01.1998 - 08.2000] HDJ100,UZJ100 BLOWER,MODE |
88032-60050 |
US $32.10 |
||
|
88032
|
88032
88032-60070 Switch, Heater Control Volume[01.1998 - 08.2002] HDJ100,UZJ100 TEMP |
88032-60070 |
from US $30.95 |
||
|
88650H
|
88650H
88650-60390
Amplifier Assy, Air Conditioner
[01.1998 - 10.1998] HDJ100,UZJ100 |
88650-60390 |
— | ||
| replacement | |||||
|
88650H
|
88650H
88650-60391
Amplifier Assy, Air Conditioner
[01.1998 - 10.1998] HDJ100,UZJ100 |
88650-60391 |
— | ||
|
88650H
|
88650H
88650-60391
Amplifier Assy, Air Conditioner
[10.1998 - 08.2000] HDJ100,UZJ100 |
88650-60391 |
— | ||
|
88650H
|
88650H
88650-60410
Amplifier Assy, Air Conditioner
[01.1998 - 11.1998] HDJ100,UZJ100 W(SINGLE AUTOMATIC AIR CONDITIONER) |
88650-60410 |
— | ||
| replacement | |||||
|
88650H
|
88650H
88650-60412
Amplifier Assy, Air Conditioner
[01.1998 - 11.1998] HDJ100,UZJ100 W(SINGLE AUTOMATIC AIR CONDITIONER) |
88650-60412 |
— | ||
|
88650H
|
88650H
88650-60412
Amplifier Assy, Air Conditioner
[11.1998 - 08.2000] HDJ100,UZJ100 W(SINGLE AUTOMATIC AIR CONDITIONER) |
88650-60412 |
— | ||
|
88650H
|
88650H
88650-60413
Amplifier Assy, Air Conditioner
[08.2000 - 08.2002] HDJ100,UZJ100..RHD; UZJ100..LHD W(SINGLE AUTOMATIC AIR CONDITIONER); HDJ100..LHD..VX W(SINGLE AUTOMATIC AIR CONDITIONER) |
88650-60413 |
— | ||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $1.08 |
||
