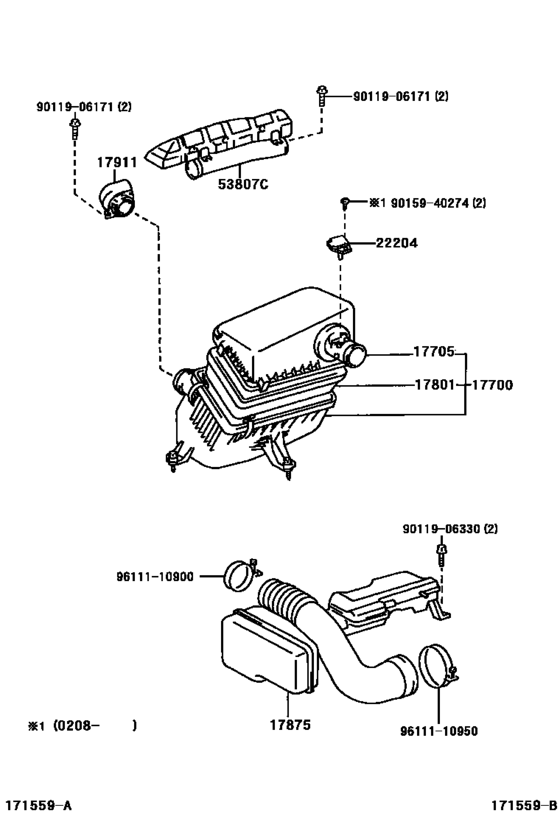

Air Cleaner ([01.1998 - ] (9801- )2UZFE) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-50170 Cleaner Assy, Air[08.2002 - 05.2005] 2UZFE..UZJ100 |
17700-50170 |
US $432.43 |
||
|
17705
|
17705
17705-50080
Cap Sub-Assy, Air Cleaner
[08.2002 - 05.2005] 2UZFE..UZJ100 |
17705-50080 |
— | ||
|
17801
|
17801
17801-50040 Element Sub-Assy, Air Cleaner Filter[08.2002 - 05.2005] 2UZFE..UZJ100 |
17801-50040 |
US $52.08 |
||
|
17875
|
17875
17875-50190 Pipe, Intake Air Connector[08.2002 - 05.2005] 2UZFE..UZJ100 |
17875-50190 |
US $616.76 |
||
|
17911
|
17911
52810-60010 Duct, Cool Air Intake, No.1[08.2002 - 05.2005] 1HDFTE..HDJ101; 2UZFE..UZJ100 |
52810-60010 |
US $33.20 |
||
|
22204
|
22204
22204-75020 Meter Sub-Assy, Intake Air Flow[08.2002 - 05.2005] 2UZFE..UZJ100 |
22204-75020 |
US $333.84 |
||
|
53807C
|
53807C
53807-60050 Duct Sub-Assy, Front Fender Air, Rh[08.2002 - 05.2005] UZJ100 |
53807-60050 |
US $90.85 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.33 |
||
|
9011906330
|
9011906330
90119-06330 Bolt |
90119-06330 |
US $1.43 |
||
|
9015940274
|
9015940274
90159-40274
New Genuine Part
|
90159-40274 |
— | ||
|
9611110900
|
9611110900
96111-10900 Clamp, Hose |
96111-10900 |
from US $5.64 |
||
|
9611110950
|
9611110950
96111-10950 Clamp(For Air Cleaner Hose, No.1) |
96111-10950 |
from US $4.29 |
