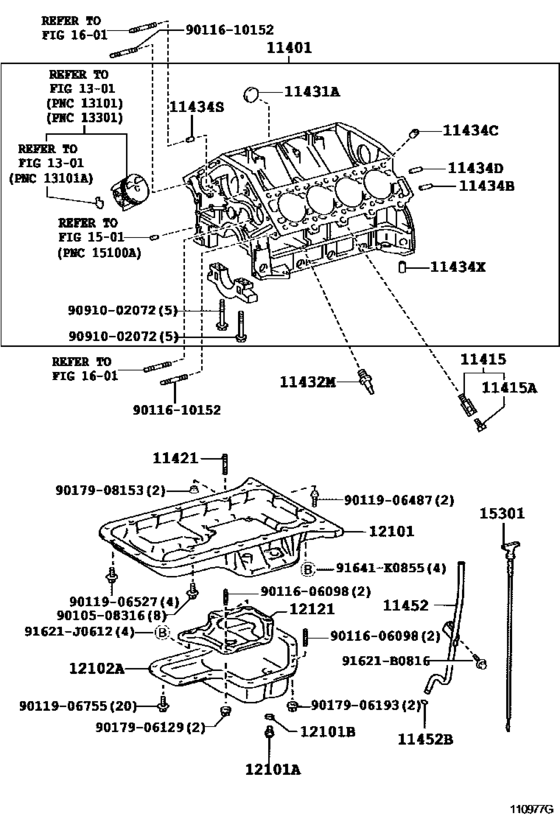

Cylinder Block ([01.1998 - ] (9801- )2UZFE) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-59755 Block Sub-Assy, Cylinder[08.2002 - 05.2005] 2UZFE..UZJ100 |
11401-59755 |
US $5,532.80 |
||
| replacement | |||||
|
11401
|
11401
11401-59756 Block Sub-Assy, Cylinder[08.2002 - 05.2005] 2UZFE..UZJ100 |
11401-59756 |
US $5,532.80 |
||
|
11401
|
11401
11401-59756 Block Sub-Assy, Cylinder[05.2005 -] 2UZFE..UZJ100 |
11401-59756 |
US $5,532.80 |
||
|
11415
|
11415
90910-09095 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90910-09095 |
from US $8.87 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90910-09087 |
from US $3 |
||
|
11421
|
11421
90126-08030 Bolt, Stud(For Oil Pan)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90126-08030 |
US $3.79 |
||
|
11431A
|
11431A
96411-63500 Plug, Tight[08.2002 - 05.2005] 2UZFE..UZJ100 |
96411-63500 |
from US $3.58 |
||
|
11432M
|
11432M
90404-53001 Union(For Cylinder Block)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90404-53001 |
US $6.45 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[08.2002 - 05.2005] 2UZFE..UZJ100 長さ＝２２，外径＝１０ |
90250-10113 |
from US $0.97 |
||
|
11434C
|
11434C
90253-16001 Pin, Straight (For Cylinder Head Set)[08.2002 - 05.2005] 2UZFE..UZJ100 長さ＝２０，外径＝１６ |
90253-16001 |
US $5.20 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[08.2002 - 05.2005] 2UZFE..UZJ100 長さ＝１４，外径＝６ |
90250-06003 |
US $1.61 |
||
|
11434S
|
11434S
90253-11021 Pin, Ring[08.2002 - 05.2005] 2UZFE..UZJ100 |
90253-11021 |
from US $1.41 |
||
|
11434X
|
11434X
90253-11021 Pin, Ring[08.2002 - 05.2005] 2UZFE..UZJ100 |
90253-11021 |
from US $1.41 |
||
|
11452
|
11452
11452-50120 Guide, Oil Level Gage[08.2002 - 01.2004] 2UZFE..UZJ100 |
11452-50120 |
from US $22.48 |
||
|
11452
|
11452
11452-50121 Guide, Oil Level Gage[01.2004 - 05.2005] 2UZFE..UZJ100 |
11452-50121 |
US $38.44 |
||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[08.2002 - 05.2005] 2UZFE..UZJ100 |
96721-19010 |
from US $1.56 |
||
|
12101
|
12101
12111-50091 Pan Sub-Assy, Oil[08.2002 - 12.2004] 2UZFE..UZJ100 |
12111-50091 |
US $645.01 |
||
| replacement | |||||
|
12101
|
12101
12111-50092 Pan Sub-Assy, Oil[08.2002 - 12.2004] 2UZFE..UZJ100 |
12111-50092 |
from US $253.29 |
||
|
12101
|
12101
12111-50092 Pan Sub-Assy, Oil[12.2004 - 05.2005] 2UZFE..UZJ100 |
12111-50092 |
from US $253.29 |
||
|
12101A
|
12101A
90341-12023 Plug(For Oil Pan Drain)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90341-12023 |
from US $4.05 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[08.2002 - 05.2005] 1HDFTE..HDJ101; 2UZFE..UZJ100 |
90430-12031 |
from US $0.82 |
||
|
12102A
|
12102A
12102-50090 Pan Sub-Assy, Oil, No.2[08.2002 - 05.2005] 2UZFE..UZJ100 |
12102-50090 |
from US $168.90 |
||
|
12121
|
12121
12121-50100 Plate, Oil Pan Baffle, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
12121-50100 |
US $53 |
||
|
15301
|
15301
15301-50080 Gage Sub-Assy, Oil Level[08.2002 - 05.2005] 2UZFE..UZJ100 |
15301-50080 |
from US $12.69 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
91641K0855
|
91641K0855
91641-K0855 New Genuine Part |
91641-K0855 |
US $3.40 |
||
|
9010508316
|
9010508316
90105-08316 New Genuine Part |
90105-08316 |
US $2.87 |
||
|
9011606098
|
9011606098
90116-06098 Bolt, Stud(For Oil Pan) |
90116-06098 |
US $2.51 |
||
|
9011610152
|
9011610152
90116-10152 BOLT STUD |
90116-10152 |
US $3.64 |
||
|
9011906487
|
9011906487
90119-06487 New Genuine Part |
90119-06487 |
US $1.31 |
||
|
9011906527
|
9011906527
90119-06527 BOLT WWASHER |
90119-06527 |
from US $0.76 |
||
|
9011906755
|
9011906755
90119-06755 BOLT WWASHER |
90119-06755 |
US $1.25 |
||
|
9017906129
|
9017906129
90179-06129 NUT |
90179-06129 |
US $1.61 |
||
|
9017906193
|
9017906193
90179-06193 New Genuine Part |
90179-06193 |
US $2.15 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9091002072
|
9091002072
90910-02072
Bolt(For Crankshaft Bearing Cap Set)
|
90910-02072 |
— | ||
| replacement | |||||
|
9091002072
|
9091002072
90910-02176 Bolt(For Crankshaft Bearing Cap Set) |
90910-02176 |
from US $4.30 |
||
