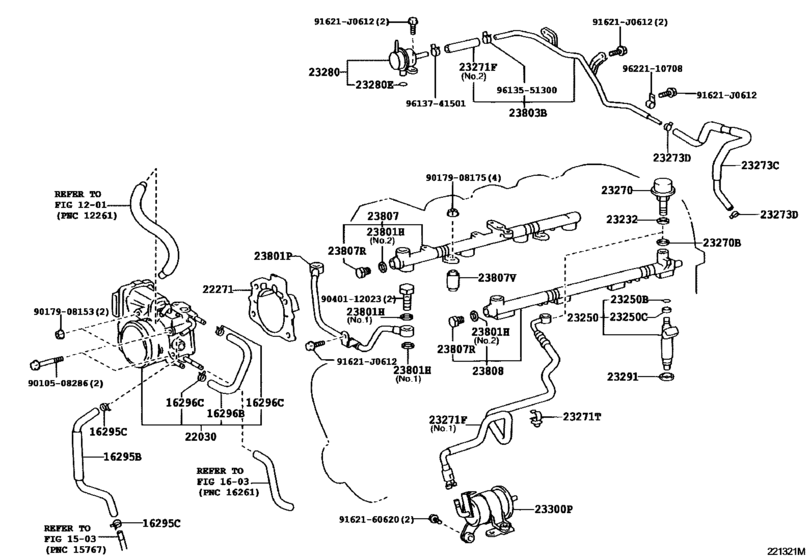

Fuel Injection System ([08.2002 - ] (0208- )2UZFE) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16295B
|
16295B
16295-50070 Hose, Water By-Pass, No.7[08.2002 - 05.2005] 2UZFE..UZJ100 |
16295-50070 |
from US $5.36 |
||
|
16295C
|
16295C
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.2002 - 01.2005] 2UZFE..UZJ100 |
90467-13054 |
from US $0.89 |
||
| replacement | |||||
|
16295C
|
16295C
96135-51300 Clamp, Hose[08.2002 - 01.2005] 2UZFE..UZJ100 |
96135-51300 |
from US $1.86 |
||
|
16295C
|
16295C
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[01.2005 - 05.2005] 2UZFE..UZJ100 |
96137-41501 |
from US $2.09 |
||
|
16296B
|
16296B
16296-50030 Hose, Water By-Pass, No.8[08.2002 - 05.2005] 2UZFE..UZJ100 |
16296-50030 |
from US $5.59 |
||
|
16296C
|
16296C
96135-51300 Clamp, Hose[08.2002 - 05.2005] 2UZFE..UZJ100 |
96135-51300 |
from US $1.86 |
||
|
22030
|
22030
22030-50170 Body Assy, Throttle W/motor[08.2002 - 05.2005] 2UZFE..UZJ100 |
22030-50170 |
US $1,126.94 |
||
|
22271
|
22271
22271-50042 Gasket, Throttle Body[08.2002 - 05.2005] 2UZFE..UZJ100 |
22271-50042 |
from US $16.83 |
||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[08.2002 - 05.2005] 2UZFE..UZJ100 |
23232-41081 |
from US $1.40 |
||
|
23250
|
23250
23209-50040 Injector Assy, Fuel[08.2002 - 05.2005] 2UZFE..UZJ100 |
23209-50040 |
from US $204.73 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90301-07024 |
from US $2.72 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[07.2006 -] 2UZFE..UZJ100 |
90301-07037 |
from US $2.07 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90480-13005 |
from US $2.30 |
||
|
23270
|
23270
23270-50010
Damper Assy, Fuel Pressure Pulsation
[08.2002 - 05.2005] 2UZFE..UZJ100 |
23270-50010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-50012 Damper Assy, Fuel Pressure Pulsation[08.2002 - 05.2005] 2UZFE..UZJ100 |
23270-50012 |
from US $70.79 |
||
|
23270B
|
23270B
90430-12026 Gasket[08.2002 - 05.2005] 2UZFE..UZJ100 |
90430-12026 |
from US $0.80 |
||
|
23271F
|
23271F
23271-50150 Hose, Fuel[08.2002 - 05.2005] 2UZFE..UZJ100 ＮＯ．１ |
23271-50150 |
from US $51.24 |
||
|
23271F
|
23271F
95337-08009 Hose, Fuel[08.2002 - 05.2005] 2UZFE..UZJ100 ＮＯ．２ |
95337-08009 |
US $16.60 |
||
|
23271T
|
23271T
90469-12012 Clamp Or Clip(For Fuel Hose)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90469-12012 |
from US $2.96 |
||
|
23273C
|
23273C
23273-50020 Hose, Fuel, No.2[08.2002 - 05.2005] 2UZFE..UZJ100 |
23273-50020 |
US $19.04 |
||
|
23273D
|
23273D
96132-51100 Clip (For Hose)[08.2002 - 05.2005] 2UZFE..UZJ100 |
96132-51100 |
from US $1.39 |
||
|
23280
|
23280
23280-50050 Regulator Assy, Fuel Pressure[08.2002 - 05.2005] 2UZFE..UZJ100 |
23280-50050 |
from US $74.65 |
||
|
23280E
|
23280E
90301-07037 Ring, O(For Fuel Injector)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90301-07037 |
from US $2.07 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.2002 - 05.2005] 2UZFE..UZJ100 |
23291-41010 |
from US $3.02 |
||
|
23300P
|
23300P
23300-50090 Filter, Fuel(For Efi)[08.2002 - 05.2005] 2UZFE..UZJ100 |
23300-50090 |
from US $66.54 |
||
|
23801H
|
23801H
90430-12026 Gasket[08.2002 - 05.2005] 2UZFE..UZJ100 ＮＯ．１ |
90430-12026 |
from US $0.80 |
||
|
23801H
|
23801H
90430-14008 Gasket(For Water Hole)[08.2002 - 05.2005] 2UZFE..UZJ100 ＮＯ．２ |
90430-14008 |
from US $0.95 |
||
|
23801P
|
23801P
23801-50021 Pipe Sub-Assy, Fuel, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
23801-50021 |
US $49.97 |
||
|
23803B
|
23803B
23803-50120 Pipe Sub-Assy, Fuel, No.3[08.2002 - 05.2005] 2UZFE..UZJ100 |
23803-50120 |
US $64.47 |
||
|
23807
|
23807
23807-50051 Pipe Sub-Assy, Fuel Delivery[08.2002 - 06.2003] 2UZFE..UZJ100 |
23807-50051 |
US $168.90 |
||
| replacement | |||||
|
23807
|
23807
23807-50052 Pipe Sub-Assy, Fuel Delivery[08.2002 - 06.2003] 2UZFE..UZJ100 |
23807-50052 |
US $168.90 |
||
|
23807
|
23807
23807-50052 Pipe Sub-Assy, Fuel Delivery[06.2003 - 05.2005] 2UZFE..UZJ100 |
23807-50052 |
US $168.90 |
||
|
23807R
|
23807R
90341-14032 Plug, W/head Taper Screw, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
90341-14032 |
US $2.61 |
||
|
23807V
|
23807V
90561-08029 Spacer, No.1(For Delivery Pipe)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90561-08029 |
from US $1.79 |
||
|
23808
|
23808
23808-50041
Pipe Sub-Assy, Fuel Delivery, No.2
[08.2002 - 06.2003] 2UZFE..UZJ100 |
23808-50041 |
— | ||
| replacement | |||||
|
23808
|
23808
23808-50042
Pipe Sub-Assy, Fuel Delivery, No.2
[08.2002 - 06.2003] 2UZFE..UZJ100 |
23808-50042 |
— | ||
|
23808
|
23808
23808-50042
Pipe Sub-Assy, Fuel Delivery, No.2
[06.2003 - 05.2005] 2UZFE..UZJ100 |
23808-50042 |
— | ||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9010508286
|
9010508286
90105-08286 New Genuine Part |
90105-08286 |
US $4.66 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9017908175
|
9017908175
90179-08175 New Genuine Part |
90179-08175 |
US $1.61 |
||
|
9040112023
|
9040112023
90401-12023 Bolt, Union(For Fuel Pipe) |
90401-12023 |
US $6.09 |
||
|
9162160620
|
9162160620
91621-60620 Bolt, W/washer(For Repair Actuator Set) |
91621-60620 |
US $0.69 |
||
|
9613551300
|
9613551300
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.86 |
||
|
9613741501
|
9613741501
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96137-41501 |
from US $2.09 |
||
|
9622110708
|
9622110708
96221-10708 New Genuine Part |
96221-10708 |
US $2.33 |
||
