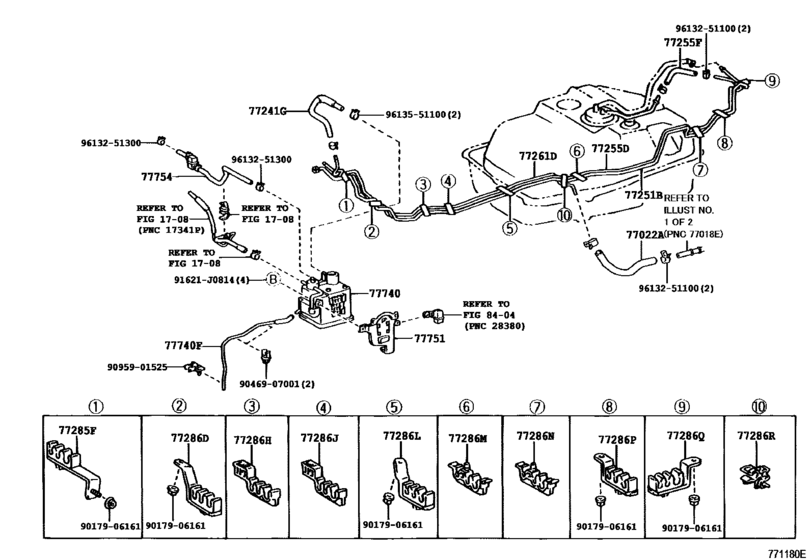

Fuel Tank & Tube ([08.2002 - ] ﾌｭｰｴﾙ ﾁｭｰﾌﾞ (0208- )UZJ100) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77022A
|
77022A
95337-06017 Hose, Fuel(For Fuel Evaporative Separator)[08.2002 - 05.2005] UZJ100 長さ＝１７０ |
95337-06017 |
US $2.80 |
||
|
77241G
|
77241G
77249-60140 Hose, Fuel, No.6[08.2002 - 05.2005] UZJ100 |
77249-60140 |
US $10.13 |
||
|
77251B
|
77251B
77251-60690 Tube, Fuel Main[08.2002 - 05.2005] UZJ100 |
77251-60690 |
US $68.14 |
||
|
77255D
|
77255D
77255-60700 Tube, Fuel Return[08.2002 - 05.2005] UZJ100 |
77255-60700 |
US $54.16 |
||
|
77255F
|
77255F
95337-06030 Hose, Fuel, No.2 (For Main Tube, No.2)[08.2002 - 05.2005] UZJ100 長さ＝２８０ |
95337-06030 |
US $12.75 |
||
|
77261D
|
77261D
77261-60310 Tube, Fuel Tank To Canister[08.2002 - 05.2005] UZJ100 |
77261-60310 |
US $36.40 |
||
|
77285F
|
77285F
77285-60170 Clamp, Fuel Tube, No.1[08.2002 - 05.2005] UZJ100 |
77285-60170 |
US $12.23 |
||
|
77286D
|
77286D
77285-60180 Clamp, Fuel Tube, No.2[08.2002 - 05.2005] UZJ100 |
77285-60180 |
US $12.23 |
||
|
77286H
|
77286H
77286-60040 Clamp, Fuel Tube, No.3[08.2002 - 05.2005] UZJ100 |
77286-60040 |
US $12.72 |
||
|
77286J
|
77286J
77286-60040 Clamp, Fuel Tube, No.3[08.2002 - 05.2005] UZJ100 |
77286-60040 |
US $12.72 |
||
|
77286L
|
77286L
77289-60040 Clamp, Fuel Tube, No.5[08.2002 - 05.2005] UZJ100 |
77289-60040 |
US $8.44 |
||
|
77286M
|
77286M
77298-60010 Clamp, Fuel Tube, No.6[08.2002 - 05.2005] UZJ100 |
77298-60010 |
US $11.11 |
||
|
77286N
|
77286N
77298-60010 Clamp, Fuel Tube, No.6[08.2002 - 05.2005] UZJ100 |
77298-60010 |
US $11.11 |
||
|
77286P
|
77286P
77299-60010 Clamp, Fuel Tube, No.8[08.2002 - 05.2005] UZJ100 |
77299-60010 |
US $8.44 |
||
|
77286Q
|
77286Q
77273-60080 Clamp, Fuel Tube, No.9[08.2002 - 05.2005] UZJ100 |
77273-60080 |
US $10.34 |
||
|
77286R
|
77286R
77298-60030 Clamp, Fuel Tube, No.10[08.2002 - 05.2005] UZJ100 |
77298-60030 |
US $4.02 |
||
|
77740
|
77740
77740-60421
Canister Assy, Charcoal
[08.2002 - 05.2005] UZJ100 |
77740-60421 |
— | ||
|
77740F
|
77740F
77747-60031 Tube, Fuel, No.1(For Charcoal Canister)[08.2002 - 05.2005] UZJ100 |
77747-60031 |
US $15.90 |
||
|
77751
|
77751
77751-60260 Bracket, Charcoal Canister Base[08.2002 - 05.2005] UZJ100 |
77751-60260 |
US $23.15 |
||
|
77754
|
77754
77754-60231 Hose, Charcoal Canister Outlet, No.1[08.2002 - 05.2005] UZJ100 |
77754-60231 |
US $29.18 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
US $1.08 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
US $1.25 |
||
|
9046907001
|
9046907001
90469-07001 New Genuine Part |
90469-07001 |
US $1.25 |
||
|
9095901525
|
9095901525
90959-01525 New Genuine Part |
90959-01525 |
US $3.14 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $2.15 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $2.15 |
||
|
9613551100
|
9613551100
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $2.33 |
