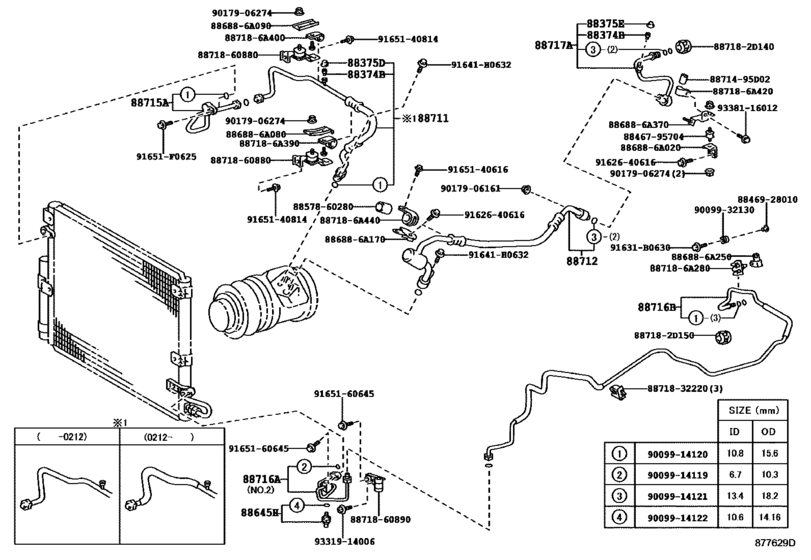

Heating & Air Conditioning - Cooler Piping ([08.2002 - ] ﾌﾛﾝﾄ(ｼﾝｸﾞﾙ ｴｱｺﾝ) (0208- )VX) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[05.2005 -] UZJ100 |
88374-30010 |
from US $3.08 |
||
|
88375D
|
88375D
88375-30280 Cap, Service Valve (For Cooler Pipe)[08.2002 - 05.2005] HDJ101,UZJ100 |
88375-30280 |
from US $0.98 |
||
|
88375E
|
88375E
88375-30290 Cap, Service Valve (For Cooler Pipe)[08.2002 - 05.2005] HDJ101,UZJ100 |
88375-30290 |
from US $0.87 |
||
|
88645H
|
88645H
88645-34010 Switch, Pressure[08.2002 - 05.2005] HDJ101;UZJ100..VX |
88645-34010 |
from US $32.51 |
||
| replacement | |||||
|
88645H
|
88645H
88645-04040 Switch, Pressure[08.2002 - 05.2005] HDJ101;UZJ100..VX |
88645-04040 |
US $120.41 |
||
|
88711
|
88711
88711-60470 Hose, Cooler Refrigerant Discharge, No.1[08.2002 - 12.2002] UZJ100 |
88711-60470 |
from US $206.02 |
||
|
88711
|
88711
88711-60471 Hose, Cooler Refrigerant Discharge, No.1[12.2002 - 05.2005] UZJ100 |
88711-60471 |
from US $212.65 |
||
|
88712
|
88712
88712-60810 Hose, Cooler Refrigerant Suction, No.1[08.2002 - 05.2005] UZJ100 |
88712-60810 |
US $206.75 |
||
|
88715A
|
88715A
88715-60112 Pipe, Cooler Refrigerant Discharge, A[08.2002 - 05.2005] UZJ100 |
88715-60112 |
from US $62.05 |
||
|
88716A
|
88716A
88716-6A850 Pipe, Cooler Refrigerant Liquid, A[08.2002 - 05.2005] HDJ101;UZJ100..VX ＮＯ．１ |
88716-6A850 |
from US $34.83 |
||
|
88716A
|
88716A
88726-60421 Pipe, Cooler Refrigerant Liquid, A[08.2002 - 05.2005] HDJ101;UZJ100..VX ＮＯ．２ |
88726-60421 |
US $83.64 |
||
|
88716A
|
88716A
88726-60430
Pipe, Cooler Refrigerant Liquid, A
[08.2002 - 05.2005] HDJ101;UZJ100..VX ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
88726-60430 |
— | ||
|
88716B
|
88716B
88716-6B071 Pipe, Cooler Refrigerant Liquid, B[08.2002 - 05.2005] HDJ101;UZJ100..VX |
88716-6B071 |
US $163.07 |
||
|
88716B
|
88716B
88726-60440 Pipe, Cooler Refrigerant Liquid, B[08.2002 - 05.2005] HDJ101;UZJ100..VX ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
88726-60440 |
from US $29.72 |
||
|
88717A
|
88717A
88717-6A290 Pipe, Cooler Refrigerant Suction, A[08.2002 - 05.2005] UZJ100..VX |
88717-6A290 |
US $100.46 |
||
|
91631B0630
|
91631B0630
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.69 |
||
|
91641H0632
|
91641H0632
91641-H0632 BOLT WWASHER |
91641-H0632 |
US $1.60 |
||
|
91651F0625
|
91651F0625
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
886886A020
|
886886A020
88688-6A020
Bracket, Cooler Diaphragm
|
88688-6A020 |
— | ||
|
886886A080
|
886886A080
88688-6A080
Bracket, Cooler Diaphragm
|
88688-6A080 |
— | ||
|
886886A090
|
886886A090
88688-6A090
Bracket, Cooler Diaphragm
|
88688-6A090 |
— | ||
|
886886A170
|
886886A170
88688-6A170
Bracket, Cooler Diaphragm
|
88688-6A170 |
— | ||
|
886886A250
|
886886A250
88688-6A250
Bracket, Cooler Diaphragm
|
88688-6A250 |
— | ||
|
886886A370
|
886886A370
88688-6A370
Bracket, Cooler Diaphragm
|
88688-6A370 |
— | ||
|
887182D140
|
887182D140
88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D140 |
from US $6.46 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.57 |
||
|
887186A280
|
887186A280
88718-6A280
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A280 |
— | ||
|
887186A390
|
887186A390
88718-6A390
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A390 |
— | ||
|
887186A400
|
887186A400
88718-6A400
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A400 |
— | ||
|
887186A420
|
887186A420
88718-6A420
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A420 |
— | ||
| replacement | |||||
|
887186A420
|
887186A420
88718-6A110
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A110 |
— | ||
|
887186A440
|
887186A440
88718-6A440
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A440 |
— | ||
|
8871495D02
|
8871495D02
88714-95D02
Hose, Cooler Refrigerant Liquid, No.1
|
88714-95D02 |
— | ||
|
8846795704
|
8846795704
88467-95704 Cushion, Cooler Condenser, No.1 |
88467-95704 |
US $3.72 |
||
|
8846928010
|
8846928010
88469-28010
Collar, Condenser Bracket, No.1
|
88469-28010 |
— | ||
|
8857860280
|
8857860280
88578-60280
Paking, Cooler Air Duct
|
88578-60280 |
— | ||
|
8871832220
|
8871832220
88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2 |
88718-32220 |
from US $1.43 |
||
|
8871860880
|
8871860880
88718-60880 Clamp, Piping |
88718-60880 |
US $29.32 |
||
|
8871860890
|
8871860890
88718-60890
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60890 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.62 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.67 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.03 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.52 |
||
|
9009914122
|
9009914122
90099-14122 O-RING |
90099-14122 |
from US $1.18 |
||
|
9009932130
|
9009932130
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
from US $1.54 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.78 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9162640616
|
9162640616
91626-40616 New Genuine Part |
91626-40616 |
US $1.38 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165160645
|
9165160645
91651-60645 BOLT |
91651-60645 |
US $1.79 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.51 |
||
