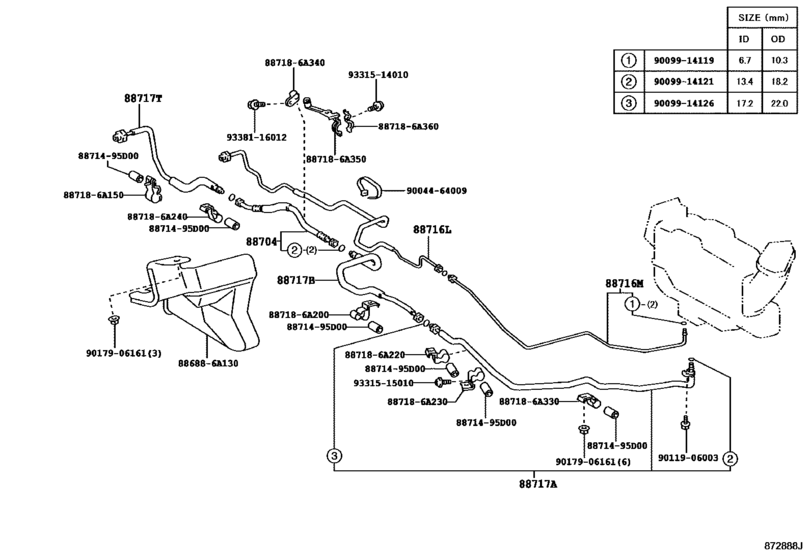

Heating & Air Conditioning - Cooler Piping ([01.1998 - ] ﾘﾔ (9801- )UZJ100) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88704
|
88704
88704-60230 Hose Sub-Assy, Suction[08.2002 - 05.2005] HDJ101,UZJ100 |
88704-60230 |
US $190.44 |
||
|
88716L
|
88716L
88726-60660 Pipe, Cooler Refrigerant Liquid, L[08.2002 - 05.2005] HDJ101;UZJ100..VX |
88726-60660 |
US $153.75 |
||
|
88717A
|
88717A
88717-6A290 Pipe, Cooler Refrigerant Suction, A[08.2002 - 05.2005] UZJ100..VX |
88717-6A290 |
US $100.46 |
||
|
88717B
|
88717B
88717-6A230 Pipe, Cooler Refrigerant Suction, B[08.2002 - 05.2005] HDJ101;UZJ100..VX ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
88717-6A230 |
US $454.27 |
||
|
88717T
|
88717T
88717-6A270 Pipe, Cooler Refrigerant Suction, T[08.2002 - 05.2005] HDJ101,UZJ100 |
88717-6A270 |
US $217.60 |
||
|
886886A130
|
886886A130
88688-6A130
Bracket, Cooler Diaphragm
|
88688-6A130 |
— | ||
|
887186A150
|
887186A150
88718-6A150 Pipe, Cooler Refrigerant Suction, No.2 |
88718-6A150 |
US $8.74 |
||
|
887186A200
|
887186A200
88718-6A200
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A200 |
— | ||
|
887186A220
|
887186A220
88718-6A220
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A220 |
— | ||
|
887186A230
|
887186A230
88718-6A230
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A230 |
— | ||
|
887186A240
|
887186A240
88718-6A240
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A240 |
— | ||
|
887186A330
|
887186A330
88718-6A330
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A330 |
— | ||
|
887186A340
|
887186A340
88718-6A340
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A340 |
— | ||
|
887186A350
|
887186A350
88718-6A350
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A350 |
— | ||
|
887186A360
|
887186A360
88718-6A360
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A360 |
— | ||
|
8871495D00
|
8871495D00
88714-95D00 Hose, Cooler Refrigerant Liquid, No.1 |
88714-95D00 |
US $2.66 |
||
|
9004464009
|
9004464009
90044-64009 CLAMP |
90044-64009 |
US $1.79 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.62 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.67 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.52 |
||
|
9009914126
|
9009914126
90099-14126 OIL SEAL |
90099-14126 |
from US $1.60 |
||
|
9011906003
|
9011906003
90119-06003 New Genuine Part |
90119-06003 |
US $1.97 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.78 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.74 |
||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.25 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.51 |
||
