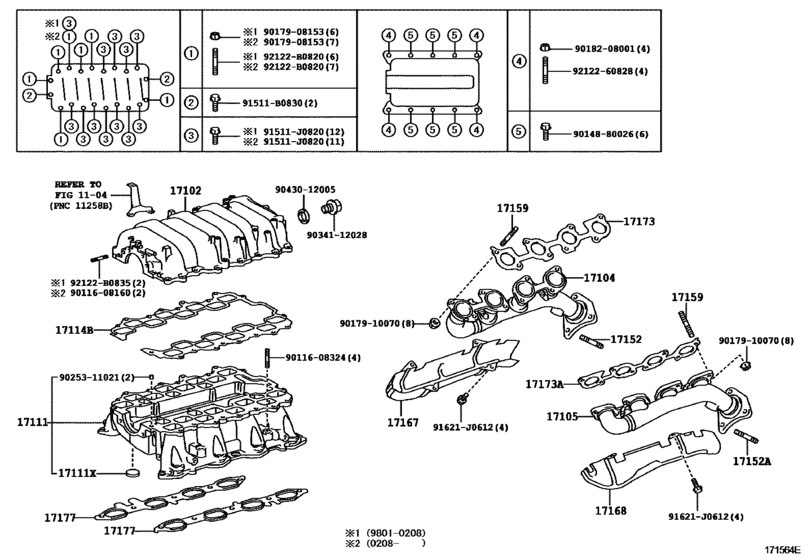

Manifold ([01.1998 - ] (9801- )2UZFE) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17102
|
17102
17102-50020 Manifold Sub-Assy, Intake, Upper[08.2002 - 06.2004] 2UZFE..UZJ100 |
17102-50020 |
US $662.48 |
||
| replacement | |||||
|
17102
|
17102
17102-50041 Manifold Sub-Assy, Intake, Upper[08.2002 - 06.2004] 2UZFE..UZJ100 |
17102-50041 |
US $662.48 |
||
|
17102
|
17102
17102-50021 Manifold Sub-Assy, Intake, Upper[06.2004 - 05.2005] 2UZFE..UZJ100 |
17102-50021 |
US $662.48 |
||
| replacement | |||||
|
17102
|
17102
17102-50041 Manifold Sub-Assy, Intake, Upper[06.2004 - 05.2005] 2UZFE..UZJ100 |
17102-50041 |
US $662.48 |
||
|
17102
|
17102
17102-50041 Manifold Sub-Assy, Intake, Upper[01.2006 -] 2UZFE..UZJ100 |
17102-50041 |
US $662.48 |
||
|
17104
|
17104
17104-50121 Manifold Sub-Assy, Exhaust, Rh[08.2002 - 05.2005] 2UZFE..UZJ100 |
17104-50121 |
from US $449.75 |
||
|
17105
|
17105
17105-50121 Manifold Sub-Assy, Exhaust, Lh[08.2002 - 05.2005] 2UZFE..UZJ100 |
17105-50121 |
from US $493.05 |
||
|
17111
|
17111
17101-50020 Manifold, Intake[08.2002 - 05.2005] 2UZFE..UZJ100 |
17101-50020 |
US $870.69 |
||
| replacement | |||||
|
17111
|
17111
17101-50040 Manifold, Intake[08.2002 - 05.2005] 2UZFE..UZJ100 |
17101-50040 |
US $870.69 |
||
|
17111
|
17111
17101-50040 Manifold, Intake[01.2006 -] 2UZFE..UZJ100 |
17101-50040 |
US $870.69 |
||
|
17111X
|
17111X
96411-42000 Plug, Tight, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
96411-42000 |
from US $2.66 |
||
|
17114B
|
17114B
17116-50010 Gasket, Intake Flange[08.2002 - 05.2005] 2UZFE..UZJ100 |
17116-50010 |
from US $12.56 |
||
|
17152
|
17152
90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90126-10006 |
from US $4.35 |
||
|
17152A
|
17152A
90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90126-10006 |
from US $4.35 |
||
|
17159
|
17159
90126-10015 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90126-10015 |
from US $2.74 |
||
|
17167
|
17167
17167-50100 Insulator, Exhaust Manifold Heat, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
17167-50100 |
from US $58.67 |
||
|
17168
|
17168
17168-50090 Insulator, Exhaust Manifold Heat, No.2[08.2002 - 05.2005] 2UZFE..UZJ100 |
17168-50090 |
from US $44.16 |
||
|
17173
|
17173
17173-50021 Gasket, Exhaust Manifold To Head[08.2002 - 05.2005] 2UZFE..UZJ100 |
17173-50021 |
from US $27 |
||
|
17173A
|
17173A
17173-50021 Gasket, Exhaust Manifold To Head[08.2002 - 05.2005] 2UZFE..UZJ100 |
17173-50021 |
from US $27 |
||
|
17177
|
17177
17171-50020 Gasket, Intake Manifold To Head, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
17171-50020 |
from US $18.07 |
||
|
91511B0830
|
91511B0830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $0.80 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
92122B0820
|
92122B0820
92122-B0820 Bolt, Stud(For Water Outlet) |
92122-B0820 |
US $1.22 |
||
|
92122B0835
|
92122B0835
92122-B0835
Bolt, Stud
|
92122-B0835 |
— | ||
|
9011608160
|
9011608160
90116-08160 Bolt, Stud(For Manifold To Carburetor) |
90116-08160 |
US $1.60 |
||
|
9011608324
|
9011608324
90116-08324 New Genuine Part |
90116-08324 |
US $1.49 |
||
|
9014880026
|
9014880026
90148-80026 Bolt |
90148-80026 |
US $6.47 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.31 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9018208001
|
9018208001
90182-08001 New Genuine Part |
90182-08001 |
US $1.16 |
||
|
9025311021
|
9025311021
90253-11021 Pin, Ring |
90253-11021 |
from US $1.41 |
||
|
9034112028
|
9034112028
90341-12028 PLUG STRAIGHT SCREW |
90341-12028 |
US $3.35 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.67 |
||
|
9212260828
|
9212260828
92122-60828 New Genuine Part |
92122-60828 |
US $3.05 |
||
