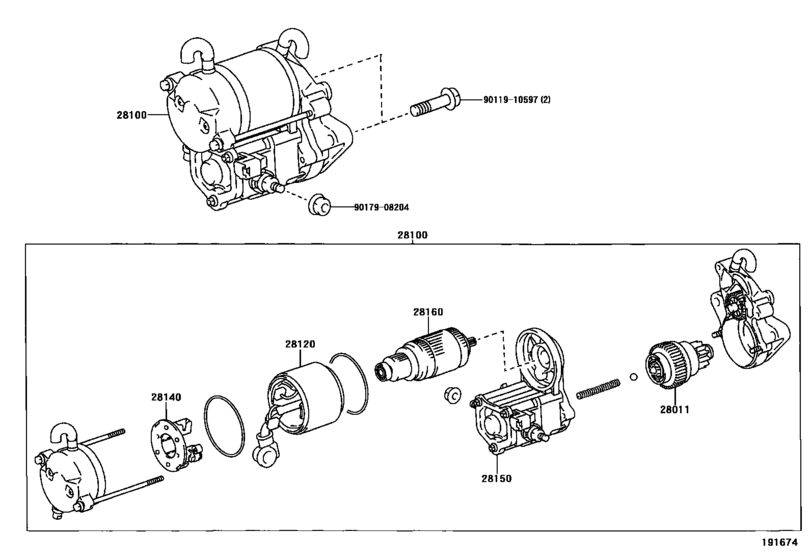

Starter ([08.2002 - ] 12V 1.4KW (0208- )2UZFE) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-50050 Clutch Sub-Assy, Starter[08.2002 - 10.2004] 2UZFE..UZJ100 |
28011-50050 |
from US $157.45 |
||
|
28011
|
28011
28011-50080 Clutch Sub-Assy, Starter[10.2004 - 05.2005] 2UZFE..UZJ100 |
28011-50080 |
from US $83.30 |
||
|
28100
|
28100
28100-50090 Starter Assy[08.2002 - 05.2005] 2UZFE..UZJ100 １２Ｖ １．４ＫＷ |
28100-50090 |
US $1,046.86 |
||
| replacement | |||||
|
28100
|
28100
28100-50091 Starter Assy[08.2002 - 05.2005] 2UZFE..UZJ100 １２Ｖ １．４ＫＷ |
28100-50091 |
from US $562.21 |
||
|
28120
|
28120
28120-50040
Yoke Assy, Starter
[08.2002 - 05.2005] 2UZFE..UZJ100 |
28120-50040 |
— | ||
|
28140
|
28140
28140-76070 Holder Assy, Starter Brush[08.2002 - 05.2005] 2UZFE..UZJ100 |
28140-76070 |
from US $17.12 |
||
|
28150
|
28150
28150-50080 Switch Assy, Magnet Starter[08.2002 - 10.2004] 2UZFE..UZJ100 |
28150-50080 |
US $224.22 |
||
|
28150
|
28150
28150-50090 Switch Assy, Magnet Starter[10.2004 - 05.2005] 2UZFE..UZJ100 |
28150-50090 |
US $154.34 |
||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[08.2002 - 05.2005] 2UZFE..UZJ100 |
28160-74070 |
— | ||
|
9011910597
|
9011910597
90119-10597 New Genuine Part |
90119-10597 |
US $3.32 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
