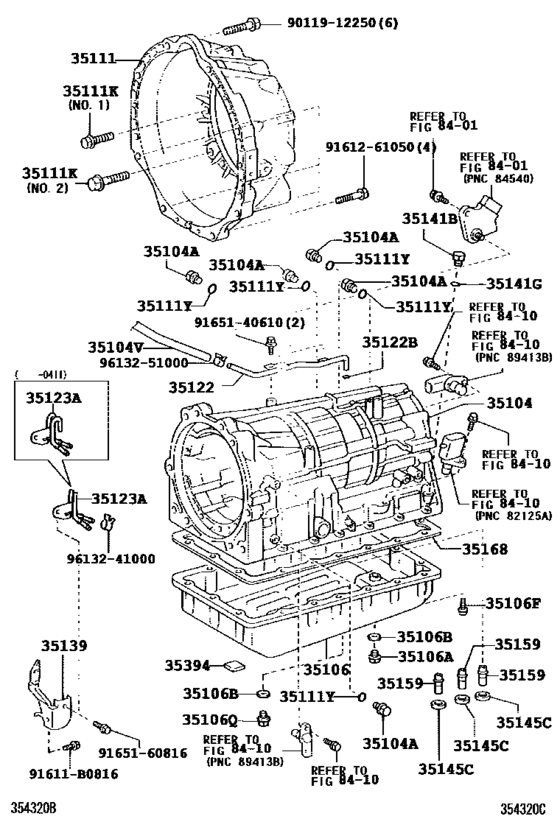

Transmission Case & Oil Pan (Atm) ([08.2003 - ] A750F (0308- )UZJ100) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35104
|
35104
35104-60210 Case Sub-Assy, Automatic Transmission[08.2002 - 08.2003] UZJ100 |
35104-60210 |
US $1,387.57 |
||
|
35104
|
35104
35104-60220 Case Sub-Assy, Automatic Transmission[08.2003 - 09.2004] UZJ100 |
35104-60220 |
US $1,391.94 |
||
| replacement | |||||
|
35104
|
35104
35104-60221 Case Sub-Assy, Automatic Transmission[08.2003 - 09.2004] UZJ100 |
35104-60221 |
US $607.15 |
||
|
35104
|
35104
35104-60221 Case Sub-Assy, Automatic Transmission[09.2004 - 05.2005] UZJ100 |
35104-60221 |
US $607.15 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
90341-08001 |
from US $1.48 |
||
|
35104V
|
35104V
90445-11096 Hose (For Breather Plug)[08.2002 - 08.2003] UZJ100 |
90445-11096 |
US $6.29 |
||
|
35104V
|
35104V
90445-11156 Hose (For Breather Plug)[08.2003 - 05.2005] UZJ100 |
90445-11156 |
US $8.15 |
||
|
35106
|
35106
35106-60160 Pan Sub-Assy, Automatic Transmission Oil[08.2002 - 08.2003] UZJ100 |
35106-60160 |
US $101.92 |
||
|
35106
|
35106
35106-60180 Pan Sub-Assy, Automatic Transmission Oil[08.2003 - 05.2005] UZJ100 |
35106-60180 |
from US $74.14 |
||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[08.2003 - 05.2005] UZJ100 |
90341-10011 |
from US $1.79 |
||
|
35106A
|
35106A
90341-10018
Plug Sub-Assy, Drain (Atm)
[08.2002 - 08.2003] UZJ100 |
90341-10018 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[08.2002 - 08.2003] UZJ100 |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[08.2003 - 05.2005] UZJ100 |
35178-30010 |
from US $1.63 |
||
|
35106B
|
35106B
35178-50010
Gasket, Drain Plug (Atm)
[08.2002 - 08.2003] UZJ100 |
35178-50010 |
— | ||
| replacement | |||||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[08.2002 - 08.2003] UZJ100 |
35178-30010 |
from US $1.63 |
||
|
35106F
|
35106F
90119-06117
Bolt (For Automatic Transmission Oil Pan)
[08.2002 - 05.2005] HDJ101,UZJ100 |
90119-06117 |
— | ||
| replacement | |||||
|
35106F
|
35106F
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[08.2002 - 05.2005] HDJ101,UZJ100 |
90119-06173 |
from US $0.74 |
||
|
35106F
|
35106F
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[10.2006 -] HDJ101,UZJ100 |
90119-06173 |
from US $0.74 |
||
|
35106Q
|
35106Q
90341-10021 Plug, Drain(Hv) (Check)[08.2003 - 05.2005] UZJ100 |
90341-10021 |
from US $2.01 |
||
|
35111
|
35111
35111-60130 Housing, Automatic Transmission[08.2002 - 05.2005] UZJ100 |
35111-60130 |
US $331.97 |
||
|
35111K
|
35111K
90119-10232 Bolt (For Transmission Housing & Case Setting)[02.2004 - 05.2005] HDJ101,UZJ100 ＊１０−１．５ＰＸ３５−３０,ＮＯ．１ |
90119-10232 |
US $1.97 |
||
|
35111K
|
35111K
90119-10947 Bolt (For Transmission Housing & Case Setting)[02.2004 - 05.2005] HDJ101,UZJ100 ＊１０−１．５０ＰＸ３５−２９．３,ＮＯ．１ |
90119-10947 |
from US $0.93 |
||
|
35111K
|
35111K
90119-12255 Bolt (For Transmission Housing & Case Setting)[08.2002 - 02.2003] HDJ101,UZJ100 ＊１２−１．７５ＰＸ４５−３０,ＮＯ．２ |
90119-12255 |
US $2.04 |
||
|
35111K
|
35111K
90119-12378 Bolt (For Transmission Housing & Case Setting)[02.2003 - 05.2005] HDJ101,UZJ100 ＊１２−１．７５ＰＸ３８―３０,ＮＯ．２ |
90119-12378 |
from US $1.48 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
90301-06196 |
from US $2.45 |
||
|
35122
|
35122
35122-60020 Tube, Breather (For Automatic Transaxle)[08.2002 - 05.2005] HDJ101,UZJ100 |
35122-60020 |
US $27.66 |
||
|
35122B
|
35122B
90301-04014 O Ring, Transmission Breather[08.2002 - 05.2005] HDJ101,UZJ100 |
90301-04014 |
US $1.22 |
||
|
35123A
|
35123A
35123-60040 Skirt, Transmission Breather[08.2003 - 11.2004] UZJ100 |
35123-60040 |
US $7.28 |
||
| replacement | |||||
|
35123A
|
35123A
35123-60060 Skirt, Transmission Breather[08.2003 - 11.2004] UZJ100 |
35123-60060 |
US $7.28 |
||
|
35123A
|
35123A
35123-60060 Skirt, Transmission Breather[11.2004 - 05.2005] UZJ100 |
35123-60060 |
US $7.28 |
||
|
35123A
|
35123A
35123-60070
Skirt, Transmission Breather
[05.2005 -] UZJ100 |
35123-60070 |
— | ||
|
35139
|
35139
35139-60020 Bracket, Oil Filler Tube[08.2002 - 05.2005] UZJ100 |
35139-60020 |
US $9.03 |
||
|
35141B
|
35141B
90341-14011 Plug, Automatic Transmission Case[08.2003 - 05.2005] UZJ100 |
90341-14011 |
from US $3.14 |
||
|
35141G
|
35141G
90301-11006 O Ring, Transaxle Case Elbow[08.2003 - 05.2005] UZJ100 |
90301-11006 |
from US $2.43 |
||
|
35145C
|
35145C
35145-60010 Gasket, Transaxle Case[08.2002 - 08.2003] UZJ100 |
35145-60010 |
US $6.12 |
||
| replacement | |||||
|
35145C
|
35145C
35145-60020 Gasket, Transaxle Case[08.2002 - 08.2003] UZJ100 |
35145-60020 |
from US $6.45 |
||
|
35145C
|
35145C
35145-60020 Gasket, Transaxle Case[08.2003 - 05.2005] UZJ100 |
35145-60020 |
from US $6.45 |
||
|
35159
|
35159
35159-60010 Gasket, Brake Drum[08.2002 - 05.2005] HDJ101,UZJ100 |
35159-60010 |
from US $5.59 |
||
|
35168
|
35168
35168-60010 Gasket, Automatic Transmission Oil Pan[08.2002 - 05.2005] HDJ101,UZJ100 |
35168-60010 |
from US $13.98 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.2002 - 05.2005] HDJ101,UZJ100 |
35394-30011 |
from US $5.43 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9011912250
|
9011912250
90119-12250 Bolt(For Transaxle & Engine Setting) |
90119-12250 |
from US $1.56 |
||
|
9161261050
|
9161261050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.25 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9613241000
|
9613241000
96132-41000 Clip, No.1(For Idle-Up Hose) |
96132-41000 |
from US $1.43 |
||
|
9613251000
|
9613251000
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.44 |
||
