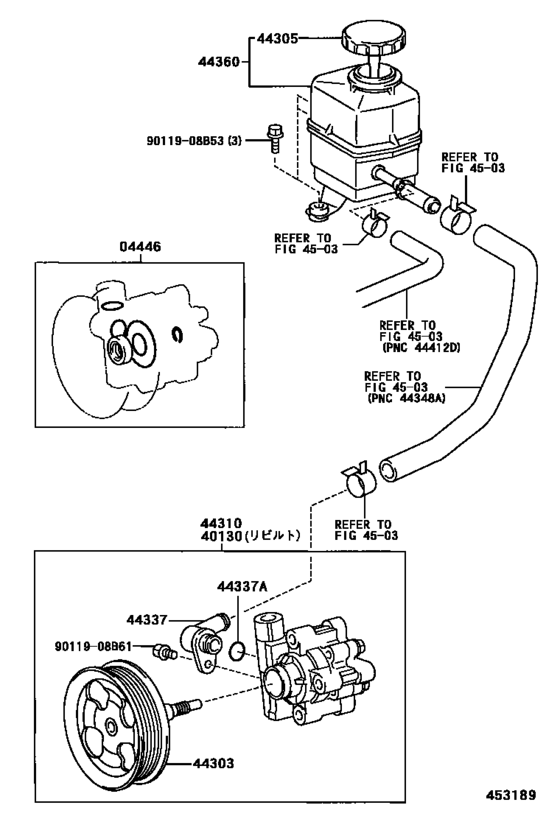

Vane Pump & Reservoir (Power Steering) ([08.2002 - ] (0208- )UZJ100) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-60120
Gasket Kit, Power Steering Pump
[08.2002 - 05.2005] UZJ100 |
04446-60120 |
— | ||
| replacement | |||||
|
04446
|
04446
04446-60200 Gasket Kit, Power Steering Pump[08.2002 - 05.2005] UZJ100 |
04446-60200 |
from US $18.53 |
||
|
04446
|
04446
04446-60200 Gasket Kit, Power Steering Pump[10.2005 -] UZJ100 |
04446-60200 |
from US $18.53 |
||
|
40130
|
40130
40130-60390 Pump Assy,vane Rebuilt[08.2002 - 05.2005] UZJ100 |
40130-60390 |
US $895.44 |
||
| replacement | |||||
|
40130
|
40130
44310-60390 Pump Assy, Vane[08.2002 - 05.2005] UZJ100 |
44310-60390 |
from US $847.67 |
||
|
44303
|
44303
44303-60010 Shaft Sub-Assy, W/rotor[08.2002 - 05.2005] UZJ100 マーク無し |
44303-60010 |
US $96.10 |
||
|
44305
|
44305
44305-32020 Cap Sub-Assy, Vane Pump Oil Reservoir[08.2002 - 05.2005] UZJ100 |
44305-32020 |
US $19.80 |
||
| replacement | |||||
|
44305
|
44305
44305-32040 Cap Sub-Assy, Vane Pump Oil Reservoir[08.2002 - 05.2005] UZJ100 |
44305-32040 |
from US $14.17 |
||
|
44310
|
44310
44310-60390 Pump Assy, Vane[08.2002 - 05.2005] UZJ100 |
44310-60390 |
from US $847.67 |
||
|
44337
|
44337
44337-60140 Union, Power Steering Suction Port[08.2002 - 05.2005] UZJ100 |
44337-60140 |
US $25.19 |
||
|
44337A
|
44337A
90301-15025 Ring, O(For Power Steering Suction Port)[08.2002 - 05.2005] HDJ101,UZJ100 |
90301-15025 |
from US $2.13 |
||
|
44360
|
44360
44360-60210 Reservoir Assy, Vane Pump Oil[08.2002 - 05.2005] UZJ100 |
44360-60210 |
from US $164.80 |
||
|
9011908B53
|
9011908B53
90119-08B53 New Genuine Part |
90119-08B53 |
US $1.75 |
||
| replacement | |||||
|
9011908B53
|
9011908B53
90119-08507 New Genuine Part |
90119-08507 |
US $1.61 |
||
|
9011908B61
|
9011908B61
90119-08B61 New Genuine Part |
90119-08B61 |
US $0.87 |
||
