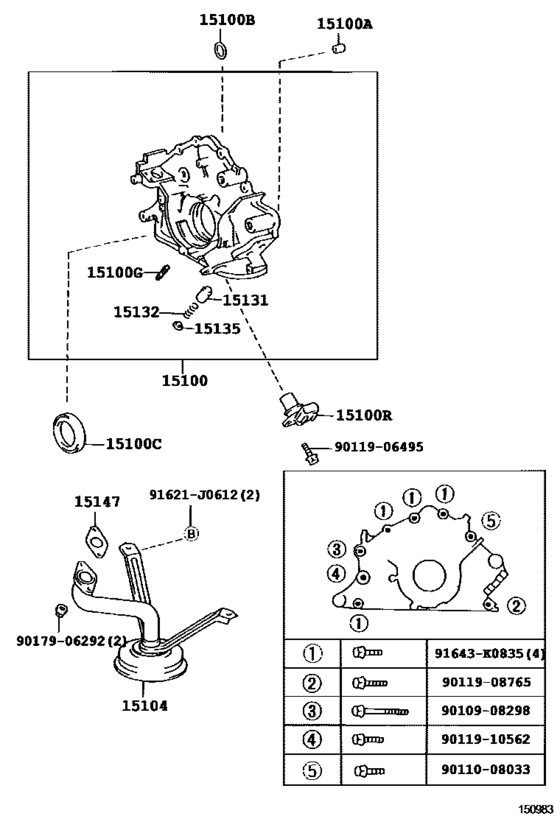

Engine Oil Pump ([05.2005 - ] (0505- )2UZFE) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- UZJ100
- grade
- CYG
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-50050 Pump Assy, Oil[08.2002 - 05.2005] 2UZFE..UZJ100 |
15100-50050 |
from US $178.85 |
||
|
15100A
|
15100A
90253-13017 Pin, Ring W/head[08.2002 - 05.2005] 2UZFE..UZJ100 |
90253-13017 |
from US $1.31 |
||
|
15100B
|
15100B
96721-24025 Ring, O(For Oil Seal Retainer)[08.2002 - 05.2005] 2UZFE..UZJ100 |
96721-24025 |
from US $2.15 |
||
|
15100C
|
15100C
90311-43006 Seal(For Oil Pump)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90311-43006 |
from US $6.45 |
||
|
15100G
|
15100G
16193-15010 Bolt,stud(For Oil Pump)[05.2005 -] 2UZFE..UZJ100 |
16193-15010 |
US $6.45 |
||
|
15100R
|
15100R
90919-05035 Sensor, Crank Position[08.2002 - 05.2005] 2UZFE..UZJ100 |
90919-05035 |
from US $73.84 |
||
|
15104
|
15104
15104-50160 Strainer Sub-Assy, Oil[08.2002 - 05.2005] 2UZFE..UZJ100 |
15104-50160 |
from US $65.32 |
||
|
15131
|
15131
15131-24010 Valve, Oil Pump Relief[08.2002 - 05.2005] 2UZFE..UZJ100 |
15131-24010 |
from US $3.88 |
||
|
15132
|
15132
15132-62010 Spring, Oil Pump Relief Valve[08.2002 - 05.2005] 2UZFE..UZJ100 |
15132-62010 |
US $3.93 |
||
|
15135
|
15135
15135-15010 Retainer, Oil Pump Relief Valve[08.2002 - 05.2005] 2UZFE..UZJ100 |
15135-15010 |
US $5.38 |
||
|
15147
|
15147
15147-50011 Gasket, Oil Strainer[08.2002 - 05.2005] 2UZFE..UZJ100 |
15147-50011 |
from US $2.38 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
91643K0835
|
91643K0835
91643-K0835 BOLT WWASHER |
91643-K0835 |
US $1.61 |
||
|
9010908298
|
9010908298
90109-08298 New Genuine Part |
90109-08298 |
US $4.51 |
||
|
9011008033
|
9011008033
90110-08033 New Genuine Part |
90110-08033 |
US $1.16 |
||
|
9011906495
|
9011906495
90119-06495 New Genuine Part |
90119-06495 |
US $0.76 |
||
|
9011908765
|
9011908765
90119-08765 New Genuine Part |
90119-08765 |
US $1.46 |
||
|
9011910562
|
9011910562
90119-10562
New Genuine Part
|
90119-10562 |
— | ||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.79 |
