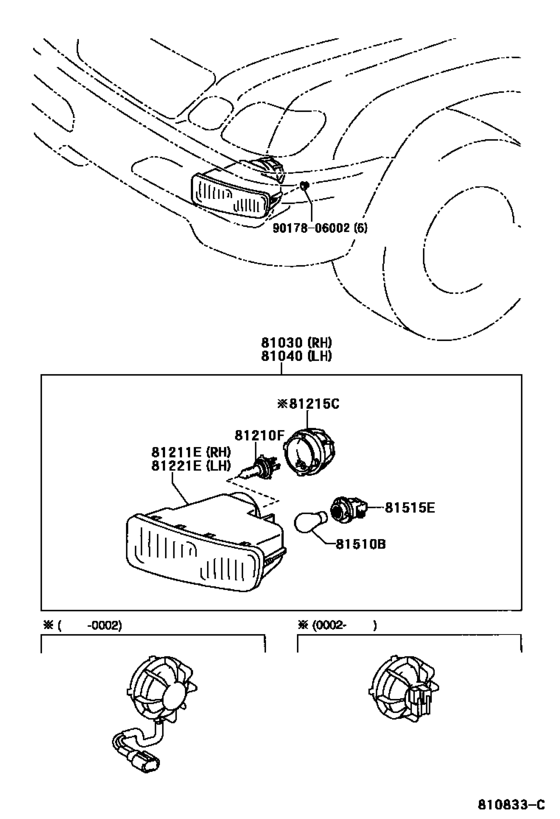

Front Turn Signal Lamp ([01.1999 - ] (9901- )CYG) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- UZJ100
- grade
- CYG
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81030
|
81030
81030-60030 Lamp Assy, Front Fog And Turn Signal, Rh[08.2002 - 05.2005] UZJ100..CYG |
81030-60030 |
US $511.06 |
||
|
81030
|
81030
81030-60050 Lamp Assy, Front Fog And Turn Signal, Rh[05.2005 - 11.2006] UZJ100..CYG |
81030-60050 |
US $511.06 |
||
| replacement | |||||
|
81030
|
81030
81030-60051 Lamp Assy, Front Fog And Turn Signal, Rh[05.2005 - 11.2006] UZJ100..CYG |
81030-60051 |
US $511.06 |
||
|
81030
|
81030
81030-60051 Lamp Assy, Front Fog And Turn Signal, Rh[12.2006 -] UZJ100..CYG |
81030-60051 |
US $511.06 |
||
|
81040
|
81040
81040-60030 Lamp Assy, Front Fog And Turn Signal, Lh[08.2002 - 05.2005] UZJ100..CYG |
81040-60030 |
US $545.13 |
||
|
81040
|
81040
81040-60050
Lamp Assy, Front Fog And Turn Signal, Lh
[05.2005 - 11.2006] UZJ100..CYG |
81040-60050 |
— | ||
| replacement | |||||
|
81040
|
81040
81040-60051
Lamp Assy, Front Fog And Turn Signal, Lh
[05.2005 - 11.2006] UZJ100..CYG |
81040-60051 |
— | ||
|
81040
|
81040
81040-60051
Lamp Assy, Front Fog And Turn Signal, Lh
[12.2006 -] UZJ100..CYG |
81040-60051 |
— | ||
|
81210F
|
81210F
90981-13018 Bulb, Fog Lamp[08.2002 - 05.2005] UZJ100..CYG １２Ｖ ５５Ｗ，ハロゲン |
90981-13018 |
from US $14.10 |
||
|
81211E
|
81211E
81039-60030 Unit, Front Fog And Turn Signal Lamp, Rh[08.2002 - 05.2005] UZJ100..CYG |
81039-60030 |
US $460.10 |
||
|
81211E
|
81211E
81039-60050
Unit, Front Fog And Turn Signal Lamp, Rh
[05.2005 - 11.2006] UZJ100..CYG |
81039-60050 |
— | ||
| replacement | |||||
|
81211E
|
81211E
81039-60051 Unit, Front Fog And Turn Signal Lamp, Rh[05.2005 - 11.2006] UZJ100..CYG |
81039-60051 |
US $459.40 |
||
|
81211E
|
81211E
81039-60051 Unit, Front Fog And Turn Signal Lamp, Rh[12.2006 -] UZJ100..CYG |
81039-60051 |
US $459.40 |
||
|
81215C
|
81215C
90075-66005 Cover, Fog Lamp[08.2002 - 05.2005] UZJ100..CYG |
90075-66005 |
from US $20.94 |
||
|
81221E
|
81221E
81049-60030 Unit, Front Fog And Turn Signal Lamp, Lh[08.2002 - 05.2005] UZJ100..CYG |
81049-60030 |
US $460.10 |
||
|
81221E
|
81221E
81049-60050 Unit, Front Fog And Turn Signal Lamp, Lh[05.2005 - 11.2006] UZJ100..CYG |
81049-60050 |
US $460.10 |
||
| replacement | |||||
|
81221E
|
81221E
81049-60051 Unit, Front Fog And Turn Signal Lamp, Lh[05.2005 - 11.2006] UZJ100..CYG |
81049-60051 |
US $510.07 |
||
|
81221E
|
81221E
81049-60051 Unit, Front Fog And Turn Signal Lamp, Lh[12.2006 -] UZJ100..CYG |
81049-60051 |
US $510.07 |
||
|
81510B
|
81510B
90981-15009 Bulb(For Headlamp, No.2)[08.2002 - 05.2005] HDJ101,UZJ100 １２Ｖ ２１Ｗ，アンバー |
90981-15009 |
from US $4.92 |
||
|
81515E
|
81515E
99159-10248 Wire Sub-Assy, Front Turn Signal Lamp Body[08.2002 - 05.2005] UZJ100..CYG |
99159-10248 |
from US $13.11 |
||
|
9017806002
|
9017806002
90178-06002 NUT FLANGE |
90178-06002 |
US $1.97 |
||
