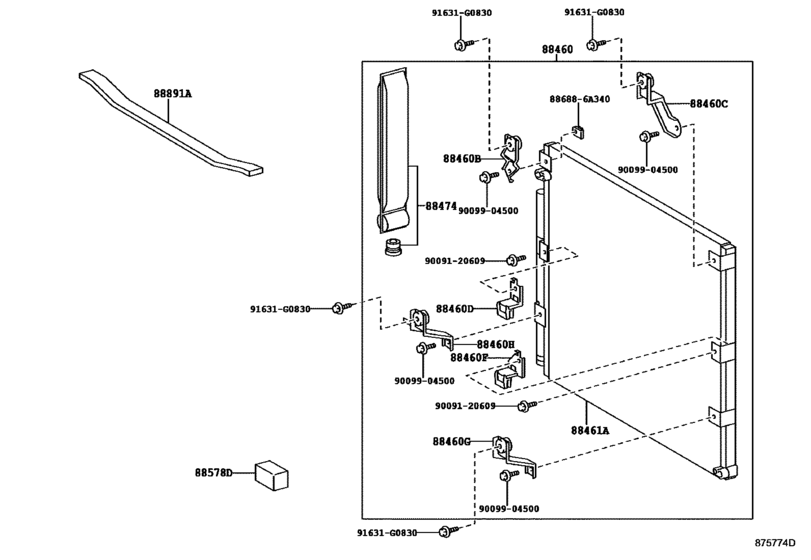

Heating & Air Conditioning - Cooler Piping ([08.2002 - ] ｺﾝﾃﾞﾝｻ (0208- )UZJ100..CYG,VXL) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- UZJ100
- grade
- CYG
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-60903 Condenser Assy, Cooler[08.2002 - 05.2005] UZJ100..CYG,VXL |
88460-60903 |
from US $719.91 |
||
|
88460B
|
88460B
88688-6A420
Bracket, Cooler Condenser, No.1
[08.2002 - 05.2005] UZJ100..CYG,VXL |
88688-6A420 |
— | ||
| replacements | |||||
|
88460B
|
88460B
88469-16040
Insulator, Cooler Condenser Mounting
[08.2002 - 05.2005] UZJ100..CYG,VXL |
88469-16040 |
— | ||
|
88460B
|
88460B
88688-6A430
Bracket, Cooler Diaphragm
[08.2002 - 05.2005] UZJ100..CYG,VXL |
88688-6A430 |
— | ||
|
88460B
|
88460B
88897-60070
Valve, Cooler Magnet
[08.2002 - 05.2005] UZJ100..CYG,VXL |
88897-60070 |
— | ||
|
88460C
|
88460C
88688-60851
Bracket, Cooler Condenser, No.2
[08.2002 - 05.2005] UZJ100..CYG,VXL |
88688-60851 |
— | ||
| replacements | |||||
|
88460C
|
88460C
88469-16040
Insulator, Cooler Condenser Mounting
[08.2002 - 05.2005] UZJ100..CYG,VXL |
88469-16040 |
— | ||
|
88460C
|
88460C
88688-6A261
Bracket, Cooler Diaphragm
[08.2002 - 05.2005] UZJ100..CYG,VXL |
88688-6A261 |
— | ||
|
88460C
|
88460C
88897-60070
Valve, Cooler Magnet
[08.2002 - 05.2005] UZJ100..CYG,VXL |
88897-60070 |
— | ||
|
88460D
|
88460D
88688-60790
Bracket, Cooler Condenser, No.3
[08.2002 - 05.2005] HDJ101,UZJ100 |
88688-60790 |
— | ||
| replacements | |||||
|
88460D
|
88460D
88688-6A230
Bracket, Cooler Diaphragm
[08.2002 - 05.2005] HDJ101,UZJ100 |
88688-6A230 |
— | ||
|
88460D
|
88460D
88897-60060
Valve, Cooler Magnet
[08.2002 - 05.2005] HDJ101,UZJ100 |
88897-60060 |
— | ||
|
88460F
|
88460F
88688-6A190
Bracket, Cooler Condenser, No.4
[08.2002 - 05.2005] UZJ100..CYG,VXL |
88688-6A190 |
— | ||
| replacements | |||||
|
88460F
|
88460F
88688-6A470
Bracket, Cooler Diaphragm
[08.2002 - 05.2005] UZJ100..CYG,VXL |
88688-6A470 |
— | ||
|
88460F
|
88460F
88897-60060
Valve, Cooler Magnet
[08.2002 - 05.2005] UZJ100..CYG,VXL |
88897-60060 |
— | ||
|
88460G
|
88460G
88688-6A180
Bracket, Cooler Condenser, No.5
[08.2002 - 05.2005] UZJ100..CYG,VXL |
88688-6A180 |
— | ||
|
88460H
|
88460H
88688-60870
Bracket, Cooler Condenser, No.6
[08.2002 - 05.2005] UZJ100..CYG,VXL |
88688-60870 |
— | ||
|
88461A
|
88461A
88461-60052 Core, Cooler Condenser[08.2002 - 05.2005] UZJ100..CYG,VXL |
88461-60052 |
from US $550.41 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[08.2002 - 05.2005] HDJ101,UZJ100 |
88474-17010 |
from US $60.10 |
||
|
88578D
|
88578D
88578-60190
Packing, Cooler Pipe, No.1
[08.2002 - 05.2005] UZJ100..CYG,VXL |
88578-60190 |
— | ||
|
88891A
|
88891A
88578-60100
Packing A (For Cooler)
[08.2002 - 05.2005] HDJ101,UZJ100 |
88578-60100 |
— | ||
|
91631G0830
|
91631G0830
91631-G0830 BOLT WWASHER |
91631-G0830 |
US $2.87 |
||
|
886886A340
|
886886A340
88688-6A340
Bracket, Cooler Diaphragm
|
88688-6A340 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9009904500
|
9009904500
90099-04500 New Genuine Part |
90099-04500 |
US $1.46 |
||
