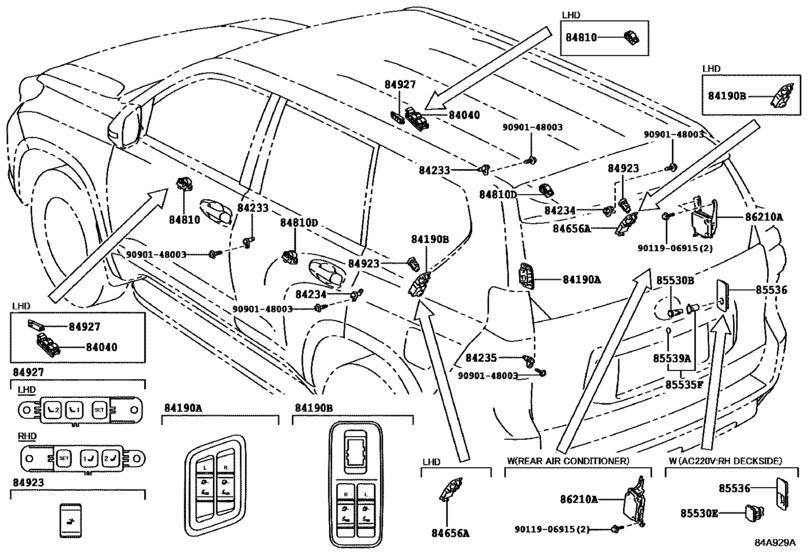

Switch & Relay & Computer ([08.2009 - ] DOOR & ROOF (0908- )GDJ150,GRJ150,KDJ150) Diagram Toyota LAND CRUISER PRADO
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- GDJ150
- ENGINE
- 1GDFTV
- TRANSMISSION
- MTM
- Model
- LAND CRUISER PRADO 150
- From
- 06.2015
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84040
|
84040
84040-60210 Master Switch Assy,multiplex Network[06.2015 -] GDJ150,KDJ150..RHD |
84040-60210 |
US $179.03 |
||
|
84190A
|
84190A
84190-60060-A2
Switch Assy, Fold Seat, No.1
[06.2015 -] GDJ150,GRJ150,KDJ150 REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,FLAXEN,TRIM0# |
84190-60060-A2 |
— | ||
|
84190A
|
84190A
84190-60060-B0
Switch Assy, Fold Seat, No.1
[06.2015 -] GDJ150,GRJ150,KDJ150 REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM2# |
84190-60060-B0 |
— | ||
|
84190B
|
84190B
84190-60070-A1 Switch Assy, Fold Seat, No.2[06.2015 -] GDJ150,KDJ150..RHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,FLAXEN,TRIM0# |
84190-60070-A1 |
US $78.03 |
||
|
84190B
|
84190B
84190-60070-C0 Switch Assy, Fold Seat, No.2[06.2015 -] GDJ150,KDJ150..RHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
84190-60070-C0 |
US $74.26 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[06.2015 -] GDJ15#,GRJ150,KDJ150 |
84231-60070 |
from US $11.83 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[06.2015 -] GDJ150,GRJ150,KDJ150 |
84231-53010 |
from US $11.83 |
||
|
84235
|
84235
84231-60070 Switch, Courtesy Lamp[06.2015 -] GDJ15#,GRJ150,KDJ150 |
84231-60070 |
from US $11.83 |
||
|
84656A
|
84656A
84656-60130-A1
Bezel, Switch
[06.2015 -] GDJ150,KDJ150..RHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,FLAXEN,TRIM0# |
84656-60130-A1 |
— | ||
|
84656A
|
84656A
84656-60130-C0 Bezel, Switch[06.2015 -] GDJ150,KDJ150..RHD REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
84656-60130-C0 |
US $18.05 |
||
|
84810
|
84810
84810-33120 Switch Assy, Power Window Regulator[06.2015 -] GDJ15#,GRJ150,KDJ150 |
84810-33120 |
from US $48.79 |
||
| replacement | |||||
|
84810
|
84810
84810-06090 Switch Assy, Power Window Regulator[06.2015 -] GDJ15#,GRJ150,KDJ150 |
84810-06090 |
US $211.68 |
||
|
84810D
|
84810D
84810-33120 Switch Assy, Power Window Regulator[06.2015 -] GDJ150,GRJ150,KDJ150 |
84810-33120 |
from US $48.79 |
||
| replacement | |||||
|
84810D
|
84810D
84810-06090 Switch Assy, Power Window Regulator[06.2015 -] GDJ150,GRJ150,KDJ150 |
84810-06090 |
US $211.68 |
||
|
84923
|
84923
84923-60030-C0 Switch, Rear Power SeatREAR POWER SEAT [06.2015 -] GDJ150,GRJ150,KDJ150 REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK |
84923-60030-C0 |
US $34.96 |
||
|
85530B
|
85530B
85530-42010 Socket Assy, Power Outlet, No.1[06.2015 -] KDJ150..LHD;GDJ15#,GRJ150 |
85530-42010 |
from US $26.27 |
||
|
85530E
|
85530E
85530-60160-A2
Socket Assy, Power Outlet, No.1
[06.2015 -] KDJ150..RHD FLAXEN,TRIM0#; KDJ150..LHD;GDJ15#,GRJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),FLAXEN,TRIM0# |
85530-60160-A2 |
— | ||
|
85530E
|
85530E
85530-60160-C0
Socket Assy, Power Outlet, No.1
[06.2015 -] KDJ150..RHD BLACK,TRIM2#; KDJ150..LHD;GDJ15#,GRJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),BLACK,TRIM2# |
85530-60160-C0 |
— | ||
|
85535F
|
85535F
85535-35080-A4
Cover, Power Outlet Socket, Rear
[06.2015 -] KDJ150..LHD;GDJ15#,GRJ150 FLAXEN,TRIM0# |
85535-35080-A4 |
— | ||
|
85535F
|
85535F
85535-35080-C0 Cover, Power Outlet Socket, No.1POWER OUTLET SOCKET, REAR [06.2015 -] KDJ150..LHD;GDJ15#,GRJ150 BLACK,TRIM2# |
85535-35080-C0 |
US $7.71 |
||
|
85536
|
85536
85536-60040-A1 Bezel, Power Outlet Socket[06.2015 -] KDJ150..LHD;GDJ150,GRJ150 FLAXEN,TRIM0# |
85536-60040-A1 |
US $12.96 |
||
|
85536
|
85536
85536-60040-C0 Bezel, Power Outlet Socket[06.2015 -] KDJ150..LHD;GDJ150,GRJ150 BLACK,TRIM2# |
85536-60040-C0 |
US $12.58 |
||
|
85536
|
85536
85536-60100-A1
Bezel, Power Outlet Socket
[06.2015 -] KDJ150..RHD FLAXEN,TRIM0#; GDJ150,GRJ150..LHD..6FC RUSSIA SPEC&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),FLAXEN,TRIM 0#; KDJ150..LHD;GDJ150,GRJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),FLAXEN,TRIM0# |
85536-60100-A1 |
— | ||
|
85536
|
85536
85536-60100-C0
Bezel, Power Outlet Socket
[06.2015 -] KDJ150..RHD BLACK,TRIM2#; GDJ150,GRJ150..LHD..6FC RUSSIA SPEC&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),BLACK,TRIM2 #; KDJ150..LHD;GDJ150,GRJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),BLACK,TRIM2# |
85536-60100-C0 |
— | ||
|
85539A
|
85539A
85539-60020 Label, Power Outlet Notice[06.2015 -] KDJ150..LHD;GDJ15#,GRJ150 |
85539-60020 |
US $1.41 |
||
|
86210A
|
86210A
86210-60070
Inverter Assy, Voltage
[06.2015 -] KDJ150..RHD; KDJ150..LHD;GDJ150,GRJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
86210-60070 |
— | ||
|
86210A
|
86210A
86210-60110
Inverter Assy, Voltage
[06.2015 -] KDJ150..LHD;GDJ150,GRJ150 AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE); KDJ150..LHD;GDJ150,GRJ150 AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBL |
86210-60110 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.97 |
||
