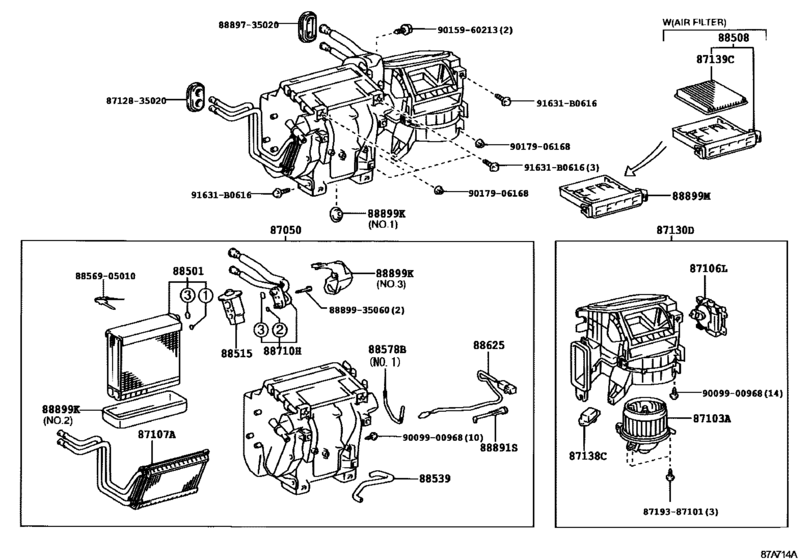

Heating & Air Conditioning - Cooler Unit ([09.2003 - ] FRONT-W(AUTO AIR CONDITIONER) (0309- )CHI) Diagram Toyota LAND CRUISER PRADO
- Year
- 2003 - 2004
- Sales region
- General
- Frame
- GRJ120
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- LAND CRUISER PRADO 120
- From
- 09.2003
- To
- 09.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-60170 Radiator Assy, Air ConditionerAIR CONDITIONER [09.2003 - 02.2004] GRJ120..CHI |
87050-60170 |
US $1,645.28 |
||
| replacement | |||||
|
87050
|
87050
87050-60171 Radiator Assy, Air ConditionerAIR CONDITIONER [09.2003 - 02.2004] GRJ120..CHI |
87050-60171 |
US $1,645.28 |
||
|
87050
|
87050
87050-60171 Radiator Assy, Air ConditionerAIR CONDITIONER [03.2004 - 07.2005] GRJ120..CHI |
87050-60171 |
US $1,645.28 |
||
|
87103A
|
87103A
87103-35060 Motor Sub-Assy, Cooling Unit, W/fanCOOLING UNIT, W/FAN [09.2003 -] GRJ120..VX..CHI;GRJ120..4FC..CHI |
87103-35060 |
US $341.43 |
||
|
87106L
|
87106L
87106-35150 Servo Sub-Assy, Damper(For Blower)[09.2003 -] GRJ120..CHI |
87106-35150 |
from US $130.44 |
||
|
87107A
|
87107A
87107-35100 Unit Sub-Assy, Heater RadiatorHEATER RADIATOR [09.2003 -] GRJ120..CHI |
87107-35100 |
US $399.22 |
||
|
87130D
|
87130D
87130-35150
Blower Assy
[09.2003 - 07.2005] GRJ120..CHI |
87130-35150 |
— | ||
| replacement | |||||
|
87130D
|
87130D
87130-35151 Blower Assy[09.2003 - 07.2005] GRJ120..CHI |
87130-35151 |
US $639.99 |
||
|
88501
|
88501
88501-35100
Evaporator Sub-Assy, Cooler, No.1
[09.2003 - 02.2004] GRJ120..CHI |
88501-35100 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-35160 Evaporator Sub-Assy, Cooler, No.1[09.2003 - 02.2004] GRJ120..CHI |
88501-35160 |
from US $365.46 |
||
|
88501
|
88501
88501-35130
Evaporator Sub-Assy, Cooler, No.1
[03.2004 - 07.2005] GRJ120..CHI |
88501-35130 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-35160 Evaporator Sub-Assy, Cooler, No.1[03.2004 - 07.2005] GRJ120..CHI |
88501-35160 |
from US $365.46 |
||
|
88515
|
88515
88515-60120 Valve, Cooler Expansion[09.2003 - 07.2005] GRJ120..CHI |
88515-60120 |
from US $126.48 |
||
|
88539
|
88539
88539-35030
Hose, Cooler Unit Drain, No.1
[03.2004 -] GRJ120..CHI |
88539-35030 |
— | ||
|
88539
|
88539
88539-60220
Hose, Cooler Unit Drain, No.1
[09.2003 -] GRJ120..CHI REAR |
88539-60220 |
— | ||
|
88578B
|
88578B
88578-35170
Packing, Cooling Unit, No.1
[03.2004 -] GRJ120..CHI |
88578-35170 |
— | ||
|
88625
|
88625
88625-35050
Thermistor, Cooler, No.1
[09.2003 - 03.2004] GRJ120..CHI |
88625-35050 |
— | ||
|
88625
|
88625
88625-35090 Thermistor, Cooler, No.1COOLER, NO.1 [03.2004 - 07.2005] GRJ120..CHI |
88625-35090 |
from US $13.18 |
||
|
88710H
|
88710H
88710-35520 Tube Assy, Air ConditionerAIRCONDITIONER [09.2003 - 03.2004] GRJ120..CHI |
88710-35520 |
US $292.71 |
||
| replacement | |||||
|
88710H
|
88710H
88710-6B370 Tube & Accessory Assy, Air Conditioner[09.2003 - 03.2004] GRJ120..CHI |
88710-6B370 |
from US $141.23 |
||
|
88710H
|
88710H
88710-6B200
Tube Assy, Air Conditioner
[03.2004 - 10.2004] GRJ120..CHI |
88710-6B200 |
— | ||
| replacement | |||||
|
88710H
|
88710H
88710-35650 Tube Assy, Air ConditionerAIRCONDITIONER [03.2004 - 10.2004] GRJ120..CHI |
88710-35650 |
US $77.17 |
||
|
88891S
|
88891S
88891-35050
Cover, Cooler, No.1
[03.2004 - 07.2005] GRJ120..CHI |
88891-35050 |
— | ||
|
88899K
|
88899K
88899-3A010
Grommet (For Drain Hose)
[09.2003 -] GRJ120..CHI NO.1 |
88899-3A010 |
— | ||
|
88899K
|
88899K
88899-60250
Plate, Cover
[03.2004 - 07.2005] GRJ120..CHI NO.2 |
88899-60250 |
— | ||
|
88899K
|
88899K
88899-60260
Plate, Cover
[03.2004 -] GRJ120..CHI NO.3 |
88899-60260 |
— | ||
|
88899M
|
88899M
88899-41010 Plate, Cover(For Air Filter)[09.2003 - 06.2006] GRJ120..CHI |
88899-41010 |
from US $8.74 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.66 |
||
|
8712835020
|
8712835020
87128-35020
Grommet, Heater
|
87128-35020 |
— | ||
|
8719387101
|
8719387101
87193-87101
SCREW TAPPING
|
87193-87101 |
— | ||
|
8856905010
|
8856905010
88569-05010 Clamp (for Cooler Relay) |
88569-05010 |
from US $2.03 |
||
|
8889735020
|
8889735020
88897-35020
Grommet, (For Cooler Pipe)
|
88897-35020 |
— | ||
|
8889935060
|
8889935060
88899-35060
Cover, Evaporator
|
88899-35060 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.43 |
||
|
9017906168
|
9017906168
90179-06168 Nut & Washer Assy |
90179-06168 |
from US $0.99 |
||
