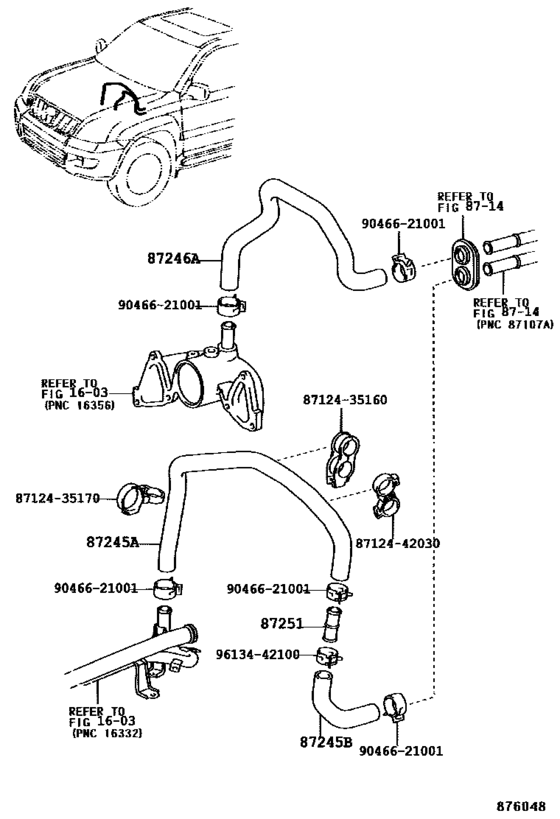

Heating & Air Conditioning - Water Piping ([01.2003 - ] (0301- )GRJ12#..LHD) Diagram Toyota LAND CRUISER PRADO
- Year
- 2003 - 2004
- Sales region
- General
- Frame
- GRJ120
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- LAND CRUISER PRADO 120
- From
- 09.2003
- To
- 09.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245A
|
87245A
87245-3D480 Hose, Heater Water, Inlet AHEATER WATER, INLET A [09.2003 - 09.2004] GRJ120..CHI |
87245-3D480 |
from US $51.58 |
||
|
87245B
|
87245B
87245-3D500 Hose, Heater Water, Inlet BHEATER WATER, INLET B [09.2003 - 09.2004] GRJ120..CHI |
87245-3D500 |
from US $14.69 |
||
|
87246A
|
87246A
87245-3D490 Hose, Heater Water, InletHEATER WATER, OUTLET A [09.2003 - 09.2004] GRJ120..CHI |
87245-3D490 |
from US $38.64 |
||
|
87251
|
87251
87251-35020 Pipe Sub-Assy, Water[09.2003 - 09.2004] GRJ120..CHI |
87251-35020 |
from US $3.67 |
||
|
8712435160
|
8712435160
87124-35160
Clamp, Heater
|
87124-35160 |
— | ||
|
8712435170
|
8712435170
87124-35170
Clamp, Heater
|
87124-35170 |
— | ||
|
8712442030
|
8712442030
87124-42030 Clamp, Heater |
87124-42030 |
from US $1.40 |
||
|
9046621001
|
9046621001
90466-21001 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90466-21001 |
from US $3.94 |
||
|
9613442100
|
9613442100
96134-42100 Clip(For Water By-Pass Hose Assy) |
96134-42100 |
from US $0.96 |
