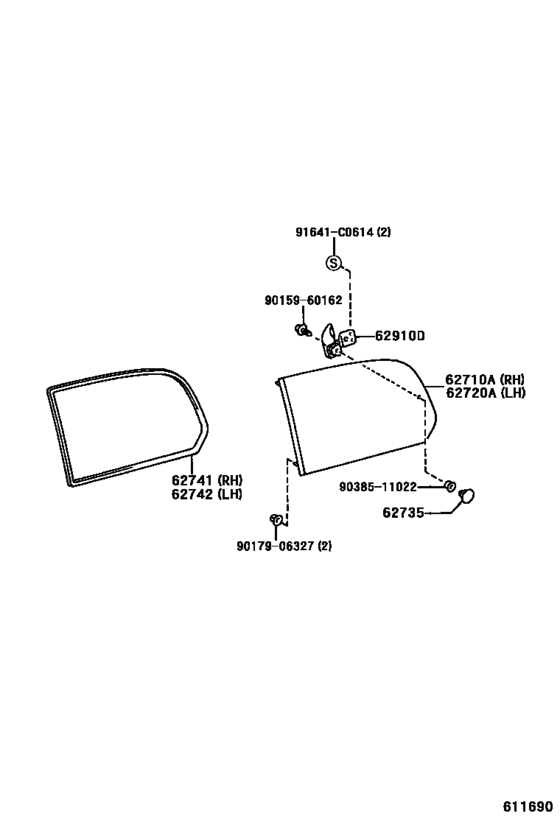

Side Window ([09.2002 - ] (0209- )) Diagram Toyota LAND CRUISER PRADO
- Year
- 2003 - 2004
- Sales region
- Europe
- Frame
- GRJ120
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 120
- From
- 01.2003
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62710A
|
62710A
62710-60761 Window Assy, Quarter, RhQUARTER, RH [12.2002 - 08.2004] GRJ120,KDJ120 *TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP; GRJ120,KDJ120 *TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP |
62710-60761 |
US $493.58 |
||
|
62710A
|
62710A
62710-60881 Window Assy, Quarter, RhQUARTER, RH [12.2002 - 08.2004] GRJ120,KDJ120 *TT,T=3.1,GREEN |
62710-60881 |
US $340.70 |
||
|
62710A
|
62710A
62710-60891
Window Assy, Quarter, Rh
[12.2002 - 08.2004] GRJ120,KDJ120 *UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-EMV-W 9SP; GRJ120,KDJ120 *UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 9SP |
62710-60891 |
— | ||
|
62710A
|
62710A
62710-6A011
Window Assy, Quarter, Rh
[12.2002 - 08.2004] GRJ120,KDJ120 *UVCTT,T=3.1,GREEN |
62710-6A011 |
— | ||
|
62720A
|
62720A
62720-60651 Window Assy, Quarter, LhQUARTER, LH [12.2002 - 08.2004] GRJ120,KDJ120 *TT,T=3.1,GREEN |
62720-60651 |
US $497.95 |
||
|
62720A
|
62720A
62720-60791
Window Assy, Quarter, Lh
[12.2002 - 08.2004] GRJ120,KDJ120 *UVCTT,T=3.1,GREEN |
62720-60791 |
— | ||
|
62735
|
62735
62735-28040 Retainer, Quarter Window Hinge[09.2002 -] GRJ12#,KDJ12# |
62735-28040 |
from US $6.08 |
||
|
62741
|
62741
62741-60110 Weatherstrip, Quarter Window, Rh[09.2002 - 08.2003] GRJ120,KDJ120 |
62741-60110 |
US $66.98 |
||
| replacement | |||||
|
62741
|
62741
62741-60111 Weatherstrip, Quarter Window, Rh[09.2002 - 08.2003] GRJ120,KDJ120 |
62741-60111 |
US $70.41 |
||
|
62741
|
62741
62741-60111 Weatherstrip, Quarter Window, Rh[08.2003 -] GRJ120,KDJ120 |
62741-60111 |
US $70.41 |
||
|
62742
|
62742
62742-60100 Weatherstrip, Quarter Window, Lh[09.2002 - 08.2003] GRJ120,KDJ120 |
62742-60100 |
US $66.98 |
||
| replacement | |||||
|
62742
|
62742
62742-60101 Weatherstrip, Quarter Window, Lh[09.2002 - 08.2003] GRJ120,KDJ120 |
62742-60101 |
US $70.41 |
||
|
62742
|
62742
62742-60101 Weatherstrip, Quarter Window, Lh[08.2003 -] GRJ120,KDJ120 |
62742-60101 |
US $70.41 |
||
|
62910D
|
62910D
62910-60060-A0 Lock Assy, Quarter Window[09.2002 - 08.2009] GRJ12#,KDJ12# IVORY,TRIM0# |
62910-60060-A0 |
from US $42.06 |
||
|
62910D
|
62910D
62910-60060-B0 Lock Assy, Quarter Window[09.2002 - 08.2009] GRJ12#,KDJ12# MD.GRAY,TRIM1# |
62910-60060-B0 |
from US $43.17 |
||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
from US $0.66 |
||
|
9015960162
|
9015960162
90159-60162 SCREW |
90159-60162 |
from US $0.68 |
||
|
9017906327
|
9017906327
90179-06327 NUT |
90179-06327 |
US $5.56 |
||
|
9038511022
|
9038511022
90385-11022 BUSH |
90385-11022 |
from US $1.07 |
||
