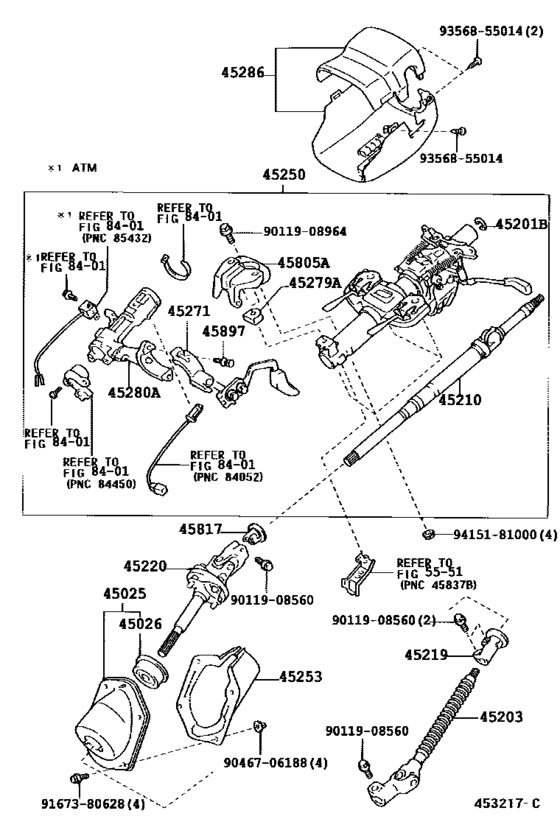

Steering Column & Shaft ([09.2002 - ] (0209- )LHD) Diagram Toyota LAND CRUISER PRADO
- Year
- 2003 - 2004
- Sales region
- Europe
- Frame
- GRJ120
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 120
- From
- 01.2003
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025
|
45025
45025-35370
Cover, Steering Intermediate Shaft
[09.2002 -] GRJ12#,KDJ12#..LHD |
45025-35370 |
— | ||
|
45026
|
45026
45026-35060 Cover Sub-Assy, Steering Column Hole, No.2[09.2002 -] GRJ12#,KDJ12# |
45026-35060 |
from US $29.90 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[09.2002 -] GRJ12#,KDJ12# T=1.20 |
90520-17042 |
from US $0.82 |
||
|
45203
|
45203
45203-35310 Shaft Sub-Assy, Steering Intermediate, No.2STEERING INTERMEDIATE, NO.2 [09.2002 -] GRJ12#,KDJ12#..LHD |
45203-35310 |
from US $182.15 |
||
|
45210
|
45210
45210-35250 Shaft Assy, Steering Main[09.2002 -] GRJ12#,KDJ12# |
45210-35250 |
from US $322.55 |
||
|
45219
|
45219
45219-35160 Yoke, Steering Sliding[09.2002 -] GRJ12#,KDJ12#..LHD |
45219-35160 |
from US $20.26 |
||
|
45220
|
45220
45220-60140 Shaft Assy, Steering IntermediateSTEERING INTERMEDIATE [09.2002 -] GRJ120,KDJ120..LHD |
45220-60140 |
US $194.40 |
||
|
45250
|
45250
45250-6A780 Column Assy, SteeringSTEERING [09.2002 -] GRJ12#,KDJ12#..LHD..ATM |
45250-6A780 |
US $1,057.29 |
||
|
45253
|
45253
45253-35350 Cover, Steering Column HoleSTEERING COLUMN HOLE [09.2002 -] GRJ12#,KDJ12#..LHD |
45253-35350 |
US $19.36 |
||
|
45271
|
45271
45271-22010 Clamp, Steering Column, Upper[09.2002 -] GRJ12#,KDJ12# |
45271-22010 |
from US $18.64 |
||
|
45279A
|
45279A
45279-33030 Attachment, Steering Column Tube, Lwr[09.2002 -] GRJ12#,KDJ12# |
45279-33030 |
US $0.86 |
||
|
45280A
|
45280A
45280-60560 Bracket Assy, Steering Column, UpperSTEERING COLUMN, UPPER [09.2002 -] GRJ12#,KDJ12#..LHD..ATM |
45280-60560 |
from US $228.87 |
||
|
45286
|
45286
45286-35910-C0 Cover, Steering ColumnSTEERING COLUMN [09.2002 - 08.2009] GRJ12#,KDJ12# BLACK,TRIM1# |
45286-35910-C0 |
US $43.68 |
||
| replacement | |||||
|
45286
|
45286
45286-35911-C0 Cover, Steering Column[09.2002 - 08.2009] GRJ12#,KDJ12# BLACK,TRIM1# |
45286-35911-C0 |
US $43.68 |
||
|
45286
|
45286
45286-35910-E0 Cover, Steering ColumnSTEERING COLUMN [09.2002 - 08.2009] GRJ12#,KDJ12# SANDAL WOOD,TRIM0# |
45286-35910-E0 |
US $43.68 |
||
| replacement | |||||
|
45286
|
45286
45286-35911-E0
Cover, Steering Column
[09.2002 - 08.2009] GRJ12#,KDJ12# SANDAL WOOD,TRIM0# |
45286-35911-E0 |
— | ||
|
45805A
|
45805A
45805-60010 Support Sub-Assy, Tilt Steering[09.2002 -] GRJ12#,KDJ12# |
45805-60010 |
US $35.38 |
||
|
45817
|
45817
45817-35050 Stopper, Steering Shaft Thrust[09.2002 -] GRJ12#,KDJ12# |
45817-35050 |
from US $6.64 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[09.2002 -] GRJ12#,KDJ12# |
45897-12020 |
from US $2.63 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9011908964
|
9011908964
90119-08964 New Genuine Part |
90119-08964 |
US $1.31 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
US $2.87 |
||
|
9167380628
|
9167380628
91673-80628 New Genuine Part |
91673-80628 |
US $1.16 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.79 |
||
