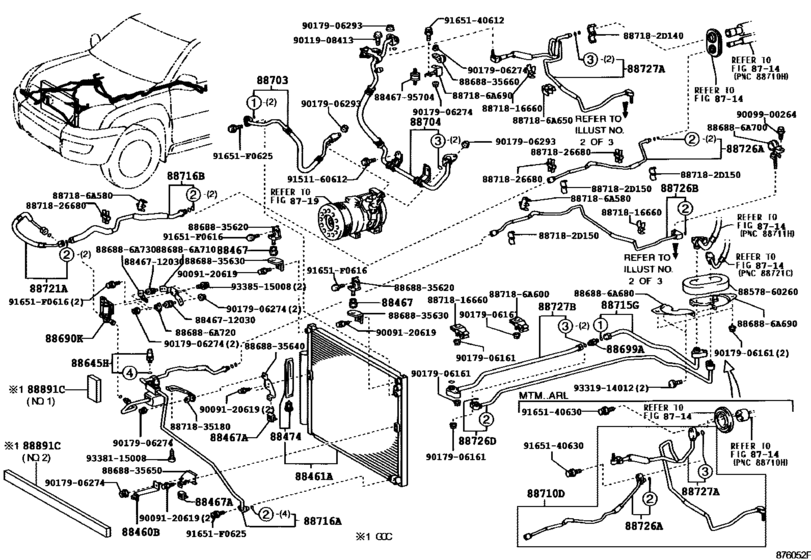

Heating & Air Conditioning - Cooler Piping ([01.2003 - ] FRONT-SINGLE AIR CON. & W(COOL BOX) (0301- )GRJ12#) Diagram Toyota LAND CRUISER PRADO
- Year
- 2003 - 2004
- Sales region
- General
- Frame
- GRJ120
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LAND CRUISER PRADO 120
- From
- 01.2003
- To
- 08.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460B
|
88460B
88688-35570 Bracket, Cooler Condenser, No.1[09.2002 - 10.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO |
88688-35570 |
from US $7.69 |
||
|
88461A
|
88461A
88461-35150 Core, Cooler CondenserCOOLER CONDENSER [01.2003 - 07.2003] GRJ12#..VX; GRJ120..GX AIR CONDITIONER-SINGLE AUTO |
88461-35150 |
US $681.41 |
||
|
88461A
|
88461A
88461-60090 Core, Cooler CondenserCOOLER CONDENSER [01.2003 - 09.2003] GRJ120..GX AIR CONDITIONER-DUAL AUTO |
88461-60090 |
US $445.54 |
||
|
88461A
|
88461A
88461-60091 Core, Cooler Condenser[09.2003 - 10.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO |
88461-60091 |
from US $566.38 |
||
|
88467
|
88467
88467-28050 Cushion, Cooler Condenser, No.1[09.2002 - 07.2003] GRJ12#..VX; GRJ120..GX AIR CONDITIONER-SINGLE AUTO |
88467-28050 |
US $2.71 |
||
|
88467A
|
88467A
88467-35080 Cushion, Cooler Condenser, No.1[09.2002 - 07.2003] GRJ12#..VX; GRJ120..GX AIR CONDITIONER-SINGLE AUTO |
88467-35080 |
from US $3.84 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[09.2002 - 04.2004] GRJ120,KZJ120..GX..ARL AIR CONDITIONER-SINGLE MANUAL AFTER SET |
88474-17010 |
from US $65.40 |
||
|
88645H
|
88645H
88645-34010 Switch, Pressure[09.2002 - 06.2003] GRJ12#,KZJ120..VX WITH/COOL BOX; RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ120,KZJ120,RZJ125..GX AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX; RZJ125;RZJ120..4FC..GEN;RZJ120..5F..(GCC,GEN) AIR CONDITIONER-SINGLE MANUAL&WITH/COOL BOX |
88645-34010 |
from US $32.78 |
||
| replacement | |||||
|
88645H
|
88645H
88645-04040 Switch, Pressure[09.2002 - 06.2003] GRJ12#,KZJ120..VX WITH/COOL BOX; RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ120,KZJ120,RZJ125..GX AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX; RZJ125;RZJ120..4FC..GEN;RZJ120..5F..(GCC,GEN) AIR CONDITIONER-SINGLE MANUAL&WITH/COOL BOX |
88645-04040 |
US $120.41 |
||
|
88645H
|
88645H
88645-60030 Switch, Pressure No.1[09.2002 - 07.2003] GRJ120..GX;GRJ120..LHD;KZJ120,RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX; RZJ120..GEN AIR CONDITIONER-DUAL MANUAL&WITH/COOL BOX |
88645-60030 |
from US $85.26 |
||
|
88645H
|
88645H
88645-60040 Switch, Pressure No.1[07.2003 - 11.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
88645-60040 |
US $95.02 |
||
|
88690K
|
88690K
88690-60240
Valve Assy, Magnet
[09.2002 - 06.2003] GRJ12#,KZJ120..VX WITH/COOL BOX; GRJ120..GX;GRJ120..LHD;KZJ120,RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX; RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ120,KZJ120,RZJ125..GX AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX; RZJ125;RZJ120.. |
88690-60240 |
— | ||
|
88699A
|
88699A
88699-60010 Valve, Air[09.2002 - 11.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
88699-60010 |
US $21.96 |
||
|
88703
|
88703
88703-35010 Hose Sub-Assy, Discharge[01.2003 - 11.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO; GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
88703-35010 |
US $147.06 |
||
|
88704
|
88704
88704-35010 Hose Sub-Assy, SuctionSUCTION [01.2003 - 11.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO; GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
88704-35010 |
US $292.66 |
||
|
88715G
|
88715G
88715-60170
Tube, Discharge, G
[06.2003 - 08.2005] GRJ12#,KZJ120..VX WITH/COOL BOX; RZJ120,TRJ120..ARL,GEN;RZJ120,TRJ120..5F..GCC;GRJ120,KZJ120,RZJ125,TRJ125..GX..(AR L,GCC,GEN) AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX; TRJ120..GEN;RZJ125,TRJ125;TRJ120..5F..GCC;RZJ120..4FC..GEN;RZJ120 |
88715-60170 |
— | ||
|
88715G
|
88715G
88715-60180 Tube, Discharge, G[09.2002 - 11.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
88715-60180 |
US $52.42 |
||
|
88716A
|
88716A
88716-35630 Pipe, Cooler Refrigerant Liquid, A[09.2002 -] LJ120..RHD; GRJ120..5F..ARL;KDJ120,KZJ120,RZJ120..RHD..MTM AIR CONDITIONER-SINGLE AUTO; GRJ120,KDJ120,KZJ120..MTM..ARL AIR CONDITIONER-SINGLE MANUAL AFTER SET |
88716-35630 |
US $66.68 |
||
|
88716A
|
88716A
88716-6B510 Pipe, Cooler Refrigerant Liquid, A[09.2002 - 06.2003] GRJ12#,KZJ120..VX WITH/COOL BOX; GRJ120..GX;GRJ120..LHD;KZJ120,RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX; RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ120,KZJ120,RZJ125..GX AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX; RZJ125;RZJ120.. |
88716-6B510 |
from US $144.14 |
||
|
88716A
|
88716A
88716-6B670
Pipe, Cooler Refrigerant Liquid, A
[07.2003 - 11.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
88716-6B670 |
— | ||
|
88716B
|
88716B
88716-6B520 Pipe, Cooler Refrigerant Liquid, B[09.2002 - 06.2003] GRJ12#,KZJ120..VX WITH/COOL BOX; GRJ120..GX;GRJ120..LHD;KZJ120,RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX; RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ120,KZJ120,RZJ125..GX AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX; RZJ125;RZJ120.. |
88716-6B520 |
US $46.45 |
||
|
88716B
|
88716B
88716-6B680 Pipe, Cooler Refrigerant Liquid, B[07.2003 - 11.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
88716-6B680 |
US $34.51 |
||
|
88721A
|
88721A
88721-60140 Hose, Liquid, A[09.2002 - 06.2003] GRJ12#,KZJ120..VX WITH/COOL BOX; GRJ120..GX;GRJ120..LHD;KZJ120,RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX; RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ120,KZJ120,RZJ125..GX AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX; RZJ125;RZJ120.. |
88721-60140 |
US $70.62 |
||
|
88726A
|
88726A
88716-6B490 Pipe, Cooler Refrigerant Liquid, A[05.2003 - 11.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO |
88716-6B490 |
US $179.09 |
||
| replacement | |||||
|
88726A
|
88726A
88716-6B491
Pipe, Cooler Refrigerant Liquid, A
[05.2003 - 11.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO |
88716-6B491 |
— | ||
|
88726A
|
88726A
88716-6B540 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [05.2003 - 08.2005] GRJ120,KZJ120,RZJ120..RHD..MTM AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX |
88716-6B540 |
US $81.54 |
||
|
88726A
|
88726A
88716-6B570 Pipe, Cooler Refrigerant Liquid, A[05.2003 - 11.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
88716-6B570 |
US $68.87 |
||
|
88726B
|
88726B
88716-6B450 Pipe, Cooler Refrigerant Liquid, B[05.2003 - 08.2005] KZJ120..GEN WITH/COOL BOX; RZJ120..ARL,GEN;RZJ120..5F..GCC;GRJ120..MTM..ARL;KZJ120,RZJ125..GX AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX |
88716-6B450 |
US $112.11 |
||
|
88726B
|
88726B
88716-6B560 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, B [05.2003 - 11.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
88716-6B560 |
US $80.08 |
||
|
88726D
|
88726D
88716-6B420 Pipe, Cooler Refrigerant Liquid, D[09.2002 - 11.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO; GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
88716-6B420 |
from US $117.53 |
||
|
88726D
|
88726D
88716-6B640
Pipe, Cooler Refrigerant Liquid, D
[06.2003 - 08.2005] GRJ12#,KZJ120..VX WITH/COOL BOX; RZJ120,TRJ120..ARL,GEN;RZJ120,TRJ120..5F..GCC;GRJ120,KZJ120,RZJ125,TRJ125..GX..(AR L,GCC,GEN) AIR CONDITIONER-SINGLE AUTO&WITH/COOL BOX; TRJ120..GEN;RZJ125,TRJ125;TRJ120..5F..GCC;RZJ120..4FC..GEN;RZJ120 |
88716-6B640 |
— | ||
|
88727A
|
88727A
88717-6A630 Pipe, Cooler Refrigerant Suction, A[05.2003 - 11.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO; GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
88717-6A630 |
US $301.39 |
||
| replacement | |||||
|
88727A
|
88727A
88717-6A631
Pipe, Cooler Refrigerant Suction, A
[05.2003 - 11.2003] GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO; GRJ120..5F..ARL AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
88717-6A631 |
— | ||
|
91651F0616
|
91651F0616
91651-F0616 BOLT |
91651-F0616 |
US $1.97 |
||
|
91651F0625
|
91651F0625
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
886886A680
|
886886A680
88688-6A680
Bracket, Cooler Diaphragm
|
88688-6A680 |
— | ||
|
886886A690
|
886886A690
88688-6A690
Bracket, Cooler Diaphragm
|
88688-6A690 |
— | ||
|
886886A700
|
886886A700
88688-6A700
Bracket, Cooler Diaphragm
|
88688-6A700 |
— | ||
|
886886A710
|
886886A710
88688-6A710
Bracket, Cooler Diaphragm
|
88688-6A710 |
— | ||
|
886886A720
|
886886A720
88688-6A720
Bracket, Cooler Diaphragm
|
88688-6A720 |
— | ||
|
886886A730
|
886886A730
88688-6A730
Bracket, Cooler Diaphragm
|
88688-6A730 |
— | ||
|
887182D140
|
887182D140
88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D140 |
from US $6.46 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.69 |
||
|
887186A580
|
887186A580
88718-6A580
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A580 |
— | ||
|
887186A600
|
887186A600
88718-6A600
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A600 |
— | ||
|
887186A650
|
887186A650
88718-6A650
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A650 |
— | ||
|
887186A690
|
887186A690
88718-6A690
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A690 |
— | ||
|
8846712030
|
8846712030
88467-12030 Cushion, Cooler Condenser, No.1 |
88467-12030 |
from US $3.32 |
||
|
8846795704
|
8846795704
88467-95704 Cushion, Cooler Condenser, No.1 |
88467-95704 |
US $3.72 |
||
|
8857860260
|
8857860260
88578-60260
Paking, Cooler Air Duct
|
88578-60260 |
— | ||
|
8868835620
|
8868835620
88688-35620
Bracket, Cooler Diaphragm
|
88688-35620 |
— | ||
|
8868835630
|
8868835630
88688-35630
Bracket, Cooler Diaphragm
|
88688-35630 |
— | ||
|
8868835640
|
8868835640
88688-35640
Bracket, Cooler Diaphragm
|
88688-35640 |
— | ||
|
8868835650
|
8868835650
88688-35650
Bracket, Cooler Diaphragm
|
88688-35650 |
— | ||
|
8868835660
|
8868835660
88688-35660
Bracket, Cooler Diaphragm
|
88688-35660 |
— | ||
|
8871816660
|
8871816660
88718-16660
Pipe, Cooler Refrigerant Suction, No.2
|
88718-16660 |
— | ||
|
8871826680
|
8871826680
88718-26680 Pipe, Cooler Refrigerant Suction, No.2 |
88718-26680 |
US $1.56 |
||
|
8871835180
|
8871835180
88718-35180
Pipe, Cooler Refrigerant Suction, No.2
|
88718-35180 |
— | ||
|
9009120619
|
9009120619
90091-20619 BOLT |
90091-20619 |
US $0.28 |
||
|
9009900264
|
9009900264
90099-00264
SCREW
|
90099-00264 |
— | ||
|
9011908413
|
9011908413
90119-08413 New Genuine Part |
90119-08413 |
US $0.70 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.80 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.84 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140630
|
9165140630
91651-40630 BOLT |
91651-40630 |
US $1.43 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.25 |
||
|
9338115008
|
9338115008
93381-15008 SCREWWWASHER |
93381-15008 |
US $1.61 |
||
|
9338515008
|
9338515008
93385-15008
New Genuine Part
|
93385-15008 |
— | ||
