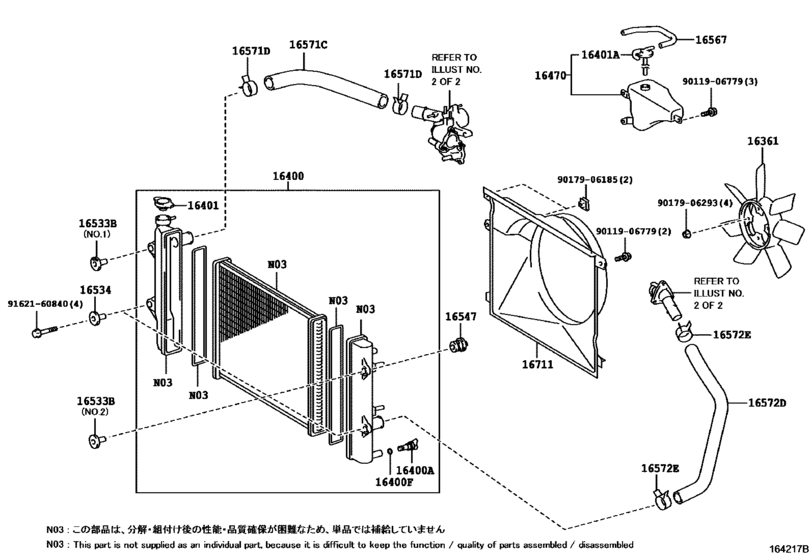

Radiator & Water Outlet ([01.2003 - ] (0301- )1GRFE) Diagram Toyota LAND CRUISER PRADO
- Year
- 2003 - 2004
- Sales region
- General
- Frame
- GRJ120
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LAND CRUISER PRADO 120
- From
- 01.2003
- To
- 08.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-31060 Fan[01.2003 - 08.2004] 1GRFE..GRJ12#..ARL,GCC,GEN |
16361-31060 |
from US $103.32 |
||
|
16400
|
16400
16400-75450 Radiator Assy[01.2003 - 10.2004] 1GRFE..GRJ120..MTM |
16400-75450 |
US $627.54 |
||
| replacement | |||||
|
16400
|
16400
16400-75454 Radiator Assy[01.2003 - 10.2004] 1GRFE..GRJ120..MTM |
16400-75454 |
US $635.41 |
||
|
16400A
|
16400A
23322-54010 Plug,air(For Oil Cooler Drain Cock)[01.2003 -] 1GRFE..GRJ12#..ARL,GCC,GEN |
23322-54010 |
from US $4.86 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[01.2003 -] 1GRFE..GRJ12#..ARL,GCC,GEN |
16492-21050 |
from US $2.16 |
||
|
16401
|
16401
16401-5B630
Cap Sub-Assy, Radiator
[01.2003 - 10.2004] 1GRFE..GRJ12#..ARL,GCC,GEN |
16401-5B630 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-31650 Cap Sub-Assy, Radiator[01.2003 - 10.2004] 1GRFE..GRJ12#..ARL,GCC,GEN |
16401-31650 |
from US $16.97 |
||
|
16401A
|
16401A
16405-50051 Cap Sub-Assy, Radiator Reserve Tank[01.2003 - 08.2004] 1GRFE..GRJ12#..ARL,GCC,GEN |
16405-50051 |
from US $5.77 |
||
|
16470
|
16470
16470-50140 Tank Assy, Radiator Reserve[01.2003 - 08.2004] 1GRFE..GRJ12#..ARL,GCC,GEN |
16470-50140 |
from US $65.02 |
||
|
16533B
|
16533B
16533-50090 Support, Radiator, No.1[01.2003 - 08.2009] 1GRFE..GRJ12#..ARL,GCC,GEN NO.1 |
16533-50090 |
from US $5.79 |
||
|
16533B
|
16533B
16534-50050 Support, Radiator, No.1[01.2003 - 08.2009] 1GRFE..GRJ12#..ARL,GCC,GEN NO.2 |
16534-50050 |
from US $5.64 |
||
|
16534
|
16534
16534-50050 Support, Radiator, No.1[01.2003 - 08.2009] 1GRFE..GRJ12#..ARL,GCC,GEN |
16534-50050 |
from US $5.64 |
||
|
16547
|
16547
16547-50010 Bush, Radiator Support, No.1[01.2003 - 08.2009] 1GRFE..GRJ12#..ARL,GCC,GEN |
16547-50010 |
from US $7.49 |
||
|
16567
|
16567
16567-31010 Hose(For Radiator Reserve Tank)[01.2003 - 08.2004] 1GRFE..GRJ12#..ARL,GCC,GEN |
16567-31010 |
from US $5.19 |
||
|
16571C
|
16571C
16571-31130 Hose, Radiator, No.1[01.2003 - 08.2004] 1GRFE..GRJ12#..ARL,GCC,GEN |
16571-31130 |
from US $20.03 |
||
|
16571D
|
16571D
90467-37005 Clip(For Water Inlet Hose)[01.2003 - 01.2007] 1GRFE..GRJ12#..ARL,GCC,GEN |
90467-37005 |
from US $3.96 |
||
|
16572D
|
16572D
16572-31170 Hose, Radiator, No.2[01.2003 - 08.2004] 1GRFE..GRJ12#..ARL,GCC,GEN |
16572-31170 |
from US $17.51 |
||
|
16572E
|
16572E
90467-37005 Clip(For Water Inlet Hose)[01.2003 - 01.2007] 1GRFE..GRJ12#..ARL,GCC,GEN |
90467-37005 |
from US $3.96 |
||
|
16711
|
16711
16711-31200 Shroud, Fan[01.2003 - 08.2004] 1GRFE..GRJ12#..ARL,GCC,GEN |
16711-31200 |
from US $114.41 |
||
|
9011906779
|
9011906779
90119-06779 BOLT W-WASHER |
90119-06779 |
from US $0.68 |
||
|
9017906185
|
9017906185
90179-06185 CLIP BUMPER |
90179-06185 |
US $3.94 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.84 |
||
|
9162160840
|
9162160840
91621-60840 Bolt(For Rocker Support Set) |
91621-60840 |
from US $0.96 |
||
