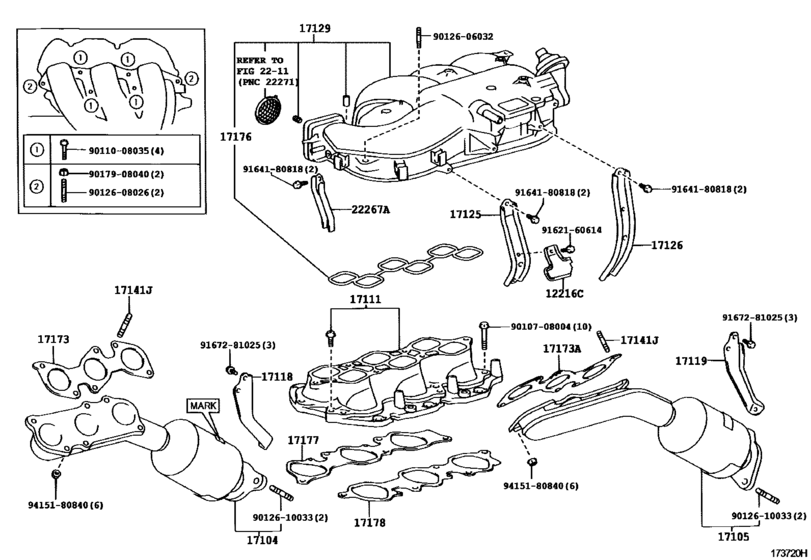

Manifold ([01.2003 - ] (0301- )1GRFE) Diagram Toyota LAND CRUISER PRADO
- Year
- 2003 - 2004
- Sales region
- Europe
- Frame
- GRJ120
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 120
- From
- 01.2003
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12216C
|
12216C
12216-31010 Plate, Oil BaffleOIL BAFFLE [01.2003 - 02.2005] 1GRFE..GRJ12# |
12216-31010 |
US $6.99 |
||
|
17104
|
17104
17140-31010 Manifold Sub-Assy, Exhaust, RhEXHAUST, RH [01.2003 - 10.2003] 1GRFE..GRJ12# *115=TOYOTA/03-/Y |
17140-31010 |
US $1,191.01 |
||
| replacement | |||||
|
17104
|
17104
17140-31011 Manifold Sub-Assy, Exhaust, RhEXHAUST, RH [01.2003 - 10.2003] 1GRFE..GRJ12# *115=TOYOTA/03-/Y |
17140-31011 |
from US $992.99 |
||
|
17104
|
17104
17140-31011 Manifold Sub-Assy, Exhaust, RhEXHAUST, RH [10.2003 - 08.2006] 1GRFE..GRJ12# *115=TOYOTA/03-/Y,MARK 17140-31011 |
17140-31011 |
from US $992.99 |
||
|
17105
|
17105
17150-31010 Manifold Sub-Assy, Exhaust, LhEXHAUST, LH [01.2003 - 10.2003] 1GRFE..GRJ12# *115=TOYOTA/03-/Y |
17150-31010 |
US $1,191.01 |
||
| replacement | |||||
|
17105
|
17105
17150-31011 Manifold Sub-Assy, Exhaust, LhEXHAUST, LH [01.2003 - 10.2003] 1GRFE..GRJ12# *115=TOYOTA/03-/Y |
17150-31011 |
from US $992.99 |
||
|
17105
|
17105
17150-31011 Manifold Sub-Assy, Exhaust, LhEXHAUST, LH [10.2003 - 08.2006] 1GRFE..GRJ12# *115=TOYOTA/03-/Y |
17150-31011 |
from US $992.99 |
||
|
17111
|
17111
17101-31010 Manifold, Intake[01.2003 -] 1GRFE..GRJ12# |
17101-31010 |
US $320.32 |
||
| replacement | |||||
|
17111
|
17111
17101-31011 Manifold, Intake[01.2003 -] 1GRFE..GRJ12# |
17101-31011 |
US $241.70 |
||
|
17118
|
17118
17118-31010
Stay, Manifold
[01.2003 - 08.2004] 1GRFE..GRJ12# |
17118-31010 |
— | ||
|
17119
|
17119
17119-31010
Stay, Manifold, No.2
[01.2003 - 08.2004] 1GRFE..GRJ12# |
17119-31010 |
— | ||
|
17125
|
17125
17125-31010 Stay, Surge Tank, No.1[01.2003 -] 1GRFE..GRJ12# |
17125-31010 |
US $16.60 |
||
|
17126
|
17126
17126-31010 Stay, Surge Tank, No.2[01.2003 -] 1GRFE..GRJ12# |
17126-31010 |
US $17.04 |
||
|
17129
|
17129
17109-31010
Tank, Intake Air Surge
[01.2003 - 08.2004] 1GRFE..GRJ12# |
17109-31010 |
— | ||
| replacement | |||||
|
17129
|
17129
17109-31015 Tank, Intake Air Surge[01.2003 - 08.2004] 1GRFE..GRJ12# |
17109-31015 |
from US $312.49 |
||
|
17141J
|
17141J
90126-08037 Bolt, Stud(For Oil Strainer)[01.2003 - 08.2003] 1GRFE..GRJ12# |
90126-08037 |
from US $3.69 |
||
|
17141J
|
17141J
90126-08052 Bolt, Stud(For Oil Pan)[08.2003 -] 1GRFE..GRJ12# |
90126-08052 |
from US $0.78 |
||
|
17173
|
17173
17173-31010 Gasket, Exhaust Manifold To Head[01.2003 -] 1GRFE..GRJ12# |
17173-31010 |
from US $12.99 |
||
|
17173A
|
17173A
17173-31010 Gasket, Exhaust Manifold To Head[01.2003 -] 1GRFE..GRJ12# |
17173-31010 |
from US $12.99 |
||
|
17176
|
17176
17176-31010
Gasket, Air Surge Tank To Intake Manifold
[01.2003 - 08.2004] 1GRFE..GRJ12# |
17176-31010 |
— | ||
| replacement | |||||
|
17176
|
17176
17176-31160 Gasket, Air Surge Tank To Intake Manifold[01.2003 - 08.2004] 1GRFE..GRJ12# |
17176-31160 |
from US $10.86 |
||
|
17177
|
17177
17177-31010 Gasket, Intake Manifold To Head, No.1[01.2003 -] 1GRFE..GRJ12# |
17177-31010 |
from US $6.67 |
||
|
17178
|
17178
17178-31010 Gasket, Intake Manifold To Head, No.2[01.2003 -] 1GRFE..GRJ12# |
17178-31010 |
from US $6.73 |
||
|
22267A
|
22267A
22267-31010 Bracket, Throttle Body[01.2003 -] 1GRFE..GRJ12# |
22267-31010 |
from US $8.01 |
||
|
9010708004
|
9010708004
90107-08004 New Genuine Part |
90107-08004 |
US $1.79 |
||
|
9011008035
|
9011008035
90110-08035 New Genuine Part |
90110-08035 |
US $1.38 |
||
|
9012606032
|
9012606032
90126-06032 STUD HEXALOBULAR |
90126-06032 |
US $0.87 |
||
|
9012608026
|
9012608026
90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head) |
90126-08026 |
from US $2.61 |
||
|
9012610033
|
9012610033
90126-10033 Bolt, Stud(For Exhaust Manifold, Rh) |
90126-10033 |
from US $4.60 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.78 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.13 |
||
|
9415180840
|
9415180840
94151-80840 NUT FLANGE |
94151-80840 |
from US $0.80 |
||
