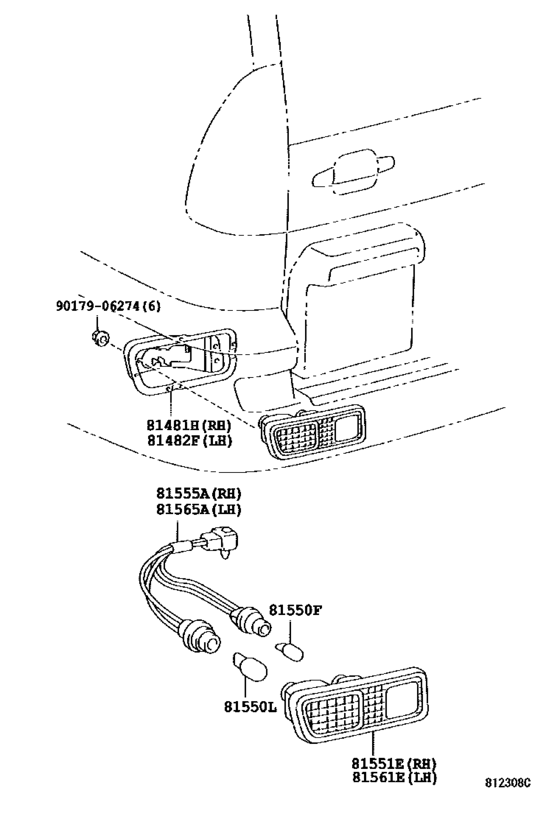

Rear Combination Lamp ([09.2002 - ] ENGLAND SPEC, IRELAND SPEC (0209- )RHD) Diagram Toyota LAND CRUISER PRADO
- Year
- 2003 - 2004
- Sales region
- Europe
- Frame
- GRJ120
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 120
- From
- 01.2003
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81481H
|
81481H
81481-60020 Bracket, Rear Fog LampREAR FOG LAMP [09.2002 -] GRJ120,KDJ12#..RHD ENGLAND SPEC; KDJ12#..RHD IRELAND SPEC |
81481-60020 |
from US $47.90 |
||
|
81482F
|
81482F
81482-60010 Bracket, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [09.2002 -] GRJ120,KDJ12#..RHD ENGLAND SPEC; KDJ12#..RHD IRELAND SPEC |
81482-60010 |
from US $47.90 |
||
|
81550F
|
81550F
99132-12050 Bulb (12V 5W)[09.2002 -] GRJ120,KDJ12#..RHD ENGLAND SPEC; KDJ12#..RHD IRELAND SPEC |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81550F
|
81550F
90080-81053 Bulb(For Clearance Lamp)[09.2002 -] GRJ120,KDJ12#..RHD ENGLAND SPEC; KDJ12#..RHD IRELAND SPEC |
90080-81053 |
US $1.01 |
||
|
81550L
|
81550L
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[09.2002 -] GRJ120,KDJ12#..RHD ENGLAND SPEC; KDJ12#..RHD IRELAND SPEC |
90981-15011 |
from US $4.60 |
||
|
81551E
|
81551E
81551-60720 Lens & Body, Rear Combination Lamp, No.2 RhREAR COMBINATION LAMP, NO.2 RH [09.2002 - 08.2004] GRJ120,KDJ12#..RHD ENGLAND SPEC; KDJ12#..RHD IRELAND SPEC |
81551-60720 |
from US $93.29 |
||
|
81555A
|
81555A
81555-60720 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [09.2002 -] GRJ120,KDJ12#..RHD ENGLAND SPEC; KDJ12#..RHD IRELAND SPEC |
81555-60720 |
US $24.36 |
||
|
81561E
|
81561E
81561-60640 Lens & Body, Rear Conbination Lanp, No.2 Lh[09.2002 -] GRJ120,KDJ12#..RHD ENGLAND SPEC; KDJ12#..RHD IRELAND SPEC |
81561-60640 |
US $94.32 |
||
|
81565A
|
81565A
81555-60720 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [09.2002 -] GRJ120,KDJ12#..RHD ENGLAND SPEC; KDJ12#..RHD IRELAND SPEC |
81555-60720 |
US $24.36 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
