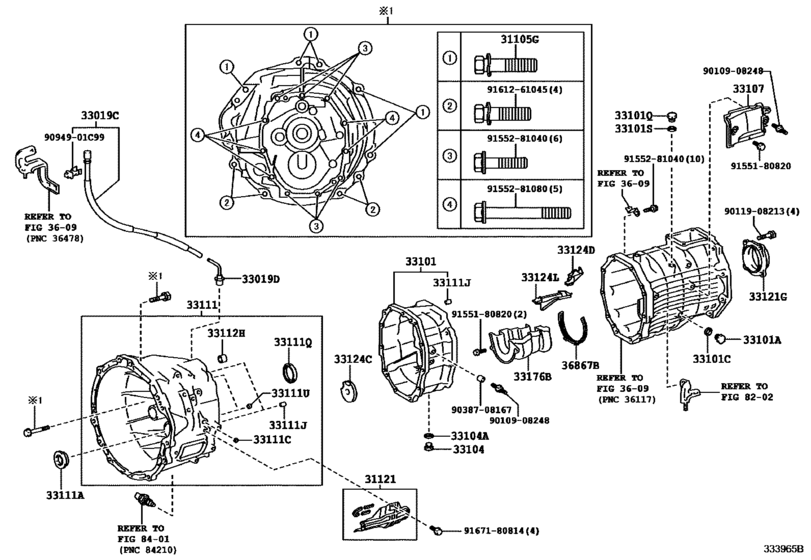

Clutch Housing & Transmission Case (Mtm) ([08.2009 - ] RA61F (0908- )GRJ150..6F) Diagram Toyota LAND CRUISER PRADO
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRJ150
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER PRADO 150
- From
- 08.2009
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
91619-61250 Bolt(For Transmission Case & Engine Setting)[08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) *12-1.25PX50-30 |
91619-61250 |
from US $1.95 |
||
|
31121
|
31121
31101-60020 Cover, Clutch Housing, No.1CLUTCH HOUSING, NO.1 [08.2009 - 08.2013] GRJ150..6F |
31101-60020 |
US $35.53 |
||
|
33019C
|
33019C
33019-60110
Breather Sub-Assy, Transmission
[08.2009 - 08.2013] GRJ150..6F |
33019-60110 |
— | ||
|
33019D
|
33019D
90412-05008
2 Way(For Transmission Breather Hose)
[08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) |
90412-05008 |
— | ||
|
33101
|
33101
33106-60010
Case Sub-Assy, Manual Transmission
[08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) |
33106-60010 |
— | ||
|
33101A
|
33101A
90341-18033 Plug(For Manual Transmission Filler)[08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) |
90341-18033 |
from US $3.40 |
||
|
33101C
|
33101C
90430-18008 Gasket[08.2009 - 08.2013] TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.2009 - 08.2013] TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
90430-T0021 |
US $1.01 |
||
|
33101Q
|
33101Q
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [08.2009 - 08.2013] TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
90341-18032 |
from US $3.76 |
||
|
33101S
|
33101S
90430-18008 Gasket[08.2009 - 08.2013] TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33101S
|
33101S
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.2009 - 08.2013] TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
90430-T0021 |
US $1.01 |
||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[08.2009 - 08.2013] GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18008 Gasket[08.2009 - 08.2013] TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.2009 - 08.2013] TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
90430-T0021 |
US $1.01 |
||
|
33107
|
33107
33107-60020
Cover Sub-Assy, Transmission, Upper
[08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) |
33107-60020 |
— | ||
|
33111
|
33111
33101-60160
Case, Manual Transmission
[08.2009 - 08.2013] GRJ150..6F |
33101-60160 |
— | ||
|
33111A
|
33111A
90341-42001 Plug, Manual Transmission CaseMANUAL TRANSMISSION CASE [08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) |
90341-42001 |
US $5.59 |
||
|
33111C
|
33111C
96411-41000 Plug, Tight, No.2[08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) OD=10 |
96411-41000 |
US $2.62 |
||
|
33111J
|
33111J
90250-10232 Pin, Straight(For Engine Rear Oil Seal)[08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) L=15,OD=8 |
90250-10232 |
US $1.79 |
||
|
33111Q
|
33111Q
90311-34029 Seal, Oil(For Transmission Case)OIL(FOR TRANSMISSION CASE) [08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) |
90311-34029 |
from US $3.33 |
||
|
33111U
|
33111U
90253-11021 Pin, Ring[08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) L=8,OD=11 |
90253-11021 |
from US $1.44 |
||
|
33112H
|
33112H
90364-18011
Bearing, Transmission Case Needle
[08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) |
90364-18011 |
— | ||
|
33121G
|
33121G
33121-35110 Cover Sub-Assy, Manual Transmission CaseMANUAL TRANSMISSION CASE [08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) |
33121-35110 |
from US $27.81 |
||
|
33124C
|
33124C
33124-35130 Pipe, Oil Receiver, No.2(Mtm)OIL RECEIVER, NO.2(MTM) [08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) |
33124-35130 |
US $3.58 |
||
|
33124D
|
33124D
33124-35140 Pipe, Oil Receiver, N0.3(Mtm)OIL RECEIVER, N0.3(MTM) [08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) |
33124-35140 |
US $8.91 |
||
|
33124L
|
33124L
33124-35121 Pipe, Oil Receiver, No.1(Mtm)OIL RECEIVER, NO.1(MTM) [08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) |
33124-35121 |
US $9.26 |
||
|
33176B
|
33176B
33176-35030 Separator, Transmission Oil(Mtm)TRANSMISSION OIL(MTM) [08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) |
33176-35030 |
US $38.73 |
||
|
36867B
|
36867B
36867-35010 Seal, Packing (For Oil Separator)PACKING (FOR OIL SEPARATOR) [08.2009 - 08.2013] GRJ150..6F;KDJ150..6F..(ARL,GEN) |
36867-35010 |
US $4.68 |
||
|
9094901C99
|
9094901C99
90949-01C99 Clip, Radiator Hose, No.5 |
90949-01C99 |
US $1.31 |
||
|
9010908248
|
9010908248
90109-08248 Bolt(For Clutch Release Cylinder Setting) |
90109-08248 |
US $1.43 |
||
|
9011908213
|
9011908213
90119-08213 Bolt, W/washer(For Transmission Case Cover) |
90119-08213 |
US $3.23 |
||
|
9038708167
|
9038708167
90387-08167
New Genuine Part
|
90387-08167 |
— | ||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
|
9155281040
|
9155281040
91552-81040 Bolt(For Alternator) |
91552-81040 |
from US $1.15 |
||
|
9155281080
|
9155281080
91552-81080 Bolt(For Alternator) |
91552-81080 |
from US $1.50 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
|
9167180814
|
9167180814
91671-80814 BOLT FLANGE WWASER |
91671-80814 |
US $1.43 |
||
