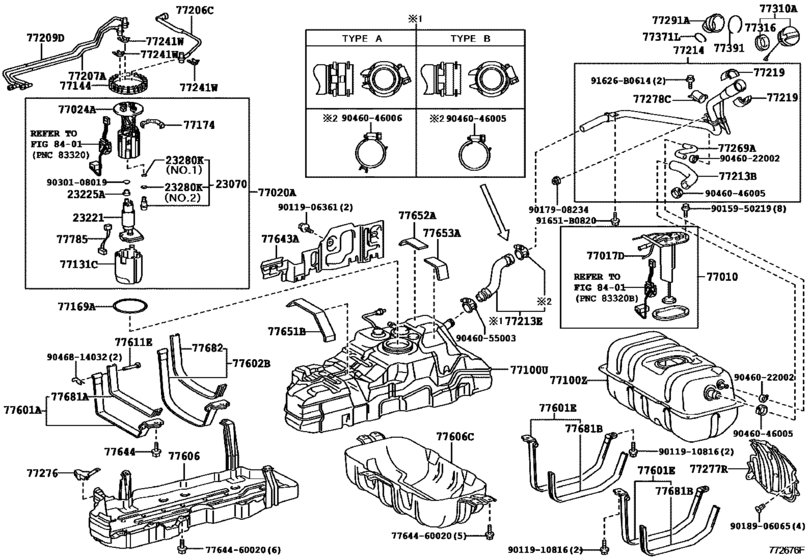

Fuel Tank & Tube ([08.2009 - ] FUEL TANK,W(SUB TANK) (0908- )GRJ150) Diagram Toyota LAND CRUISER PRADO
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRJ150
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER PRADO 150
- From
- 08.2009
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23070
|
23070
23070-31010 Valve Assy, Fuel MainFUEL MAIN [08.2009 - 08.2013] 1GRFE..GRJ150 |
23070-31010 |
from US $27.77 |
||
|
23221
|
23221
23220-31430 Pump Assy, Fuel W/filterFUEL [08.2009 - 08.2013] 1GRFE..GRJ150 |
23220-31430 |
from US $314.61 |
||
|
23221
|
23221
23220-31460 Pump Assy, Fuel W/filterFUEL [08.2009 - 08.2013] 1GRFE..GRJ150 FUEL TANK-WITH(SUB TANK) |
23220-31460 |
US $307.59 |
||
|
23225A
|
23225A
23225-23010 Spacer, Fuel Pump[08.2009 - 08.2013] 1GRFE..GRJ150;2TRFE..TRJ150..LHD |
23225-23010 |
from US $0.72 |
||
|
23280K
|
23280K
90301-04013 Ring, O(For Fuel Pump)[08.2009 - 08.2013] 1GRFE..GRJ150 NO.1 |
90301-04013 |
from US $2.16 |
||
|
23280K
|
23280K
90301-15024 Ring, O(For Fuel Pump)[08.2009 - 08.2013] 1GRFE..GRJ150 NO.2 |
90301-15024 |
from US $2.15 |
||
|
77010
|
77010
77010-60230 Tube Assy, Fuel Tank VentFUEL TANK VENT [08.2009 - 08.2013] GRJ150;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
77010-60230 |
US $180.43 |
||
|
77017D
|
77017D
77017-60590 Tube Sub-Assy, Fuel Tank Vent[08.2009 - 08.2013] GRJ150;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
77017-60590 |
US $91.20 |
||
|
77020A
|
77020A
77020-60410
Tube Assy, Fuel Suction W/pump & Gage
[08.2009 - 08.2013] GRJ150 |
77020-60410 |
— | ||
| replacement | |||||
|
77020A
|
77020A
77020-60411 Tube Assy, Fuel Suction W/pump & Gage[08.2009 - 08.2013] GRJ150 |
77020-60411 |
from US $399.09 |
||
|
77020A
|
77020A
77020-60411 Tube Assy, Fuel Suction W/pump & Gage[10.2013 - 06.2015] GRJ150 |
77020-60411 |
from US $399.09 |
||
|
77020A
|
77020A
77020-60430 Tube Assy, Fuel Suction W/pump & GageFUEL SUCTION W/PUMP & GAGE [08.2009 - 08.2013] GRJ150 FUEL TANK-WITH(SUB TANK) |
77020-60430 |
US $448.34 |
||
|
77024A
|
77024A
77024-60260 Plate Sub-Assy, Fuel SuctionFUEL SUCTION [08.2009 - 08.2013] GRJ150 |
77024-60260 |
US $55.91 |
||
|
77024A
|
77024A
77024-60270 Plate Sub-Assy, Fuel SuctionFUEL SUCTION [08.2009 - 08.2013] GRJ150 FUEL TANK-WITH(SUB TANK) |
77024-60270 |
US $88.49 |
||
|
77100U
|
77100U
77001-35A30
Tank Sub-Assy, Fuel
[08.2009 - 08.2013] GRJ150;TRJ150..LHD |
77001-35A30 |
— | ||
| replacement | |||||
|
77100U
|
77100U
77001-35A31 Tank Sub-Assy, Fuel[08.2009 - 08.2013] GRJ150;TRJ150..LHD |
77001-35A31 |
US $518.51 |
||
|
77100U
|
77100U
77001-35A31 Tank Sub-Assy, Fuel[11.2016 -] GRJ150,TRJ150 |
77001-35A31 |
US $518.51 |
||
|
77100U
|
77100U
77001-60A40
Tank Sub-Assy, Fuel
[08.2009 - 08.2013] GRJ150,LJ150;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
77001-60A40 |
— | ||
|
77100Z
|
77100Z
77001-60730 Tank Sub-Assy, Fuel SubFUEL SUB [08.2009 - 08.2013] GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
77001-60730 |
US $357.30 |
||
|
77100Z
|
77100Z
77001-60B50 Tank Sub-Assy, Fuel Sub[10.2014 - 06.2015] GRJ150;TRJ150..GEN FUEL TANK-WITH(SUB TANK) |
77001-60B50 |
US $613.26 |
||
|
77131C
|
77131C
77131-60090 Sub-Tank, Fuel, No.1FUEL, NO.1 [08.2009 - 08.2013] GRJ150;TRJ150..LHD |
77131-60090 |
from US $18.48 |
||
|
77144
|
77144
77144-35010 Retainer, Fuel Pump Gauge[08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77144-35010 |
from US $28.74 |
||
|
77169A
|
77169A
77169-35010
Gasket, Fuel Suction Tube Set
[08.2009 - 01.2010] GRJ150,TRJ150 |
77169-35010 |
— | ||
| replacement | |||||
|
77169A
|
77169A
77169-30050 Gasket, Fuel Suction Tube Set(for the fuel tank pump housing) [08.2009 - 01.2010] GRJ150,TRJ150 |
77169-30050 |
from US $4.84 |
||
|
77169A
|
77169A
77169-47030 Gasket, Fuel Suction Tube Set[02.2010 - 08.2013] GRJ150;TRJ150..LHD |
77169-47030 |
from US $3.94 |
||
|
77174
|
77174
77174-60020 Support, Fuel Suction, No.1FUEL SUCTION, NO.1 [08.2009 - 08.2013] GRJ150;TRJ150..LHD |
77174-60020 |
US $5.53 |
||
|
77206C
|
77206C
77206-60530
Tube Sub-Assy, Fuel Main, No.2
[08.2009 - 08.2013] GRJ150;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
77206-60530 |
— | ||
|
77207A
|
77207A
77204-60100 Tube, Fuel Tank ReturnFUEL RETURN [08.2009 - 08.2013] GRJ150; TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
77204-60100 |
US $25.51 |
||
|
77209D
|
77209D
77209-60530 Tube Sub-Assy, Fuel Tank MainFUEL TANK MAIN [08.2009 - 08.2013] GRJ150;TRJ150..LHD |
77209-60530 |
US $25.51 |
||
|
77213B
|
77213B
77213-60370
Hose, Fuel Tank To Filler Pipe
[08.2009 - 08.2013] GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
77213-60370 |
— | ||
|
77213E
|
77213E
77213-60360 Hose, Fuel Tank To Filler PipeFUEL TANK TO FILLER PIPE [08.2009 - 05.2010] GRJ150,KDJ150,LJ150,TRJ150 |
77213-60360 |
from US $28.04 |
||
|
77213E
|
77213E
77213-60390 Hose, Fuel Tank To Filler Pipe[05.2010 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC TYPE B:REFER ILLUST. |
77213-60390 |
US $40.66 |
||
|
77214
|
77214
77210-60140 Pipe, Fuel Tank FillerFUEL TANK FILLER [08.2009 - 08.2013] GRJ150;TRJ150..LHD |
77210-60140 |
US $148.80 |
||
|
77214
|
77214
77210-60160
Pipe, Fuel Tank Filler
[08.2009 - 08.2013] GRJ150;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
77210-60160 |
— | ||
|
77219
|
77219
77219-52040 Cover, Fuel Tank Filler Pipe[08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
77219-52040 |
US $4.68 |
||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[12.2009 - 08.2013] GRJ150;TRJ150..LHD |
77241-33011 |
from US $0.88 |
||
|
77241W
|
77241W
77241-60320 Clip, Tube Joint[08.2009 - 11.2009] GRJ150,TRJ150 |
77241-60320 |
from US $0.86 |
||
|
77269A
|
77269A
77269-60020
Hose, Fuel Tank Breather
[08.2009 - 08.2013] GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
77269-60020 |
— | ||
|
77276
|
77276
77276-35040 Protector, Fuel Hose[08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77276-35040 |
US $5.82 |
||
|
77277R
|
77277R
77277-60150 Protector, Fuel Tank Filler PipeFUEL TANK FILLER PIPE [08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77277-60150 |
from US $12.46 |
||
|
77278C
|
77278C
77277-52020 Protector, Fuel Tank Filler Pipe[08.2009 - 11.2009] GRJ150,KDJ150,LJ150,TRJ150 |
77277-52020 |
US $8.44 |
||
|
77278C
|
77278C
77277-60190 Protector, Fuel Tank Filler Pipe, No.2FUEL TANK FILLER PIPE, NO.2 [12.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77277-60190 |
US $9.90 |
||
|
77291A
|
77291A
77291-60130 Shield, Fuel Tank Filler PipeFUEL TANK FILLER PIPE [08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77291-60130 |
from US $22.41 |
||
|
77310A
|
77310A
77300-52030 Cap Assy, Fuel Tank[08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
77300-52030 |
from US $26.03 |
||
|
77316
|
77316
77316-52040 Gasket, Fuel Tank Cap[08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
77316-52040 |
from US $4.12 |
||
|
77371L
|
77371L
77371-35010 Ring, Fuel Tank Filler Pipe Shield[08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
77371-35010 |
from US $1.79 |
||
|
77391
|
77391
77391-12060 Ring, Fuel Inlet Box[08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77391-12060 |
US $3.20 |
||
|
77601A
|
77601A
77601-60340
Band Sub-Assy, Fuel Tank, No.1
[08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77601-60340 |
— | ||
| replacement | |||||
|
77601A
|
77601A
77601-60420 Band Sub-Assy, Fuel Tank, No.1[08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77601-60420 |
US $43.01 |
||
|
77601A
|
77601A
77601-60420 Band Sub-Assy, Fuel Tank, No.1[07.2016 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ150 |
77601-60420 |
US $43.01 |
||
|
77601E
|
77601E
77601-60320 Band Sub-Assy, Fuel TankFUEL TANK [08.2009 - 08.2013] GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
77601-60320 |
US $51.11 |
||
|
77602B
|
77602B
77602-60120 Band Sub-Assy, Fuel Tank, No.1 LhFUEL TANK, NO.1 LH [08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77602-60120 |
US $43.01 |
||
|
77606
|
77606
77606-60190 Protector Sub-Assy, Fuel Tank, No.1FUEL TANK, NO.1 [08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77606-60190 |
from US $161.60 |
||
|
77606C
|
77606C
77606-60180 Protector, Fuel Tank, No.2FUEL TANK, NO.2 [08.2009 - 08.2013] GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
77606-60180 |
from US $267.20 |
||
|
77611E
|
77611E
77653-35040 Pin (For Fuel Tank Band)[08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77653-35040 |
US $8.06 |
||
|
77643A
|
77643A
77643-35020 Protector, Fuel Tank, No.3[08.2009 - 08.2013] GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77643-35020 |
US $26.06 |
||
| replacement | |||||
|
77643A
|
77643A
77643-35040 Protector, Fuel Tank, No.3[08.2009 - 08.2013] GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77643-35040 |
US $27.26 |
||
|
77643A
|
77643A
77643-35040 Protector, Fuel Tank, No.3[02.2016 -] GDJ150,GRJ150,KDJ150,LJ150 |
77643-35040 |
US $27.26 |
||
|
77644
|
77644
77644-35030 Bolt, Fuel Tank[08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77644-35030 |
from US $1.44 |
||
|
77651B
|
77651B
77651-35070 Cushion, Fuel Tank[08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77651-35070 |
US $17.74 |
||
|
77652A
|
77652A
77652-35060 Cushion, Fuel Tank, No.2[08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77652-35060 |
US $8.96 |
||
|
77653A
|
77653A
77653-35050 Cushion, Fuel Tank, No.3[08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77653-35050 |
US $11.65 |
||
|
77681A
|
77681A
77681-60210 Seat, Fuel Tank Band[08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77681-60210 |
US $11.36 |
||
|
77681B
|
77681B
77681-60200
Seat, Fuel Tank Band
[08.2009 - 08.2013] GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
77681-60200 |
— | ||
|
77682
|
77682
77681-35041 Seat, Fuel Tank Band[08.2009 - 08.2013] TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
77681-35041 |
US $17.65 |
||
|
77785
|
77785
77785-60020
Harness, Fuel Pump
[08.2009 - 08.2013] GRJ150;TRJ150..LHD |
77785-60020 |
— | ||
| replacement | |||||
|
77785
|
77785
77785-60021 HARNESS FUEL PUMP[08.2009 - 08.2013] GRJ150;TRJ150..LHD |
77785-60021 |
from US $13.67 |
||
|
91626B0614
|
91626B0614
91626-B0614 BOLT, W/WASHER |
91626-B0614 |
US $1.08 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
7764460020
|
7764460020
77644-60020 Bolt, Fuel Tank |
77644-60020 |
US $1.79 |
||
|
9011906361
|
9011906361
90119-06361 BOLT WWASHER |
90119-06361 |
US $1.43 |
||
|
9011910816
|
9011910816
90119-10816 BOLT W-WASHER |
90119-10816 |
from US $1.15 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.59 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9017908234
|
9017908234
90179-08234 NUT |
90179-08234 |
from US $0.82 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.76 |
||
|
9030108019
|
9030108019
90301-08019 Ring, O(For Fuel Pressure Regulator) |
90301-08019 |
from US $2.22 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.23 |
||
|
9046046005
|
9046046005
90460-46005 Clamp (For Fuel Filler Pipe) |
90460-46005 |
from US $2.69 |
||
|
9046046006
|
9046046006
90460-46006 Clamp (For Fuel Filler Pipe) |
90460-46006 |
from US $4.02 |
||
|
9046055003
|
9046055003
90460-55003 Clamp Or Clip(For Air Hose, No.1) |
90460-55003 |
from US $4.84 |
||
|
9046814032
|
9046814032
90468-14032 CLIP |
90468-14032 |
US $1.61 |
||
