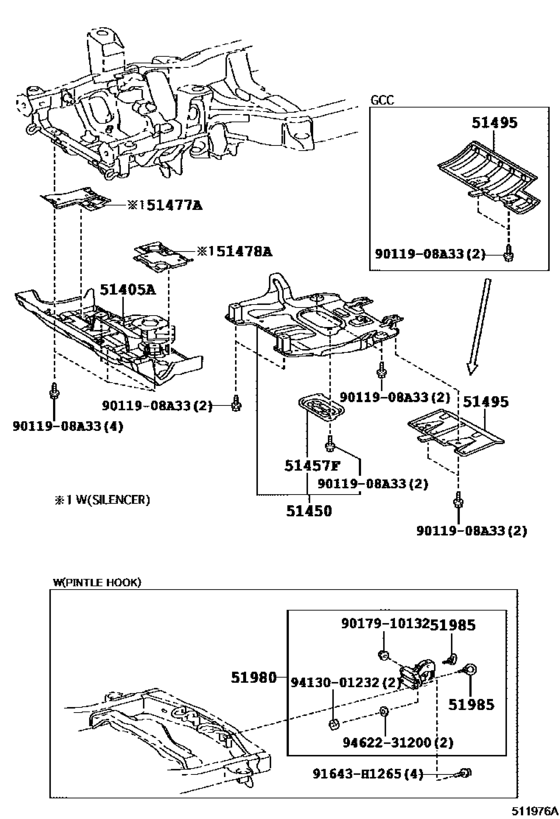

Suspension Crossmember & Under Cover ([08.2009 - ] W(KDSS) (0908- )) Diagram Toyota LAND CRUISER PRADO
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRJ150
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER PRADO 150
- From
- 08.2009
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51405A
|
51405A
51405-60210 Cover Sub-Assy, Engine Under, No.1ENGINE UNDER, NO.1 [08.2009 - 08.2013] GRJ150,LJ150,TRJ155..4FC,5F,5FC;GRJ150,TRJ150..LHD..(4FC,5F,6F) |
51405-60210 |
from US $220.70 |
||
|
51405A
|
51405A
51405-60220 Cover Sub-Assy, Engine Under, No.1ENGINE UNDER, NO.1 [08.2009 - 10.2011] GRJ150..5FC;GRJ150..LHD..6F VX PACKAGE; GRJ150..5FC;GRJ150..6F..GEN VX-L PACKAGE |
51405-60220 |
US $226.47 |
||
|
51450
|
51450
51450-60050 Cover Assy, Engine Under, RearENGINE UNDER, REAR [08.2009 - 08.2013] GRJ150,LJ150,TRJ155..4FC,5F,5FC;GRJ150,TRJ150..LHD..(4FC,5F,6F) |
51450-60050 |
from US $132.09 |
||
|
51457F
|
51457F
51457-60030 Seal, Engine Under CoverENGINE UNDER COVER [08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
51457-60030 |
from US $16.95 |
||
|
51495
|
51495
51495-60380 Cover, Transmission UnderTRANSMISSION UNDER [08.2009 - 08.2013] TRJ150..LHD..GEN;GRJ150,KDJ150,LJ150..ARL,GEN |
51495-60380 |
from US $30.38 |
||
|
51980
|
51980
51980-35010 Hook Assy, Pintle[08.2009 - 08.2013] TRJ150..LHD;KDJ150..GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155..GCC,GEN TOWING HITCH-WITH(PINTLE HOOK) |
51980-35010 |
US $207.74 |
||
|
51985
|
51985
51985-60011 Hook, Eyelet Pintle[08.2009 - 08.2013] TRJ150..LHD;KDJ150..GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155..GCC,GEN TOWING HITCH-WITH(PINTLE HOOK) |
51985-60011 |
from US $12.72 |
||
|
91643H1265
|
91643H1265
91643-H1265 BOLT WWASHER |
91643-H1265 |
US $3.84 |
||
|
9011908A33
|
9011908A33
90119-08A33 BOLT |
90119-08A33 |
from US $0.78 |
||
|
9017910132
|
9017910132
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9413001232
|
9413001232
94130-01232 NUT HEXAGOH |
94130-01232 |
US $1.79 |
||
|
9462231200
|
9462231200
94622-31200 WASHER PLATE |
94622-31200 |
from US $1.13 |
