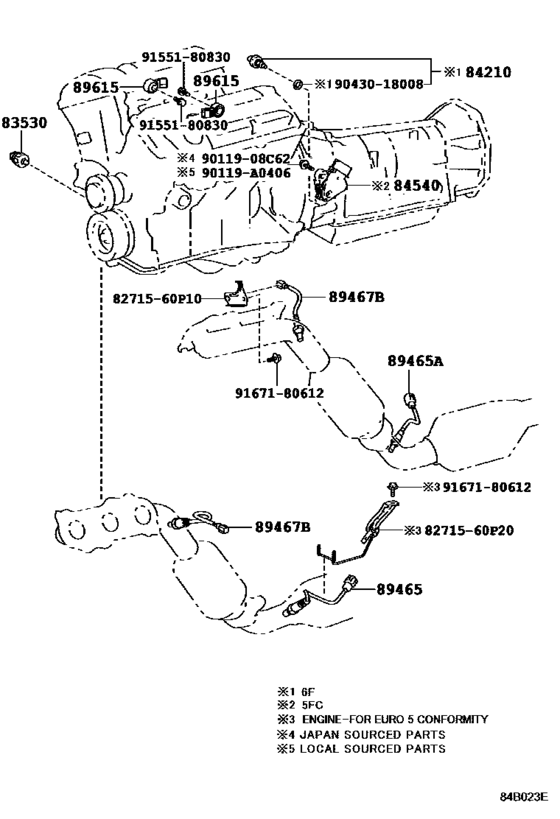

Switch & Relay & Computer ([08.2009 - 06.2015] ENGINE & TRANSMISSION (0908-1506)GRJ150) Diagram Toyota LAND CRUISER PRADO
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- GRJ150
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER PRADO 150
- From
- 08.2009
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[08.2009 - 04.2011] GRJ150,TRJ15# |
83530-28020 |
from US $24.41 |
||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2009 - 04.2011] GRJ150,TRJ15# |
83530-60020 |
from US $24.04 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [04.2011 - 08.2013] TRJ150..LHD;GRJ150,TRJ155 YAZAKI |
83530-60020 |
from US $24.04 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[08.2009 - 06.2012] TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[08.2009 - 06.2012] TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
84210-52050 |
from US $22.85 |
||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[06.2012 - 08.2013] GRJ150,KDJ150,LJ150,TRJ150..MTM |
84210-52050 |
from US $22.85 |
||
|
89465
|
89465
89465-60430 Sensor, Oxygen No.2OXYGEN [08.2009 - 08.2013] GRJ150 |
89465-60430 |
from US $129.56 |
||
|
89465A
|
89465A
89465-60320 Sensor, Oxygen[08.2009 - 08.2013] GRJ150 |
89465-60320 |
from US $129.56 |
||
|
89467B
|
89467B
89467-60060 Sensor, Air Fuel RatioAIR FUEL RATIO [08.2009 - 08.2013] GRJ150 |
89467-60060 |
from US $174.40 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[08.2009 - 08.2013] GRJ150 |
89615-20090 |
from US $39.82 |
||
|
90119A0406
|
90119A0406
90119-A0406
New Genuine Part
|
90119-A0406 |
— | ||
|
8271560P10
|
8271560P10
82715-60P10
Bracket,wiring Harness Clamp
|
82715-60P10 |
— | ||
|
8271560P20
|
8271560P20
82715-60P20
Bracket,wiring Harness Clamp
|
82715-60P20 |
— | ||
|
9011908C62
|
9011908C62
90119-08C62 New Genuine Part |
90119-08C62 |
US $1.43 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.01 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.92 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.66 |
||
