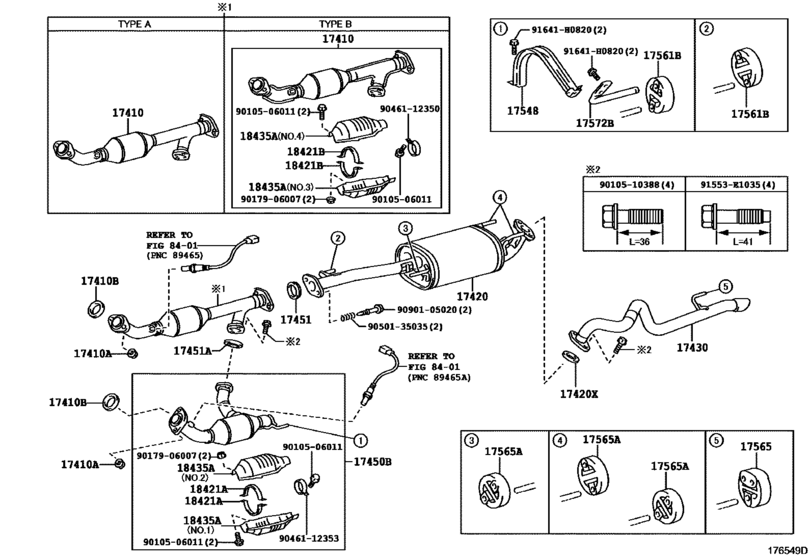

Exhaust Pipe ([08.2009 - ] (0908- )1GRFE) Diagram Toyota LAND CRUISER PRADO
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GRJ150
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LAND CRUISER PRADO 150
- From
- 06.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-31A10 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [06.2015 -] 1GRFE..GRJ150..LHD *114=TOYOTA/TB7/Y,TYPE A:REFER ILLUST.; 1GRFE..GRJ150..ARL *114=TOYOTA/TB7/Y,PAKISTAN SPEC&ENGINE-FOR EURO 3-1 CONFORMITY,TYPE A:REFER ILLUST .; 1GRFE..GRJ150..ARL *114=TOYOTA/TB7/Y,HONG KONG SPEC,TYPE A:REFER ILLUST.; 1GRFE |
17410-31A10 |
from US $912.04 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[06.2015 -] 1GRFE..GRJ150 |
90179-10070 |
from US $1.37 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[06.2015 -] 1GRFE..GRJ150 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06089 Gasket, Exhaust Pipe[06.2015 -] 1GRFE..GRJ150 |
90917-06089 |
from US $7.08 |
||
|
17420
|
17420
17420-31360 Pipe Assy, Exhaust, Center[06.2015 -] 1GRFE..GRJ150..LHD; 1GRFE..GRJ150..ARL PAKISTAN SPEC&ENGINE-FOR EURO 3-1 CONFORMITY; 1GRFE..GRJ150..ARL HONG KONG SPEC; 1GRFE..GRJ150..ARL SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&ENGINE-FOR EURO 3-1 CONFORMITY; 1GRFE..GRJ150..ARL SOUTH AFRICA SP |
17420-31360 |
from US $374.79 |
||
|
17420X
|
17420X
90917-06090 Gasket, Exhaust Pipe[06.2015 -] 1G#,1KDFTV,5LE,2TRFE..GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
90917-06090 |
from US $7.22 |
||
|
17430
|
17430
17430-31870 Pipe Assy, Exhaust, TailEXHAUST, TAIL [06.2015 -] 1G#,1KDFTV,5LE,2TRFE..GDJ150,GRJ150,KDJ150,LJ150,TRJ150 |
17430-31870 |
from US $172.38 |
||
|
17450B
|
17450B
17450-31111 Pipe Assy, Exhaust, Front No.2[06.2015 -] 1GRFE..GRJ150..LHD *114=TOYOTA/TB8/Y; 1GRFE..GRJ150..ARL *114=TOYOTA/TB8/Y,PAKISTAN SPEC&ENGINE-FOR EURO 3-1 CONFORMITY; 1GRFE..GRJ150..ARL *114=TOYOTA/TB8/Y,HONG KONG SPEC; 1GRFE..GRJ150..ARL *114=TOYOTA/TB8/Y,SOUTH AMERICA SPEC(EURO 3 CONFOR |
17450-31111 |
from US $995.75 |
||
|
17451
|
17451
17451-31020 Gasket, Exhaust PipeEXHAUST PIPE [06.2015 -] 1GRFE,1KDFTV,5LE..GRJ150,KDJ150,LJ150 |
17451-31020 |
from US $18.90 |
||
|
17451A
|
17451A
90917-06089 Gasket, Exhaust Pipe[06.2015 -] 1GRFE..GRJ150 |
90917-06089 |
from US $7.08 |
||
|
17548
|
17548
17548-31011 Bracket, Exhaust Pipe Stopper[06.2015 -] 1GRFE..GRJ150 |
17548-31011 |
US $40.33 |
||
|
17561B
|
17561B
17565-22040 Support, Exhaust Pipe, No.1[06.2015 -] 1GRFE..GRJ150 |
17565-22040 |
from US $9.48 |
||
|
17565
|
17565
17565-31050 Support, Exhaust Pipe, No.1[06.2015 -] 1GRFE,2TRFE..GRJ150,TRJ15# |
17565-31050 |
from US $12.54 |
||
|
17565A
|
17565A
17565-22040 Support, Exhaust Pipe, No.1[06.2015 -] 1G#,1KDFTV,5LE..GDJ150,GRJ150,KDJ150,LJ150 |
17565-22040 |
from US $9.48 |
||
|
17572B
|
17572B
17572-31110 Bracket, Exhaust Pipe Support, No.2EXHAUST PIPE SUPPORT, NO.2 [06.2015 -] 1GRFE..GRJ150 |
17572-31110 |
US $8.88 |
||
|
18421A
|
18421A
18421-75010 Stay, Converter Protector, Lh[06.2015 -] 1GRFE,2TRFE..GRJ150,TRJ15# |
18421-75010 |
US $24.36 |
||
|
18435A
|
18435A
18435-31030 Protector, Monolithic Converter[06.2015 -] 1GRFE..GRJ150 NO.2 |
18435-31030 |
US $50.67 |
||
|
18435A
|
18435A
18445-31010 Protector, Monolithic Converter[06.2015 -] 1GRFE..GRJ150..LHD NO.1; 1GRFE..GRJ150..ARL PAKISTAN SPEC&ENGINE-FOR EURO 3-1 CONFORMITY,NO.1; 1GRFE..GRJ150..ARL HONG KONG SPEC,NO.1; 1GRFE..GRJ150..ARL SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&ENGINE-FOR EURO 3-1 CONFORMITY,NO.1; 1GRFE..GRJ150. |
18445-31010 |
US $46.65 |
||
|
91553E1035
|
91553E1035
91553-E1035 BOLT FLANGE |
91553-E1035 |
from US $0.88 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.82 |
||
|
9010506011
|
9010506011
90105-06011 BOLT |
90105-06011 |
from US $0.74 |
||
|
9010510388
|
9010510388
90105-10388 BOLT |
90105-10388 |
from US $0.92 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.84 |
||
|
9046112350
|
9046112350
90461-12350 Clamp, Exhaust Pipe |
90461-12350 |
US $8.24 |
||
|
9046112353
|
9046112353
90461-12353 Clamp, Exhaust Pipe |
90461-12353 |
from US $10.93 |
||
|
9050135035
|
9050135035
90501-35035 Spring, Exhaust Pipe |
90501-35035 |
from US $3.45 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $4.12 |
||
