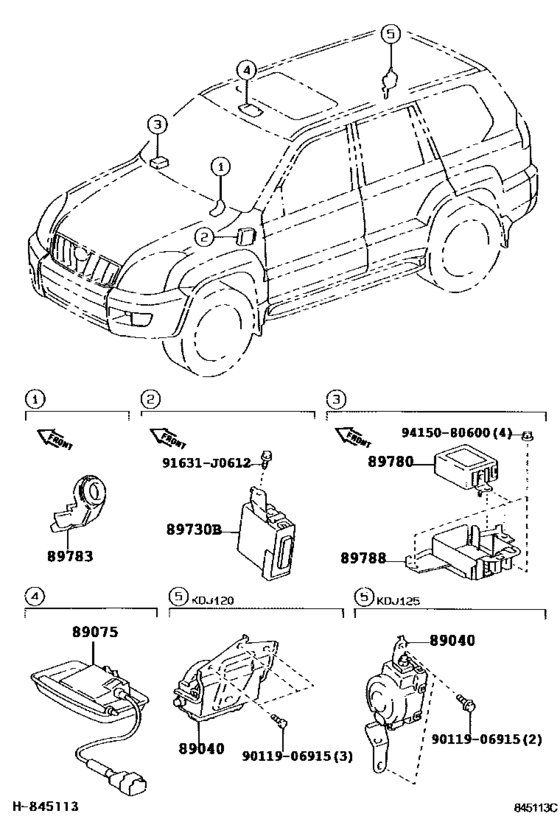

Anti-Theft Device ([09.2002 - 08.2009] (0209-0908)LHD) Diagram Toyota LAND CRUISER PRADO
- Year
- 2004 - 2009
- Sales region
- Europe
- Frame
- KDJ120
- grade
- GX
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 120
- From
- 08.2004
- To
- 08.2009
- Gear Shift Type
- 5FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89040
|
89040
89040-60020
Siren Assy, Theft Warning
[09.2002 -] GRJ120,KDJ120 ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM; GRJ120,KDJ120..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK |
89040-60020 |
— | ||
|
89075
|
89075
89075-60010-A0
Sensor Sub-Assy, Theft Warning
[09.2002 - 08.2009] GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0#; GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,IVORY,TRIM0# |
89075-60010-A0 |
— | ||
|
89075
|
89075
89075-60010-B0
Sensor Sub-Assy, Theft Warning
[09.2002 - 08.2009] GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1#; GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK,STONE,TRIM1# |
89075-60010-B0 |
— | ||
|
89075
|
89075
89075-60020-A0
Sensor Sub-Assy, Theft Warning
[09.2002 - 08.2009] GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,IVORY,TRIM0#; GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOC K,IVORY,TRIM0# |
89075-60020-A0 |
— | ||
|
89075
|
89075
89075-60020-B0
Sensor Sub-Assy, Theft Warning
[09.2002 - 08.2009] GRJ12#,KDJ12# W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,STONE,TRIM1#; GRJ120,KDJ12#..RHD W(*LEP1) & LEATHER SEAT PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOC K,STONE,TRIM1# |
89075-60020-B0 |
— | ||
|
89730B
|
89730B
89730-60080
Computer Assy, Theft Warning
[09.2002 - 06.2007] GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM; GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK |
89730-60080 |
— | ||
| replacement | |||||
|
89730B
|
89730B
89730-60081
Computer Assy, Theft Warning
[09.2002 - 06.2007] GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM; GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK |
89730-60081 |
— | ||
|
89730B
|
89730B
89730-60081
Computer Assy, Theft Warning
[07.2007 -] GRJ12#,KDJ12# ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM; GRJ120,KDJ12#..RHD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM & DOUBLE LOCK |
89730-60081 |
— | ||
|
89780
|
89780
89780-60320
Computer Assy, Transponder Key
[09.2002 - 06.2007] GRJ12#,KDJ12#..LHD |
89780-60320 |
— | ||
| replacement | |||||
|
89780
|
89780
89780-60321
Computer Assy, Transponder Key
[09.2002 - 06.2007] GRJ12#,KDJ12#..LHD |
89780-60321 |
— | ||
|
89780
|
89780
89780-60321
Computer Assy, Transponder Key
[07.2007 - 08.2009] GRJ12#,KDJ12#..LHD |
89780-60321 |
— | ||
|
89783
|
89783
89783-35030
Amplifier, Transponder Key
[09.2002 - 07.2005] GRJ12#,KDJ12# |
89783-35030 |
— | ||
| replacements | |||||
|
89783
|
89783
89783-48054
Amplifier, Transponder Key
[09.2002 - 07.2005] GRJ12#,KDJ12# |
89783-48054 |
— | ||
|
89783
|
89783
89783-48055 Amplifier, Transponder Key[09.2002 - 07.2005] GRJ12#,KDJ12# |
89783-48055 |
from US $143.27 |
||
|
89783
|
89783
89783-48050 Amplifier, Transponder Key[03.2008 - 06.2009] GRJ12#,KDJ12# |
89783-48050 |
US $122.30 |
||
| replacement | |||||
|
89783
|
89783
89783-48054
Amplifier, Transponder Key
[03.2008 - 06.2009] GRJ12#,KDJ12# |
89783-48054 |
— | ||
|
89783
|
89783
89783-48051 Amplifier, Transponder KeyTRANSPONDER KEY [07.2009 - 08.2009] GRJ12#,KDJ12# |
89783-48051 |
US $122.30 |
||
| replacement | |||||
|
89783
|
89783
89783-48054
Amplifier, Transponder Key
[07.2009 - 08.2009] GRJ12#,KDJ12# |
89783-48054 |
— | ||
|
89783
|
89783
89783-60110
Amplifier, Transponder Key
[08.2005 - 02.2008] GRJ12#,KDJ12# |
89783-60110 |
— | ||
| replacement | |||||
|
89783
|
89783
89783-60111
Amplifier, Transponder Key
[08.2005 - 02.2008] GRJ12#,KDJ12# |
89783-60111 |
— | ||
|
89788
|
89788
89788-60010 Bracket, Transponder KeyTRANSPONDER KEY [09.2002 - 08.2009] GRJ12#,KDJ12#..LHD |
89788-60010 |
US $29.41 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
