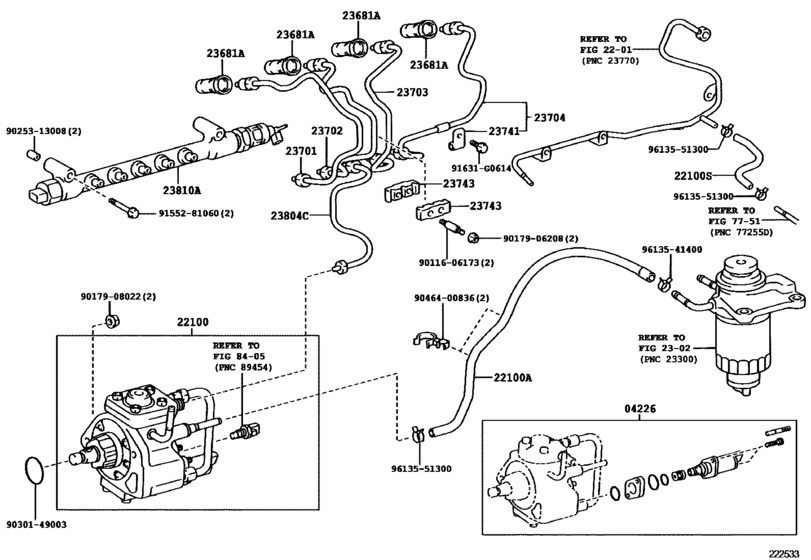

Injection Pump Assembly ([08.2004 - 08.2006] (0408-0608)1KDFTV) Diagram Toyota LAND CRUISER PRADO
- Year
- 2004 - 2009
- Sales region
- Europe
- Frame
- KDJ120
- grade
- GX
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 120
- From
- 08.2004
- To
- 08.2009
- Gear Shift Type
- 5FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04226
|
04226
04226-30010 Valve Kit, Suction Control[08.2004 - 08.2009] 1KDFTV..KDJ12# |
04226-30010 |
from US $273.04 |
||
|
22100
|
22100
22100-30040 Pump Assy, Injection Or Supply[08.2006 -] 1KDFTV..KDJ12# |
22100-30040 |
US $2,402.40 |
||
| replacement | |||||
|
22100
|
22100
22100-30090 Pump Assy, Injection Or Supply[08.2006 -] 1KDFTV..KDJ12# |
22100-30090 |
from US $1,687.26 |
||
|
22100
|
22100
22100-30050 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [08.2004 - 08.2006] 1KDFTV..KDJ12# |
22100-30050 |
US $2,868.32 |
||
|
22100A
|
22100A
23271-30120
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.2004 - 04.2006] 1KDFTV..KDJ12# |
23271-30120 |
— | ||
| replacement | |||||
|
22100A
|
22100A
23271-30121 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.2004 - 04.2006] 1KDFTV..KDJ12# |
23271-30121 |
US $15.38 |
||
|
22100A
|
22100A
23271-30121 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[05.2006 - 08.2006] 1KDFTV..KDJ12# |
23271-30121 |
US $15.38 |
||
|
22100A
|
22100A
23271-30230
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.2006 -] 1KDFTV..KDJ12# |
23271-30230 |
— | ||
|
22100S
|
22100S
23273-30080 Hose, Fuel(For Injection Pump To Fuel Pipe)[08.2004 - 04.2006] 1KDFTV..KDJ12# |
23273-30080 |
US $6.41 |
||
| replacement | |||||
|
22100S
|
22100S
23273-30081 Hose, Fuel(For Injection Pump To Fuel Pipe)[08.2004 - 04.2006] 1KDFTV..KDJ12# |
23273-30081 |
US $3.93 |
||
|
22100S
|
22100S
23273-30081 Hose, Fuel(For Injection Pump To Fuel Pipe)[05.2006 -] 1KDFTV..KDJ12# |
23273-30081 |
US $3.93 |
||
|
23681A
|
23681A
23681-30010 Seal, Nozzle Holder[09.2002 -] 1KDFTV..KDJ12# |
23681-30010 |
from US $1.99 |
||
|
23701
|
23701
23701-30030 Pipe Sub-Assy, Injection, No.1[08.2004 - 08.2006] 1KDFTV..KDJ12# |
23701-30030 |
US $48.38 |
||
|
23701
|
23701
23701-30060 Pipe Sub-Assy, Injection, No.1INJECTION, NO.1 [08.2006 -] 1KDFTV..KDJ12# |
23701-30060 |
from US $52.20 |
||
|
23702
|
23702
23702-30030 Pipe Sub-Assy, Injection, No.2[08.2004 - 08.2006] 1KDFTV..KDJ12# |
23702-30030 |
US $83.64 |
||
|
23702
|
23702
23702-30060 Pipe Sub-Assy, Injection, No.2INJECTION, NO.2 [08.2006 -] 1KDFTV..KDJ12# |
23702-30060 |
from US $52.53 |
||
|
23703
|
23703
23703-30030 Pipe Sub-Assy, Injection, No.3[08.2004 - 08.2006] 1KDFTV..KDJ12# |
23703-30030 |
US $48.38 |
||
|
23703
|
23703
23703-30060 Pipe Sub-Assy, Injection, No.3INJECTION, NO.3 [08.2006 -] 1KDFTV..KDJ12# |
23703-30060 |
from US $51.89 |
||
|
23704
|
23704
23704-39035 Pipe Sub-Assy, Injection, No.4[08.2004 - 08.2006] 1KDFTV..KDJ12# |
23704-39035 |
US $50.90 |
||
|
23704
|
23704
23704-39055 Pipe Sub-Assy, Injection, No.4INJECTION, NO.4 [08.2006 -] 1KDFTV..KDJ12# |
23704-39055 |
from US $58.77 |
||
|
23741
|
23741
23741-30010 Clamp, Injection Pipe, No.1[09.2002 -] 1KDFTV..KDJ12# |
23741-30010 |
US $5.38 |
||
|
23743
|
23743
23743-30011 Clamp, Injection Pipe, No.3[08.2004 -] 1KDFTV..KDJ12# |
23743-30011 |
from US $4.70 |
||
|
23804C
|
23804C
23804-30030 Pipe Sub-Assy, Fuel Inlet[08.2004 - 08.2006] 1KDFTV..KDJ12# |
23804-30030 |
US $73.42 |
||
|
23804C
|
23804C
23804-30060 Pipe Sub-Assy, Fuel InletFUEL INLET [08.2006 -] 1KDFTV..KDJ12# |
23804-30060 |
US $47.17 |
||
|
23810A
|
23810A
23810-30080 Rail Assy, Common[08.2004 - 08.2006] 1KDFTV..KDJ12# |
23810-30080 |
US $1,334.18 |
||
|
23810A
|
23810A
23810-30100 Rail Assy, CommonCOMMON [08.2006 -] 1KDFTV..KDJ12# |
23810-30100 |
from US $746.48 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.66 |
||
|
9011606173
|
9011606173
90116-06173 BOLT STUD |
90116-06173 |
US $1.51 |
||
|
9017906208
|
9017906208
90179-06208 NUT |
90179-06208 |
US $1.25 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.52 |
||
|
9025313008
|
9025313008
90253-13008 Pin, Ring(For Crankshaft Bearing Cap Set) |
90253-13008 |
US $2.04 |
||
|
9030149003
|
9030149003
90301-49003 Gasket, Injection Pump |
90301-49003 |
from US $2.20 |
||
|
9046400836
|
9046400836
90464-00836 Clamp, Fuel Hose, No.1 |
90464-00836 |
US $5.02 |
||
|
9155281060
|
9155281060
91552-81060 Bolt, No.3(For Alternator) |
91552-81060 |
from US $1.31 |
||
|
9613541400
|
9613541400
96135-41400 Clip(For Water By-Pass Hose No.1) |
96135-41400 |
from US $2.33 |
||
|
9613551300
|
9613551300
96135-51300 Clamp, Hose |
96135-51300 |
from US $2.13 |
||
