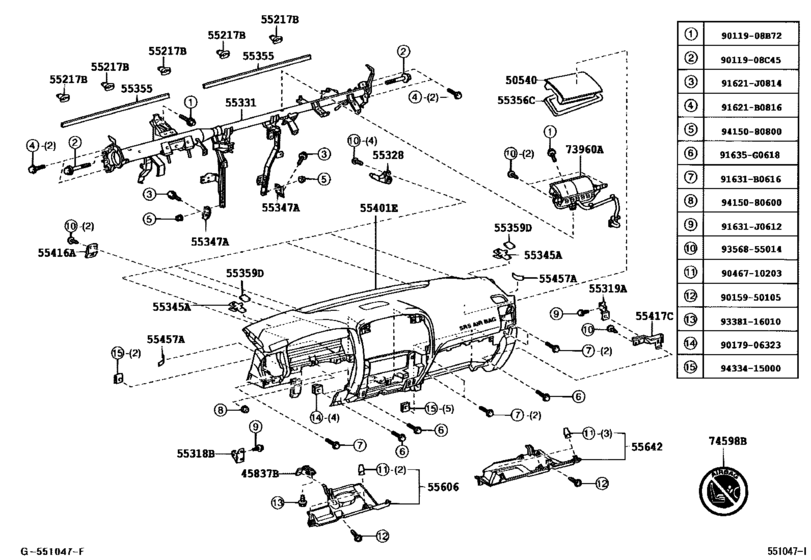

Instrument Panel & Glove Compartment ([09.2002 - ] (0209- )LHD) Diagram Toyota LAND CRUISER PRADO
- Year
- 2004 - 2009
- Sales region
- Europe
- Frame
- KDJ120
- grade
- GX
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 120
- From
- 08.2004
- To
- 08.2009
- Gear Shift Type
- 5FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45837B
|
45837B
45837-35030 Bracket, Steering Lower Tube, No.1STEERING LOWER TUBE, NO.1 [09.2002 - 08.2009] GRJ12#,KDJ12#..LHD |
45837-35030 |
US $4.66 |
||
|
50540
|
50540
50540-60030 Do0R Assy, Air Bag PassengerAIR BAG PASSENGER [09.2002 - 08.2009] GRJ12#,KDJ12#..LHD |
50540-60030 |
US $59.70 |
||
|
55217B
|
55217B
55217-35020 Retainer, Dash Panel Silencer[09.2002 -] GRJ12#,KDJ12# |
55217-35020 |
US $3.76 |
||
|
55318B
|
55318B
55318-60060 Extension, Instrument PanelINSTRUMENT PANEL [09.2002 -] GRJ12#,KDJ12#..LHD |
55318-60060 |
US $4.95 |
||
|
55319A
|
55319A
55319-60040 Extension, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [09.2002 -] GRJ12#,KDJ12#..LHD |
55319-60040 |
US $3.93 |
||
|
55328
|
55328
55328-60070 Pin, Instrument Panel, No.1[09.2002 - 08.2009] GRJ12#,KDJ12# |
55328-60070 |
from US $5.78 |
||
|
55331
|
55331
55330-60180 Reinforcement, Instrument PanelINSTRUMENT PANEL [09.2002 -] GRJ12#,KDJ12#..LHD |
55330-60180 |
from US $244.61 |
||
|
55345A
|
55345A
55345-35020 Clip, Instrument Panel, No.1[09.2002 -] GRJ12#,KDJ12# |
55345-35020 |
US $4.40 |
||
|
55347A
|
55347A
55347-35050 Bracket, Instrument Panel Brace Mounting, No.1[09.2002 -] GRJ12#,KDJ12# |
55347-35050 |
US $3.93 |
||
|
55355
|
55355
55355-60150 Cushion, Instrument Panel, No.1[04.2004 -] GRJ12#,KDJ12# L=620 |
55355-60150 |
US $5.24 |
||
|
55355
|
55355
55355-60160 Cushion, Instrument Panel, No.1[04.2004 -] GRJ12#,KDJ12# L=780 |
55355-60160 |
US $5.82 |
||
|
55356C
|
55356C
55356-35040 Cushion, Instrument Panel, No.2[09.2002 - 08.2009] GRJ12#,KDJ12# |
55356-35040 |
US $3.93 |
||
|
55359D
|
55359D
55359-35020 Cushion, Instrument Panel, No.5[09.2002 - 08.2009] GRJ12#,KDJ12# |
55359-35020 |
US $1.93 |
||
|
55401E
|
55401E
55401-60900-C0
Pad Sub-Assy, Instrument Panel Safety
[09.2002 - 05.2006] GRJ12#,KDJ12#..LHD BLACK,TRIM1# |
55401-60900-C0 |
— | ||
| replacement | |||||
|
55401E
|
55401E
55401-60922-C0
Pad Sub-Assy, Instrument Panel Safety
[09.2002 - 05.2006] GRJ12#,KDJ12#..LHD BLACK,TRIM1# |
55401-60922-C0 |
— | ||
|
55401E
|
55401E
55401-60900-E0
Pad Sub-Assy, Instrument Panel Safety
[09.2002 - 05.2006] GRJ12#,KDJ12#..LHD SANDAL WOOD,TRIM0# |
55401-60900-E0 |
— | ||
| replacement | |||||
|
55401E
|
55401E
55401-60922-E0
Pad Sub-Assy, Instrument Panel Safety
[09.2002 - 05.2006] GRJ12#,KDJ12#..LHD SANDAL WOOD,TRIM0# |
55401-60922-E0 |
— | ||
|
55401E
|
55401E
55401-60901-C0 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [09.2002 - 05.2006] GRJ12#,KDJ12#..LHD ACCESSORY METER-FIELDMONITOR,BLACK,TRIM1# |
55401-60901-C0 |
US $991.54 |
||
| replacement | |||||
|
55401E
|
55401E
55401-60923-C0
Pad Sub-Assy, Instrument Panel Safety
[09.2002 - 05.2006] GRJ12#,KDJ12#..LHD ACCESSORY METER-FIELDMONITOR,BLACK,TRIM1# |
55401-60923-C0 |
— | ||
|
55401E
|
55401E
55401-60901-E0
Pad Sub-Assy, Instrument Panel Safety
[09.2002 - 05.2006] GRJ12#,KDJ12#..LHD ACCESSORY METER-FIELDMONITOR,SANDAL WOOD,TRIM0# |
55401-60901-E0 |
— | ||
| replacement | |||||
|
55401E
|
55401E
55401-60923-E0
Pad Sub-Assy, Instrument Panel Safety
[09.2002 - 05.2006] GRJ12#,KDJ12#..LHD ACCESSORY METER-FIELDMONITOR,SANDAL WOOD,TRIM0# |
55401-60923-E0 |
— | ||
| replacement | |||||
|
55401E
|
55401E
55401-60939-E0 Pad Sub-Assy, Instrument Panel Safety[09.2002 - 05.2006] GRJ12#,KDJ12#..LHD ACCESSORY METER-FIELDMONITOR,SANDAL WOOD,TRIM0# |
55401-60939-E0 |
US $1,063.67 |
||
|
55401E
|
55401E
55401-60915-C0
Pad Sub-Assy, Instrument Panel Safety
[05.2006 - 10.2007] GRJ12#,KDJ12#..LHD BLACK,TRIM1# |
55401-60915-C0 |
— | ||
| replacement | |||||
|
55401E
|
55401E
55401-60922-C0
Pad Sub-Assy, Instrument Panel Safety
[05.2006 - 10.2007] GRJ12#,KDJ12#..LHD BLACK,TRIM1# |
55401-60922-C0 |
— | ||
|
55401E
|
55401E
55401-60915-E0 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [05.2006 - 10.2007] GRJ12#,KDJ12#..LHD SANDAL WOOD,TRIM0# |
55401-60915-E0 |
US $992.99 |
||
| replacement | |||||
|
55401E
|
55401E
55401-60922-E0
Pad Sub-Assy, Instrument Panel Safety
[05.2006 - 10.2007] GRJ12#,KDJ12#..LHD SANDAL WOOD,TRIM0# |
55401-60922-E0 |
— | ||
|
55401E
|
55401E
55401-60916-C0
Pad Sub-Assy, Instrument Panel Safety
[05.2006 - 10.2007] GRJ12#,KDJ12#..LHD ACCESSORY METER-FIELDMONITOR,BLACK,TRIM1# |
55401-60916-C0 |
— | ||
| replacement | |||||
|
55401E
|
55401E
55401-60923-C0
Pad Sub-Assy, Instrument Panel Safety
[05.2006 - 10.2007] GRJ12#,KDJ12#..LHD ACCESSORY METER-FIELDMONITOR,BLACK,TRIM1# |
55401-60923-C0 |
— | ||
|
55401E
|
55401E
55401-60916-E0
Pad Sub-Assy, Instrument Panel Safety
[05.2006 - 10.2007] GRJ12#,KDJ12#..LHD ACCESSORY METER-FIELDMONITOR,SANDAL WOOD,TRIM0# |
55401-60916-E0 |
— | ||
| replacement | |||||
|
55401E
|
55401E
55401-60923-E0
Pad Sub-Assy, Instrument Panel Safety
[05.2006 - 10.2007] GRJ12#,KDJ12#..LHD ACCESSORY METER-FIELDMONITOR,SANDAL WOOD,TRIM0# |
55401-60923-E0 |
— | ||
| replacement | |||||
|
55401E
|
55401E
55401-60939-E0 Pad Sub-Assy, Instrument Panel Safety[05.2006 - 10.2007] GRJ12#,KDJ12#..LHD ACCESSORY METER-FIELDMONITOR,SANDAL WOOD,TRIM0# |
55401-60939-E0 |
US $1,063.67 |
||
|
55401E
|
55401E
55401-60922-C0
Pad Sub-Assy, Instrument Panel Safety
[10.2007 - 08.2009] GRJ12#,KDJ12#..LHD BLACK,TRIM1# |
55401-60922-C0 |
— | ||
|
55401E
|
55401E
55401-60922-E0
Pad Sub-Assy, Instrument Panel Safety
[10.2007 - 08.2009] GRJ12#,KDJ12#..LHD SANDAL WOOD,TRIM0# |
55401-60922-E0 |
— | ||
|
55401E
|
55401E
55401-60923-C0
Pad Sub-Assy, Instrument Panel Safety
[10.2007 - 08.2009] GRJ12#,KDJ12#..LHD ACCESSORY METER-FIELDMONITOR,BLACK,TRIM1# |
55401-60923-C0 |
— | ||
|
55401E
|
55401E
55401-60923-E0
Pad Sub-Assy, Instrument Panel Safety
[10.2007 - 08.2009] GRJ12#,KDJ12#..LHD ACCESSORY METER-FIELDMONITOR,SANDAL WOOD,TRIM0# |
55401-60923-E0 |
— | ||
| replacement | |||||
|
55401E
|
55401E
55401-60939-E0 Pad Sub-Assy, Instrument Panel Safety[10.2007 - 08.2009] GRJ12#,KDJ12#..LHD ACCESSORY METER-FIELDMONITOR,SANDAL WOOD,TRIM0# |
55401-60939-E0 |
US $1,063.67 |
||
|
55416A
|
55416A
55416-30140 Retainer, Meter Hood, No.1[09.2002 - 08.2009] GRJ12#,KDJ12# |
55416-30140 |
US $2.04 |
||
|
55417C
|
55417C
55417-60020 Bracket, Instrument Pad, No.3INSTRUMENT PAD, NO.3 [09.2002 -] GRJ12#,KDJ12#..LHD |
55417-60020 |
US $9.03 |
||
|
55457A
|
55457A
55457-35010 Spacer, Instrument Panel Safety Pad[09.2002 - 08.2009] GRJ12#,KDJ12# |
55457-35010 |
US $1.93 |
||
|
55606
|
55606
55606-60020-A0 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [09.2002 - 08.2006] GRJ12#,KDJ12#..LHD IVORY,TRIM0# |
55606-60020-A0 |
US $57.66 |
||
| replacement | |||||
|
55606
|
55606
55606-60060-B0
Cover Sub-Assy, Instrument Panel Under, No.1
[09.2002 - 08.2006] GRJ12#,KDJ12#..LHD IVORY,TRIM0# |
55606-60060-B0 |
— | ||
|
55606
|
55606
55606-60020-B0 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [09.2002 - 08.2006] GRJ12#,KDJ12#..LHD MD.GRAY,TRIM1# |
55606-60020-B0 |
US $47.90 |
||
| replacement | |||||
|
55606
|
55606
55606-60060-B0
Cover Sub-Assy, Instrument Panel Under, No.1
[09.2002 - 08.2006] GRJ12#,KDJ12#..LHD MD.GRAY,TRIM1# |
55606-60060-B0 |
— | ||
|
55606
|
55606
55606-60060-A0
Cover Sub-Assy, Instrument Panel Under, No.1
[08.2006 - 08.2009] GRJ12#,KDJ12#..LHD IVORY,TRIM0# |
55606-60060-A0 |
— | ||
| replacement | |||||
|
55606
|
55606
55606-60060-B0
Cover Sub-Assy, Instrument Panel Under, No.1
[08.2006 - 08.2009] GRJ12#,KDJ12#..LHD IVORY,TRIM0# |
55606-60060-B0 |
— | ||
|
55606
|
55606
55606-60060-B0
Cover Sub-Assy, Instrument Panel Under, No.1
[08.2006 - 08.2009] GRJ12#,KDJ12#..LHD MD.GRAY,TRIM1# |
55606-60060-B0 |
— | ||
|
55642
|
55642
55607-35050 Cover Sub-Assy, Instrument Panel Under, No.2INSTRUMENT PANEL UNDER, NO.2 [09.2002 - 08.2006] GRJ12#,KDJ12#..LHD |
55607-35050 |
US $59.26 |
||
| replacement | |||||
|
55642
|
55642
55607-60080
Cover Sub-Assy, Instrument Panel Under, No.2
[09.2002 - 08.2006] GRJ12#,KDJ12#..LHD |
55607-60080 |
— | ||
|
55642
|
55642
55607-60080
Cover Sub-Assy, Instrument Panel Under, No.2
[08.2006 -] GRJ12#,KDJ12#..LHD |
55607-60080 |
— | ||
|
73960A
|
73960A
73960-60090 Air Bag Assy, Instrument Panel Passenger W/o DoorINSTRUMENT PANEL PASSENGER W/O DOOR [09.2002 - 08.2009] GRJ12#,KDJ12#..LHD |
73960-60090 |
US $1,345.34 |
||
|
74598B
|
74598B
74598-20010 Label, Driver & Passenger Air Bag Caution[09.2002 -] GRJ12#,KDJ12# |
74598-20010 |
US $1.61 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.66 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
91635G0618
|
91635G0618
91635-G0618 BOLT WWASHER |
91635-G0618 |
US $1.97 |
||
|
9011908B72
|
9011908B72
90119-08B72 BOLT WWASHER |
90119-08B72 |
US $1.16 |
||
|
9011908C45
|
9011908C45
90119-08C45 New Genuine Part |
90119-08C45 |
US $2.91 |
||
|
9015950105
|
9015950105
90159-50105 SCREW |
90159-50105 |
from US $0.68 |
||
|
9017906323
|
9017906323
90179-06323 Nut |
90179-06323 |
US $1.97 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9338116010
|
9338116010
93381-16010 New Genuine Part |
93381-16010 |
US $1.38 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.78 |
||
|
9433415000
|
9433415000
94334-15000 New Genuine Part |
94334-15000 |
US $1.02 |
||
