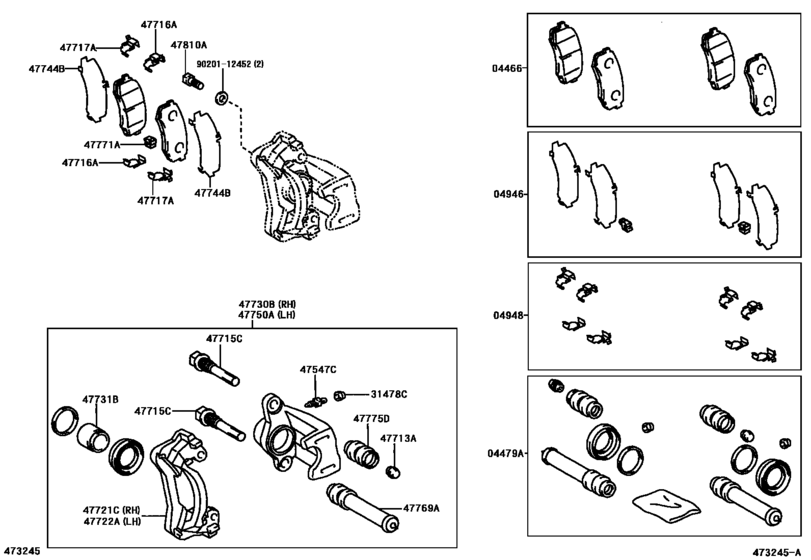

Rear Disc Brake Caliper & Dust Cover ([09.2002 - ] (0209- )) Diagram Toyota LAND CRUISER PRADO
- Year
- 2004 - 2009
- Sales region
- Europe
- Frame
- KDJ120
- grade
- GX
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 120
- From
- 08.2004
- To
- 08.2009
- Gear Shift Type
- 5FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04466
|
04466
04466-60080 Pad Kit, Disc Brake, Rear[08.2004 - 01.2009] GRJ12#,KDJ12#..LHD MARK NBK PN524-EE,GERMANY SPEC; GRJ120..RHD MARK NBK PN524-EE,INDIA SPEC |
04466-60080 |
from US $79.81 |
||
|
04466
|
04466
04466-60090 Pad Kit, Disc Brake, Rear[09.2002 - 08.2009] GRJ12#,KDJ12# MARK SUMITOMO PS549 |
04466-60090 |
from US $100.21 |
||
|
04479A
|
04479A
04479-60030 Cylinder Kit, Disc Brake, Rear[09.2002 -] GRJ120,KDJ120;GRJ125,KDJ125..4FC,5F |
04479-60030 |
from US $20.16 |
||
|
04946
|
04946
04946-30100 Shim Kit, Anti Squeal(For Rear Disc Brake)[09.2002 -] GRJ12#,KDJ12# |
04946-30100 |
from US $13.44 |
||
|
04948
|
04948
04947-22050 Fitting Kit, Disc Brake, Front[09.2002 -] GRJ12#,KDJ12# |
04947-22050 |
from US $24.30 |
||
|
31478C
|
31478C
31478-30010 Bleeder Plug Cap[09.2002 -] GRJ12#,KDJ12# |
31478-30010 |
from US $1.52 |
||
|
47547C
|
47547C
47547-12030 Plug, Air Vent[09.2002 -] GRJ12#,KDJ12# |
47547-12030 |
from US $4.89 |
||
|
47713A
|
47713A
90950-01301 Plug, Hole(For Rear Disc Brake Cylinder)[09.2002 -] GRJ12#,KDJ12# |
90950-01301 |
from US $1.09 |
||
|
47715C
|
47715C
47715-22010 Pin, Main(For Front Disc Brake Cylinder Slide)[09.2002 -] GRJ12#,KDJ12# |
47715-22010 |
from US $9.17 |
||
|
47716A
|
47716A
47716-22010 Plate, Pad Support, No.1(For Front Disc Brake)[09.2002 -] GRJ12#,KDJ12# |
47716-22010 |
from US $2.87 |
||
|
47717A
|
47717A
47717-22010 Plate, Pad Support, No.2(For Front Disc Brake)[09.2002 -] GRJ12#,KDJ12# |
47717-22010 |
from US $2.91 |
||
|
47721C
|
47721C
47721-60020 Mounting, Rear Disc Brake Cylinder, Rh[09.2002 -] GRJ12#,KDJ12# |
47721-60020 |
from US $62.60 |
||
|
47722A
|
47722A
47722-60020 Mounting, Rear Disc Brake Cylinder, Lh[09.2002 -] GRJ12#,KDJ12# |
47722-60020 |
from US $61.89 |
||
|
47730B
|
47730B
47730-34030 Cylinder Assy, Rear Disc Brake, Rh[09.2002 -] GRJ120,KDJ120;GRJ125,KDJ125..4FC,5F |
47730-34030 |
from US $259.68 |
||
|
47731B
|
47731B
47731-60020 Piston, Rear Disc Brake[09.2002 -] GRJ120,KDJ120;GRJ125,KDJ125..4FC,5F |
47731-60020 |
from US $18.64 |
||
|
47744B
|
47744B
47744-60010 Shim, Anti-Squeal(For Rear Disc Brake)[09.2002 -] GRJ12#,KDJ12# |
47744-60010 |
from US $3.05 |
||
|
47750A
|
47750A
47750-34030 Cylinder Assy, Disc Brake, Rear Lh[09.2002 -] GRJ120,KDJ120;GRJ125,KDJ125..4FC,5F |
47750-34030 |
from US $259.82 |
||
|
47769A
|
47769A
47769-22010 Bush, Cylinder Slide, No.1(For Front Disc Brake)[09.2002 -] GRJ12#,KDJ12# |
47769-22010 |
from US $2.26 |
||
|
47771A
|
47771A
47771-22030 Plate, Pad Wear Indicator, No.1[09.2002 -] GRJ12#,KDJ12# |
47771-22030 |
from US $2.51 |
||
|
47775D
|
47775D
47775-22010 Boot, Bush Dust(For Front Disc Brake)[09.2002 -] GRJ12#,KDJ12# |
47775-22010 |
from US $1.99 |
||
|
47810A
|
47810A
90101-12167 Bolt, Hexagon(For Rear Caliper)[09.2002 - 08.2009] GRJ12#,KDJ12# |
90101-12167 |
from US $1.15 |
||
|
9020112452
|
9020112452
90201-12452 Nut(For Backing Plate To Steering Knuckle Setting) |
90201-12452 |
from US $1.11 |
