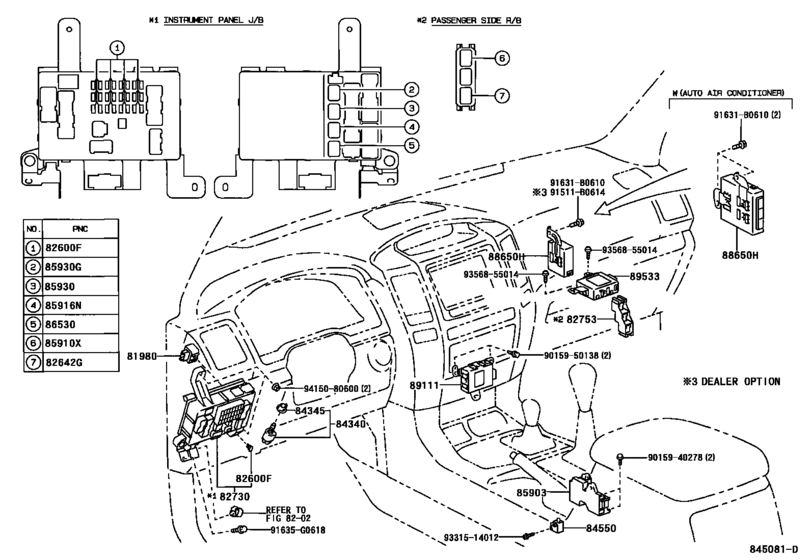

Switch & Relay & Computer ([09.2002 - ] COWL (0209- )LHD) Diagram Toyota LAND CRUISER PRADO
- Year
- 2004 - 2009
- Sales region
- Europe
- Frame
- KDJ120
- grade
- GX
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 120
- From
- 08.2004
- To
- 08.2009
- Gear Shift Type
- 5FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-50030 Flasher Assy, Turn Signal[09.2002 -] GRJ12#,KDJ12# |
81980-50030 |
from US $54.07 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[09.2002 - 08.2009] GRJ12#,KDJ12# 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[09.2002 - 08.2009] GRJ12#,KDJ12# 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[09.2002 - 08.2009] GRJ12#,KDJ12# 15A,MINI FUSE |
90982-09010 |
from US $0.49 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[09.2002 - 08.2009] GRJ12#,KDJ12# 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[09.2002 - 08.2009] GRJ12#,KDJ12# 25A,MINI FUSE |
90982-09012 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[09.2002 - 08.2009] GRJ12#,KDJ12# 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82642G
|
82642G
90987-02027 Relay[08.2004 -] GRJ12#,KDJ12#..LHD DENMARK SPEC; GRJ120,KDJ120..LHD SWEDEN SPEC; GRJ120,KDJ120..LHD FINLAND SPEC; GRJ120,KDJ120..LHD ICELAND SPEC; KDJ120..LHD NORWAY SPEC |
90987-02027 |
from US $47.11 |
||
|
82730
|
82730
82730-60110 Block Assy, Instrument Panel JunctionINSTRUMENT PANEL JUNCTION [09.2002 -] GRJ12#,KDJ12#..LHD |
82730-60110 |
US $646.46 |
||
|
82730
|
82730
82730-60130 Block Assy, Instrument Panel JunctionINSTRUMENT PANEL JUNCTION [09.2002 -] GRJ12#,KDJ12#..LHD DENMARK SPEC; GRJ120,KDJ120..LHD SWEDEN SPEC; GRJ120,KDJ120..LHD FINLAND SPEC; GRJ120,KDJ120..LHD ICELAND SPEC; KDJ120..LHD NORWAY SPEC |
82730-60130 |
US $646.46 |
||
|
82753
|
82753
82753-60010 Block, Passenger Side Relay[09.2002 - 08.2009] GRJ12#;KDJ12#..4FC,5F;KDJ12#..LHD..(5FC,6F) |
82753-60010 |
US $14.41 |
||
|
84340
|
84340
84340-69015 Switch Assy, Stop Lamp[09.2002 - 08.2009] GRJ12#,KDJ12# |
84340-69015 |
from US $30.99 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[09.2002 - 08.2009] GRJ12#,KDJ12# |
84345-51010 |
from US $3.45 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[09.2002 - 08.2009] GRJ12#,KDJ12#..LHD |
84550-16060 |
from US $19.32 |
||
|
85903
|
85903
85903-60020 Computer Sub-Assy, Shift Lock ControlSHIFT LOCK CONTROL [09.2002 - 08.2009] GRJ12#,KDJ12#..LHD..ATM |
85903-60020 |
US $160.74 |
||
|
85910X
|
85910X
90987-02027 Relay[08.2004 -] GRJ12#,KDJ12# OUTSIDE RR VIEW MIRROR-REMOTE CONTROLER W/RETRA COLOR W/HEATER |
90987-02027 |
from US $47.11 |
||
|
85916N
|
85916N
90987-02027 Relay[08.2004 -] GRJ12#,KDJ12# |
90987-02027 |
from US $47.11 |
||
|
85930
|
85930
90987-02027 Relay[08.2004 -] GRJ12#,KDJ12# W/MOON ROOF |
90987-02027 |
from US $47.11 |
||
|
85930G
|
85930G
90987-02027 Relay[08.2004 -] GRJ12#,KDJ12# |
90987-02027 |
from US $47.11 |
||
|
86530
|
86530
90987-02027 Relay[08.2004 -] GRJ12#,KDJ12# |
90987-02027 |
from US $47.11 |
||
|
88650H
|
88650H
88650-60681
Amplifier Assy, Air Conditioner
[08.2004 - 08.2005] KDJ12#..LHD AIR CONDITIONER-SINGLE AUTO&AUDIO(FOR OVERSEAS MARKET)-03'EMV-W 9SP; KDJ120..LHD AIR CONDITIONER-DUAL AUTO&AUDIO(FOR OVERSEAS MARKET)-03'EMV-W 9SP |
88650-60681 |
— | ||
|
88650H
|
88650H
88650-60682
Amplifier Assy, Air Conditioner
[08.2005 - 08.2009] KDJ12#..LHD AIR CONDITIONER-SINGLE AUTO&AUDIO(FOR OVERSEAS MARKET)-03'EMV-W 9SP; KDJ120..LHD AIR CONDITIONER-DUAL AUTO&AUDIO(FOR OVERSEAS MARKET)-03'EMV-W 9SP |
88650-60682 |
— | ||
|
88650H
|
88650H
88650-60730
Amplifier Assy, Air Conditioner
[09.2002 - 08.2005] KDJ12#..LHD AIR CONDITIONER-SINGLE MANUAL; KDJ12#..LHD AIR CONDITIONER-SINGLE MANUAL AFTER SET |
88650-60730 |
— | ||
|
88650H
|
88650H
88650-60731
Amplifier Assy, Air Conditioner
[08.2005 - 08.2009] KDJ12#..LHD AIR CONDITIONER-SINGLE MANUAL; KDJ12#..LHD AIR CONDITIONER-SINGLE MANUAL AFTER SET |
88650-60731 |
— | ||
|
89111
|
89111
89111-60020 Computer, Network Gateway[08.2004 -] GRJ12#,KDJ12# AUDIO(FOR OVERSEAS MARKET)-03'EMV-W 9SP |
89111-60020 |
US $244.61 |
||
|
89533
|
89533
89530-60290
Computer, 4 Wheel Drive Control
[09.2002 -] GRJ12#,KDJ12#..LHD ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
89530-60290 |
— | ||
|
89533
|
89533
89530-60320
Computer, 4 Wheel Drive Control
[09.2002 -] GRJ12#,KDJ12#..LHD DIFFERENTIAL LOCK-WITH |
89530-60320 |
— | ||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
91631B0610
|
91631B0610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.90 |
||
|
91635G0618
|
91635G0618
91635-G0618 BOLT WWASHER |
91635-G0618 |
US $1.97 |
||
|
9015940278
|
9015940278
90159-40278 New Genuine Part |
90159-40278 |
US $0.73 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.25 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
